Parking Brake (Rear Disc System): Inspection

For inspection procedure, see Fig 1.

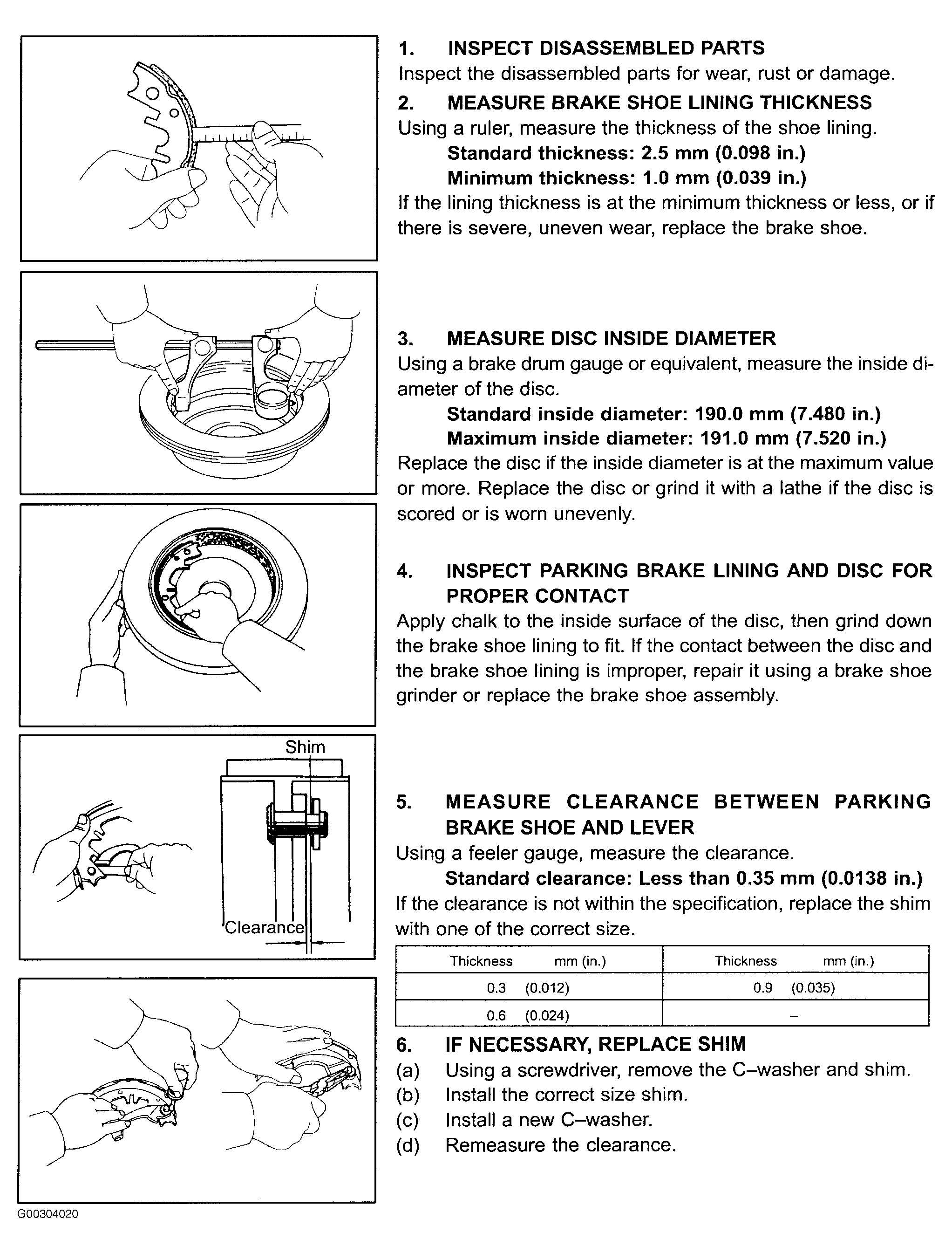

Fig 1: Rear Disc Brake Parking Brake Inspection Procedure

G00304020

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
