Parking Brake (Rear Disc System): Disassembly

For disassembly procedure, see Fig 1 and Fig 2 . For component view, see Fig 3.

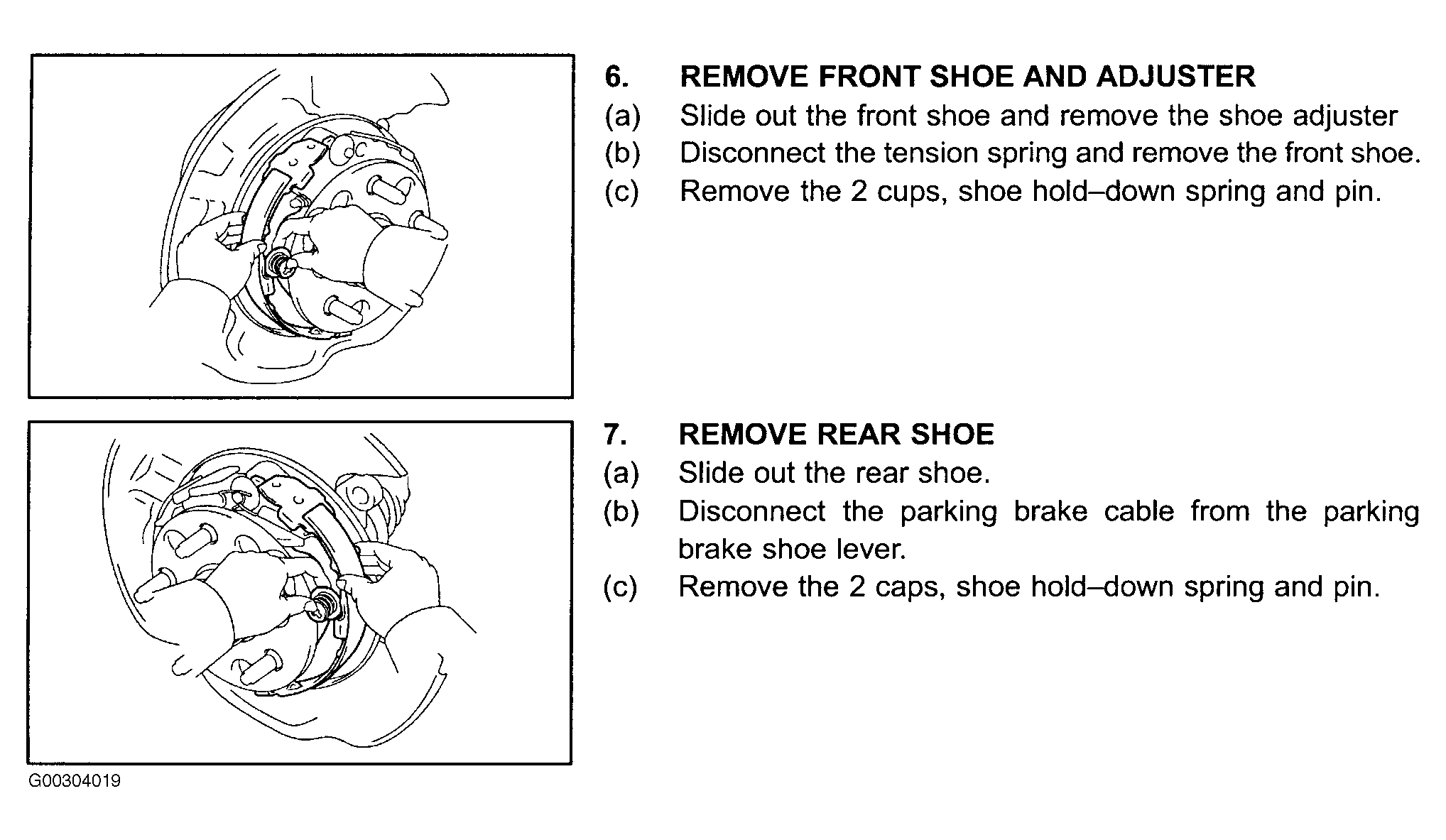

Fig 1: Rear Disc Brake Parking Brake Removal Procedure (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

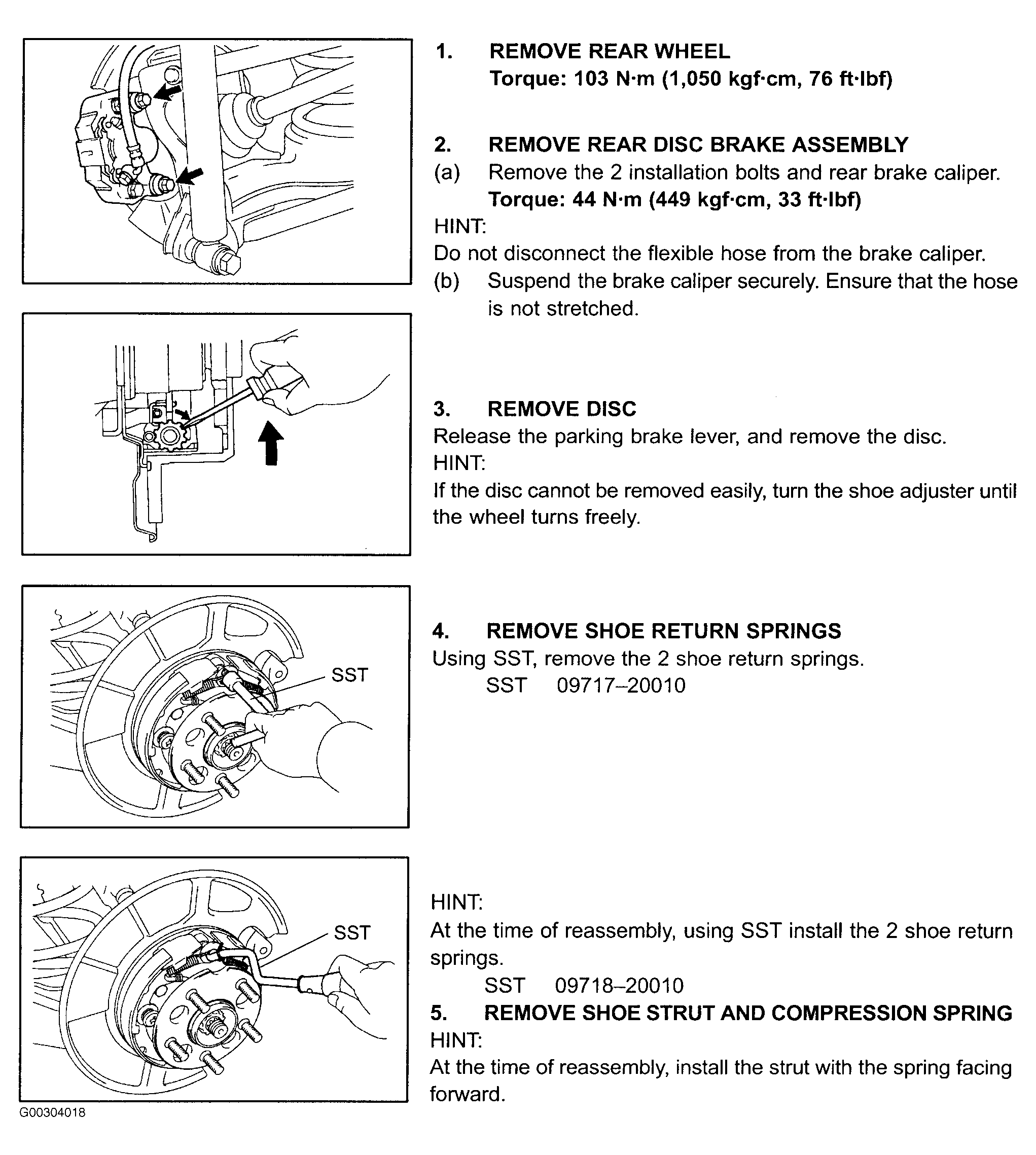

Fig 2: Rear Disc Brake Parking Brake Removal Procedure (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

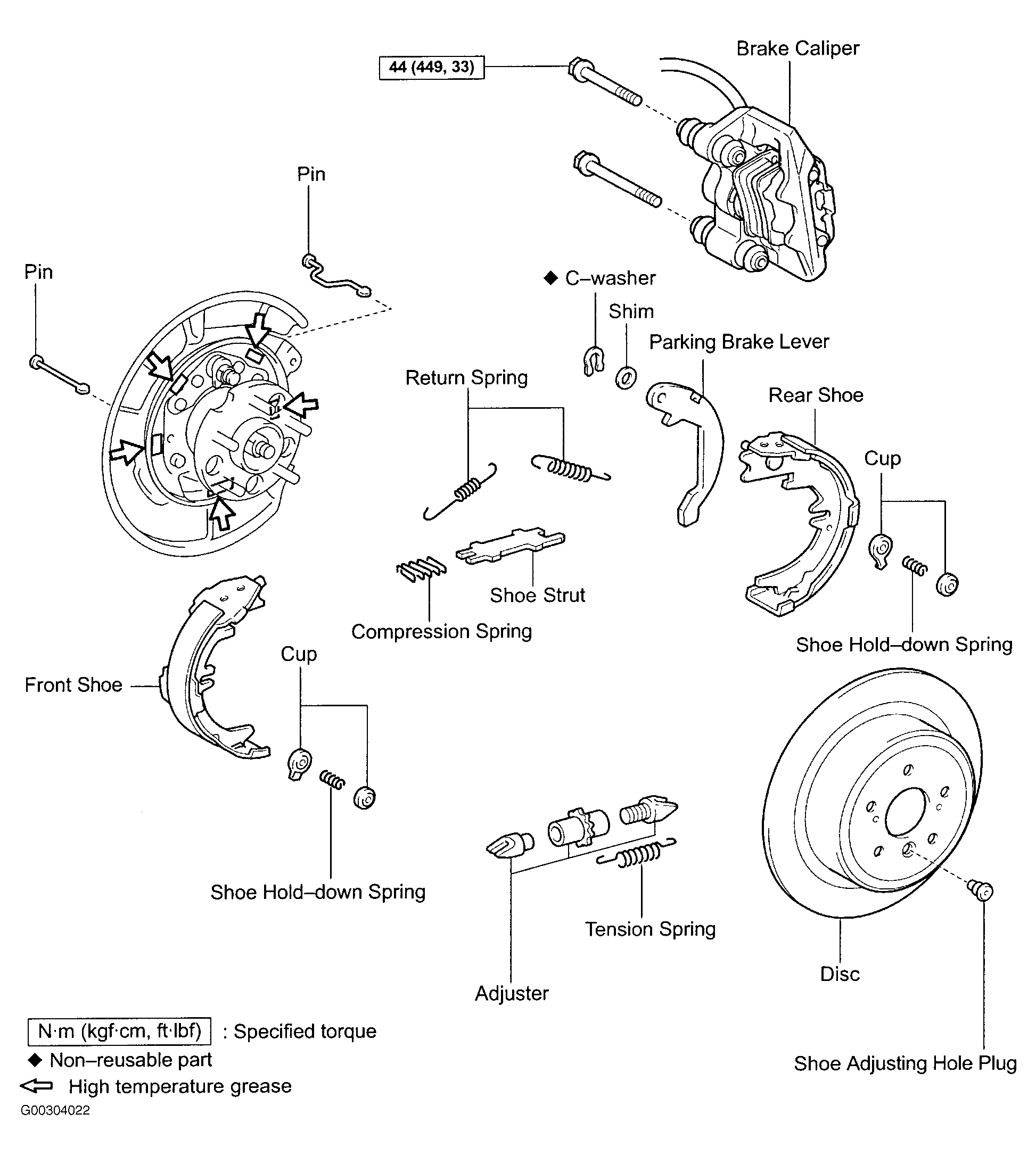

Fig 3: Rear Disc Brake System Parking Brake Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
