Rear Brake Caliper

NOTE: For overhaul of rear brake calipers, see Fig 1 and Fig 2 . Install caliper components in reverse of removal procedure. Fill and bleed system. See BLEEDING BRAKE SYSTEM .

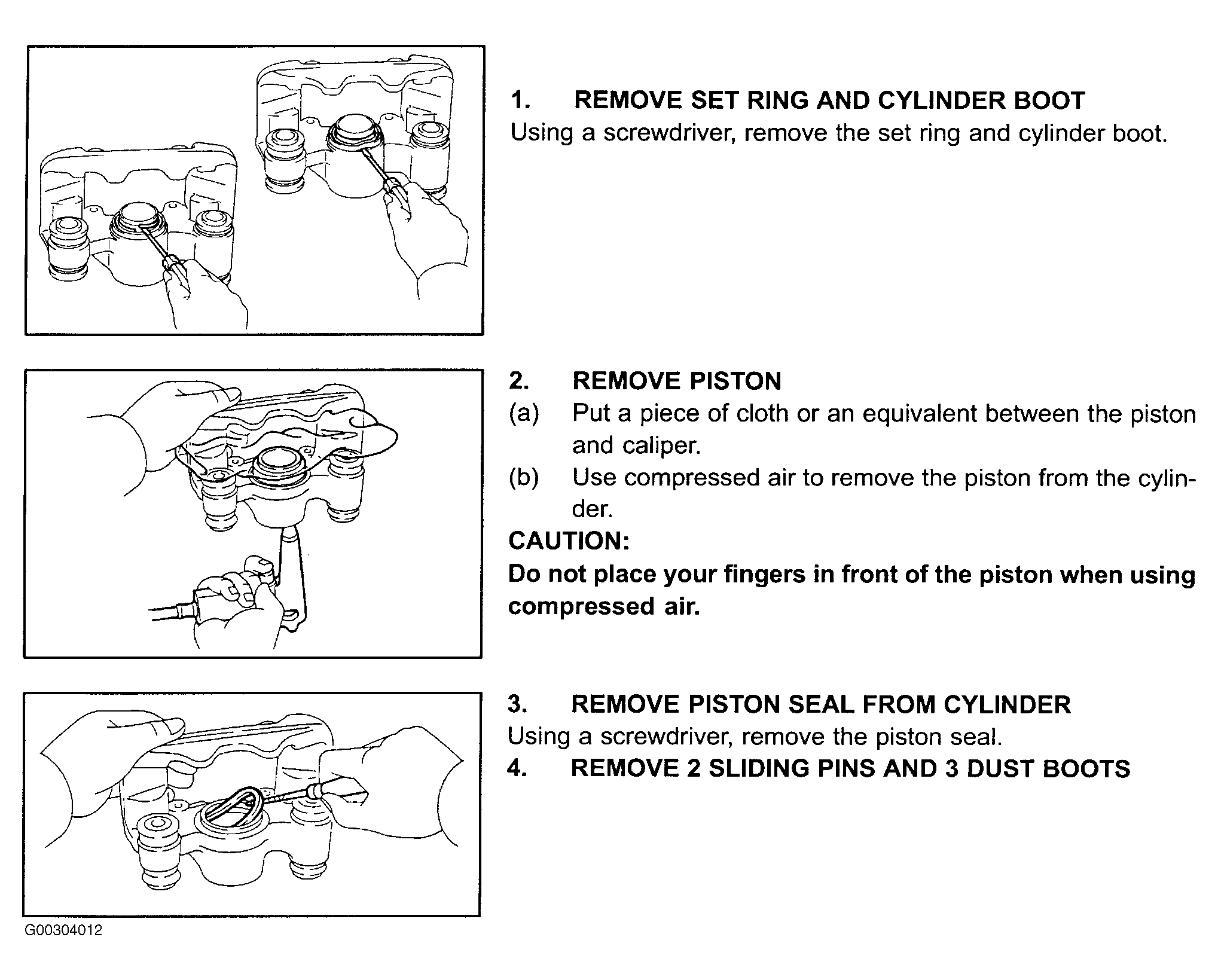

Fig 1: Rear Brake Caliper Overhaul Procedure
G00304012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

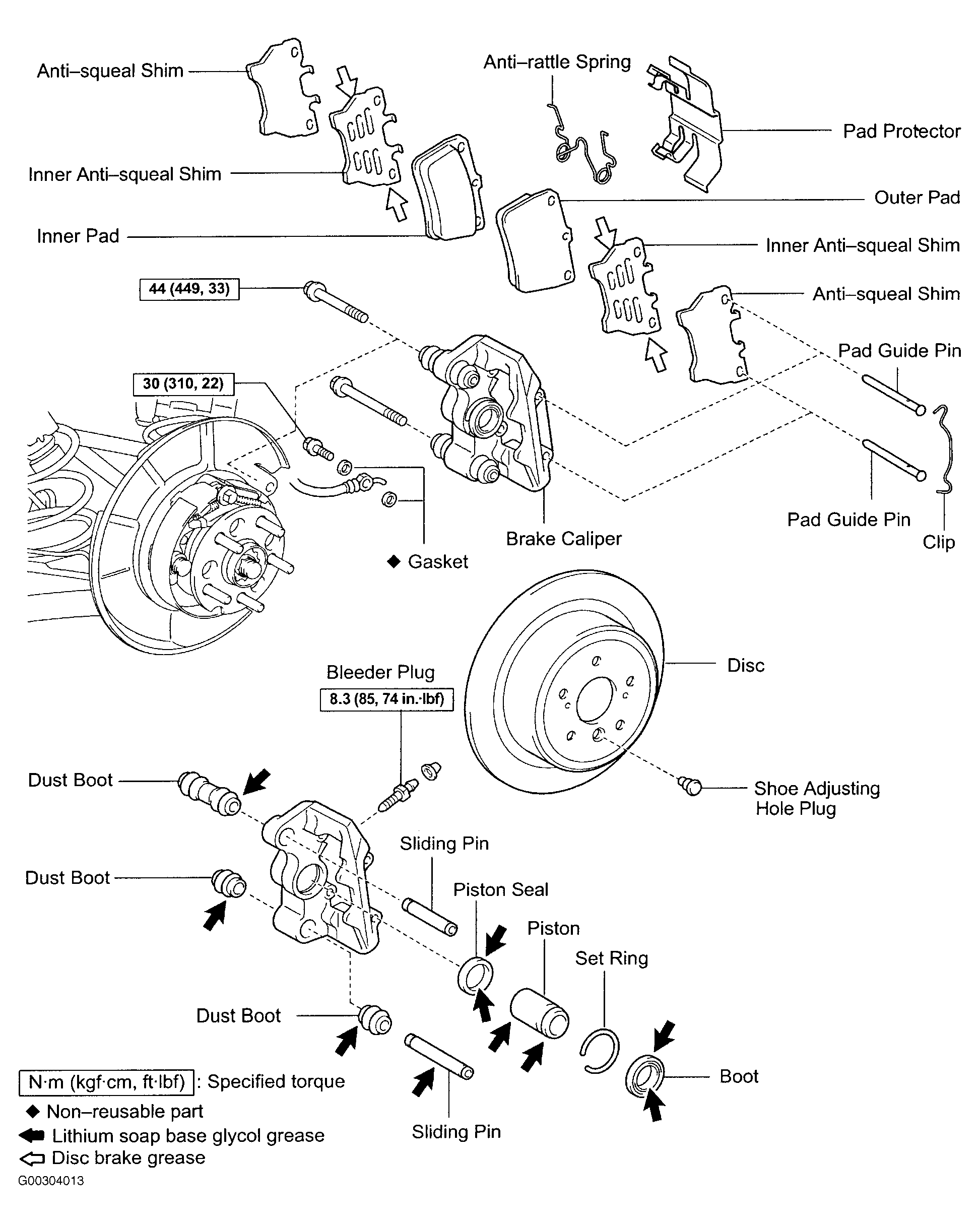

Fig 2: Locating Rear Brake Caliper Components
G00304013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
