Brake Master Cylinder Sub-Assembly

WARNING: Read service precautions before proceeding with any service procedure. See SERVICE PRECAUTIONS .

For removal and installation procedure, see Fig 1-Fig 6 . For component view, see Figure. To complete installation, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Bleed brake system. See BLEEDING BRAKE SYSTEM . Check reservoir fluid level. Clear DTC.

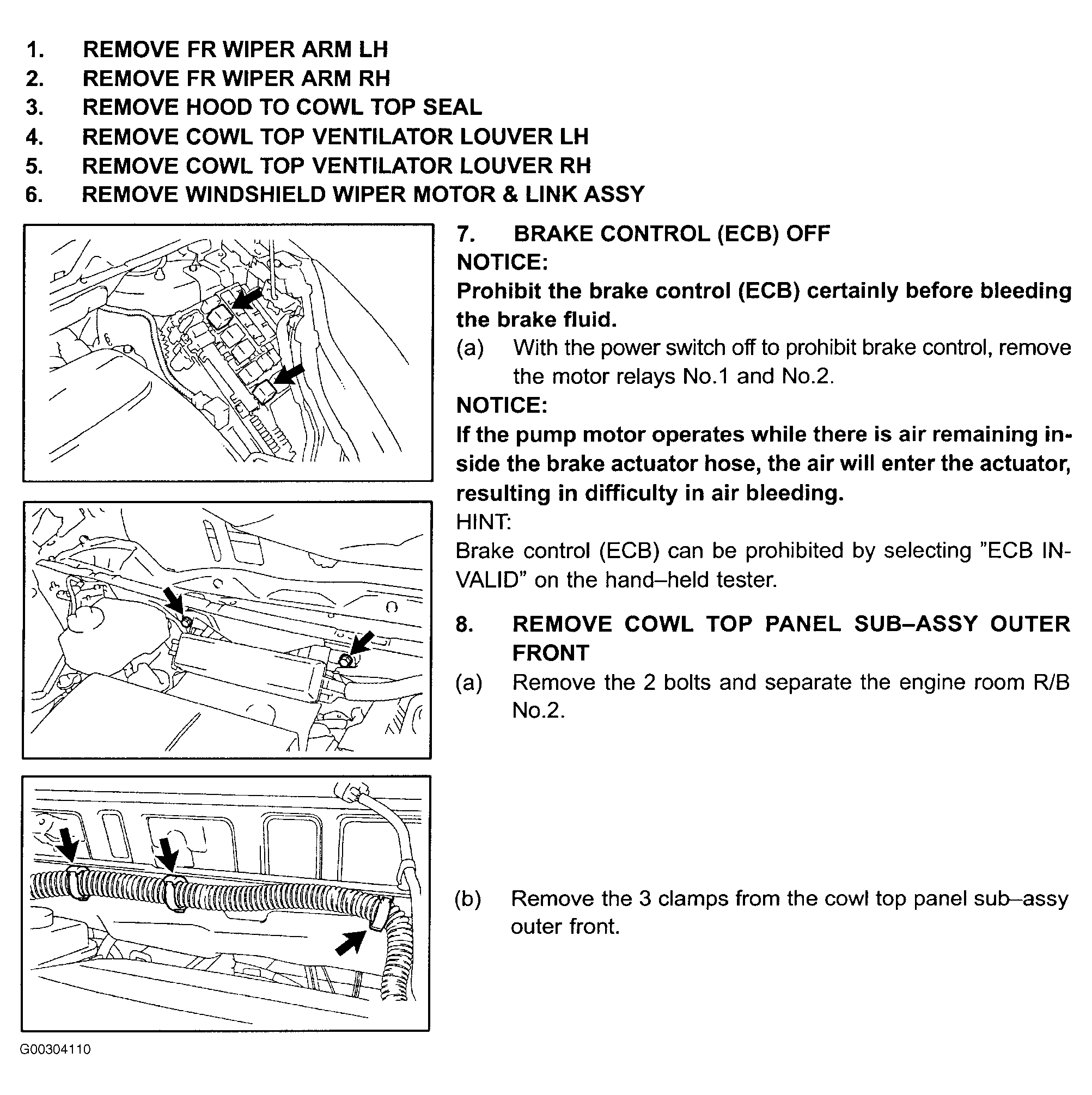

Fig 1: Brake Master Cylinder Removal & Installation Procedure (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

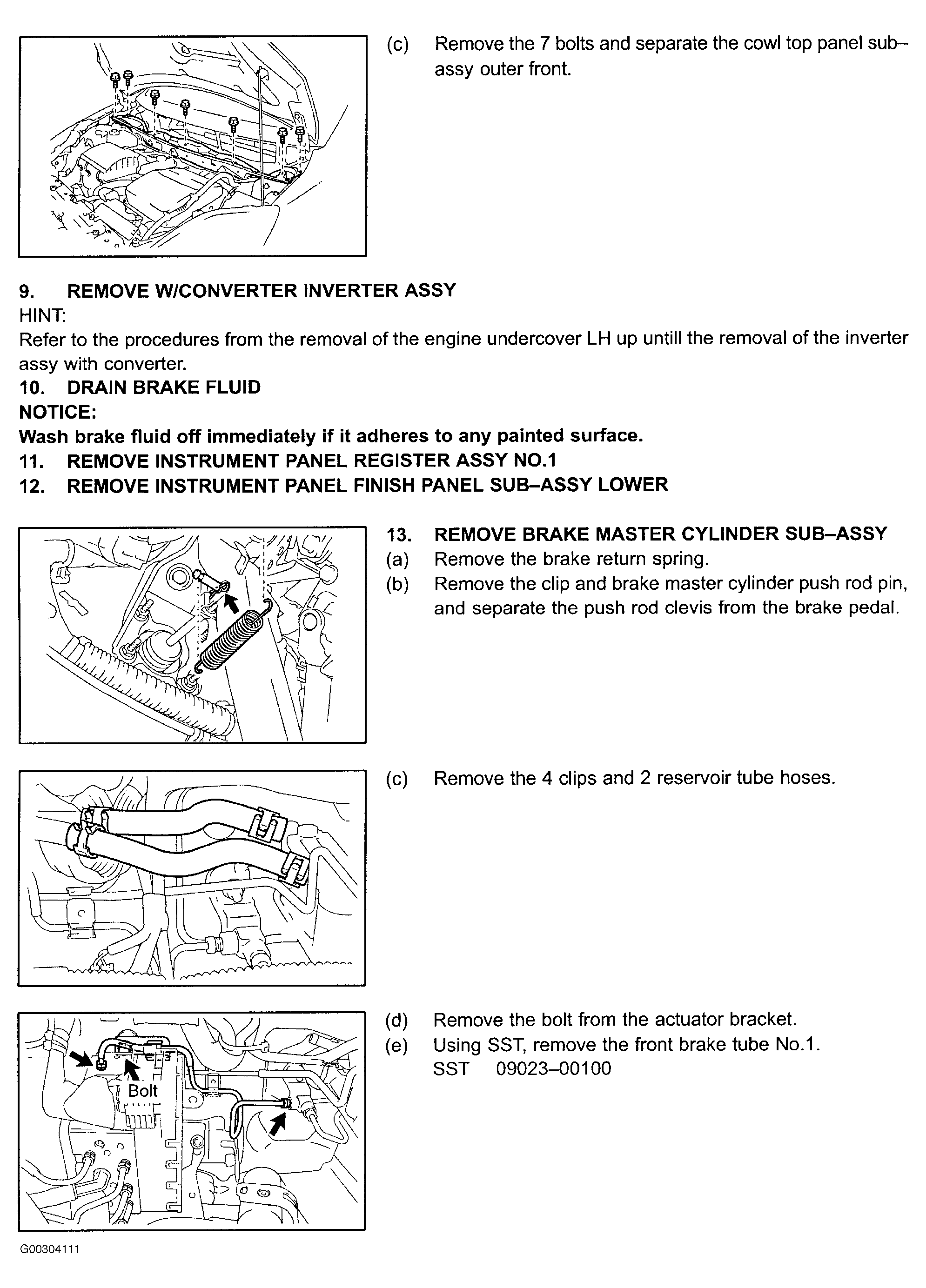

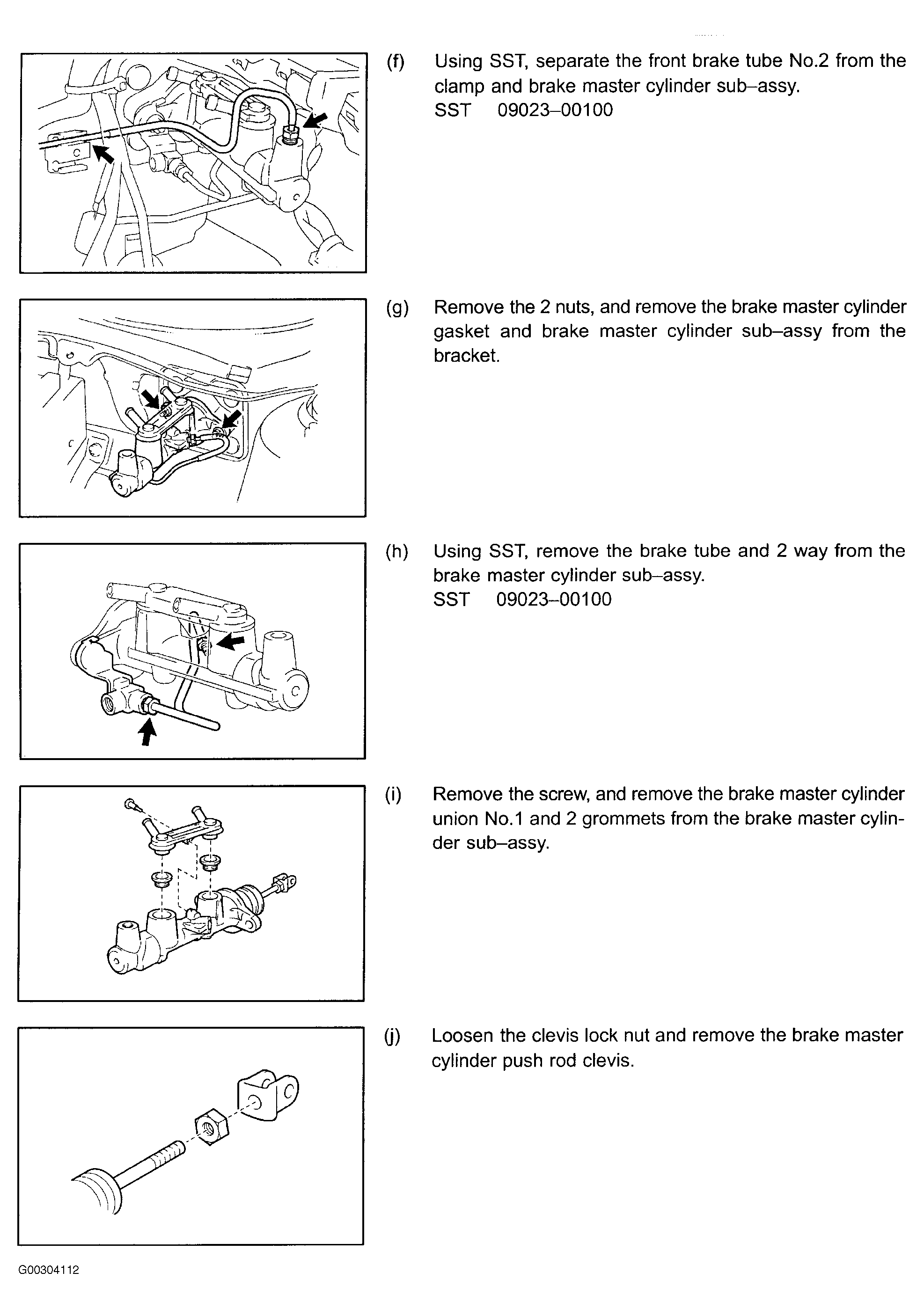

Fig 2: Brake Master Cylinder Removal & Installation Procedure (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

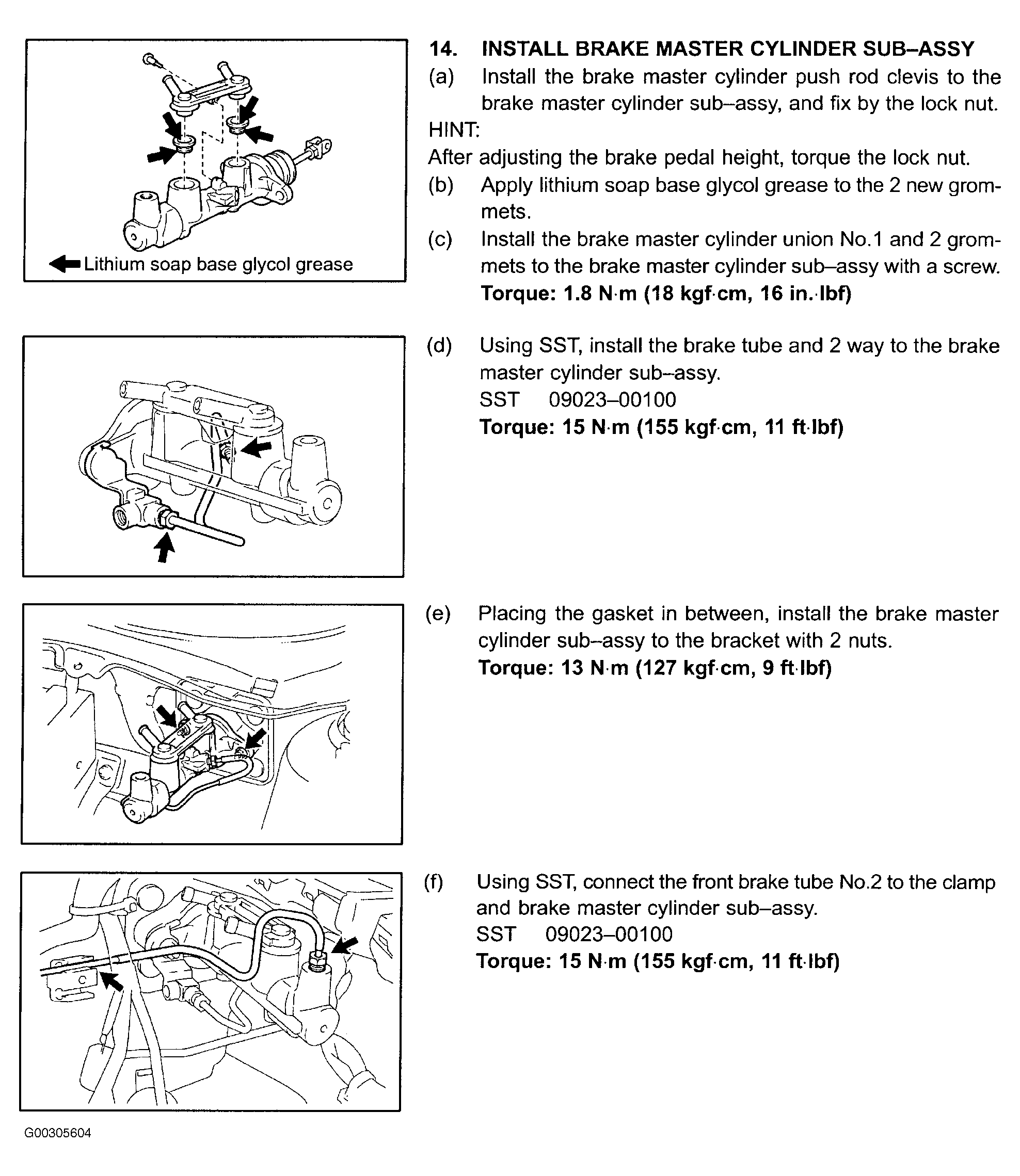

Fig 3: Brake Master Cylinder Removal & Installation Procedure (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

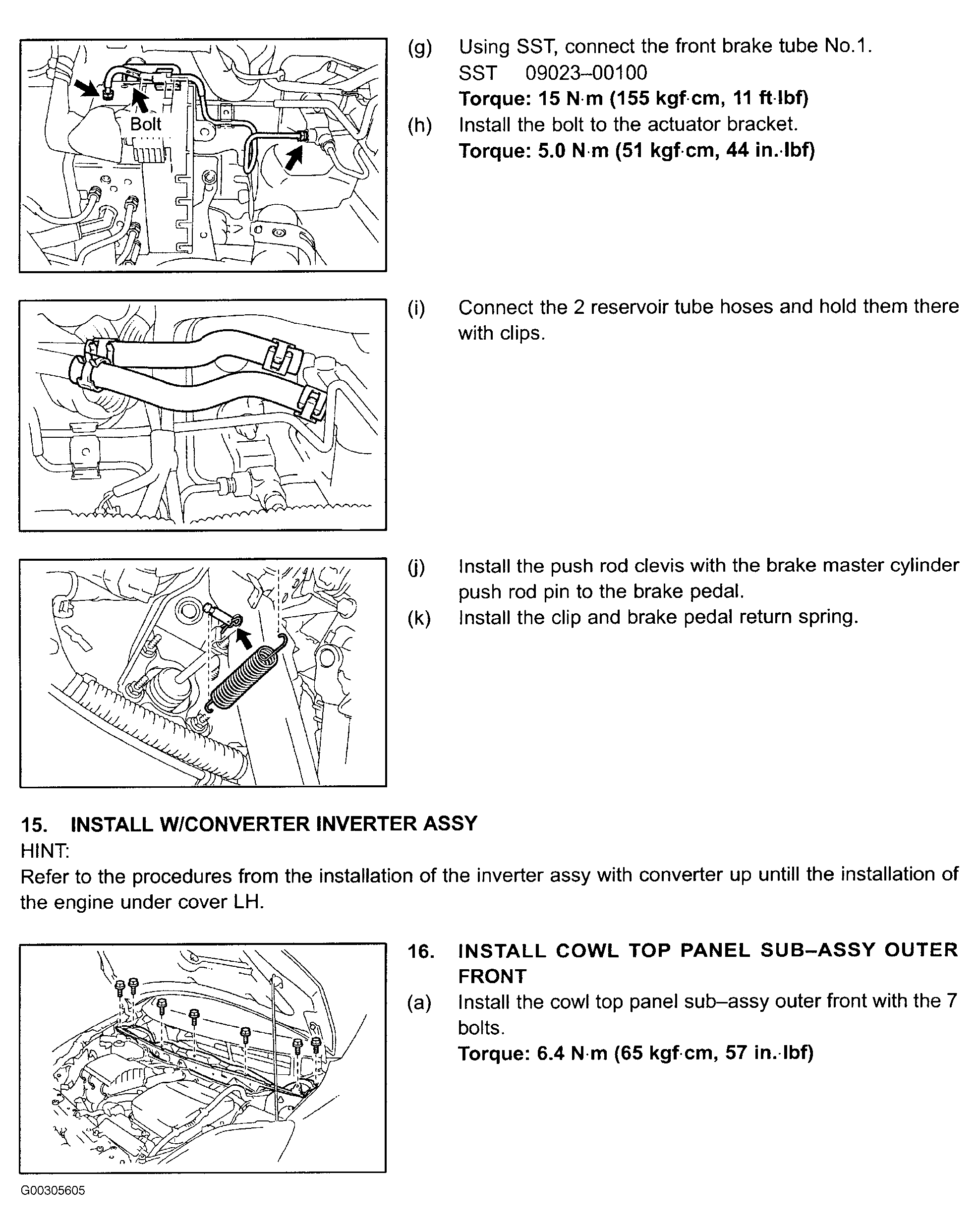

Fig 4: Brake Master Cylinder Removal & Installation Procedure (4 Of 6)

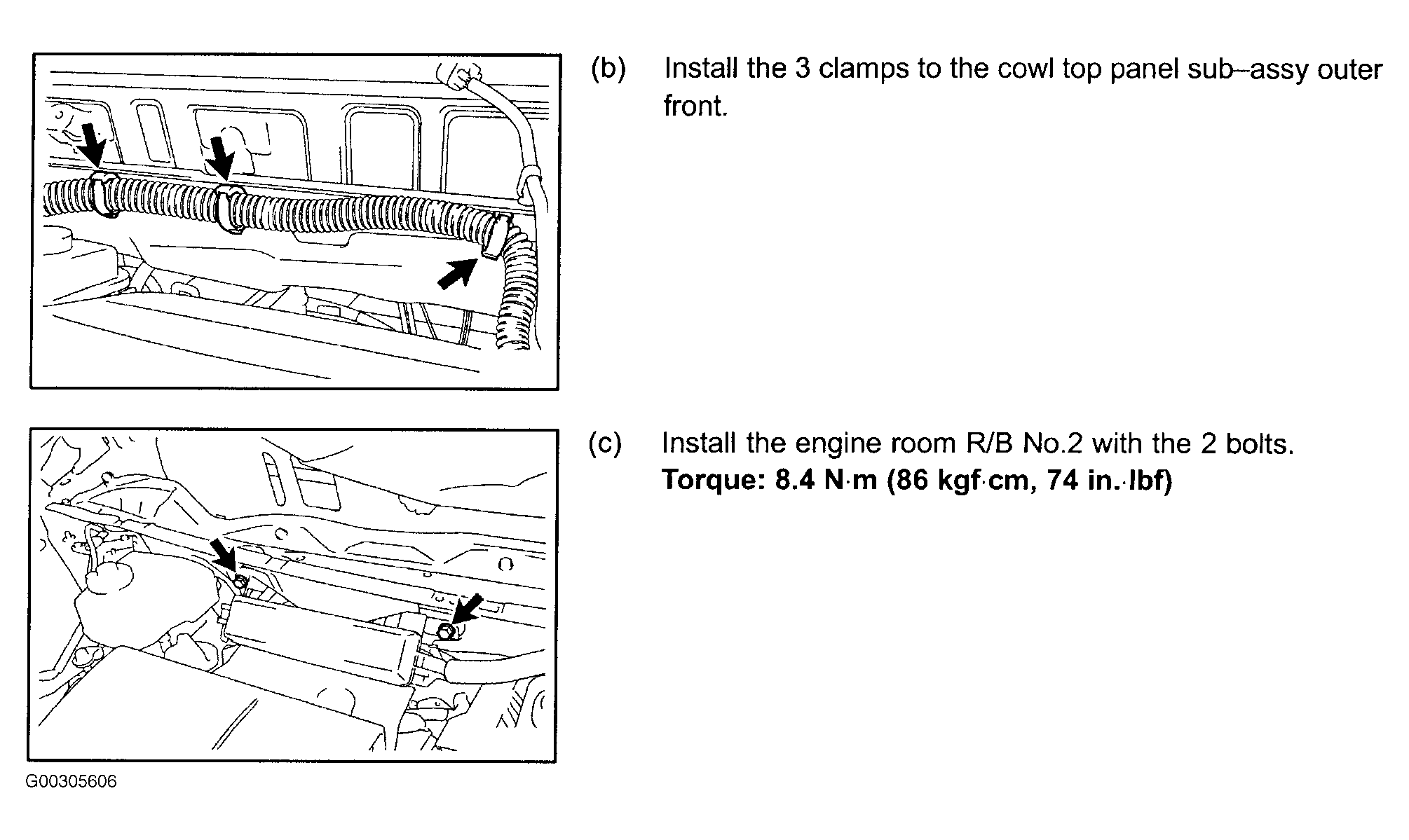

Fig 5: Brake Master Cylinder Removal & Installation Procedure (5 Of 6)

Fig 6: Brake Master Cylinder Removal & Installation Procedure (6 Of 6)
