Bleeding Procedures

WARNING: Read service precautions before proceeding with any service procedure. See SERVICE PRECAUTIONS .

For procedure, see Fig 1-Fig 12 . For ABS motor relay locations, see Fig 13.

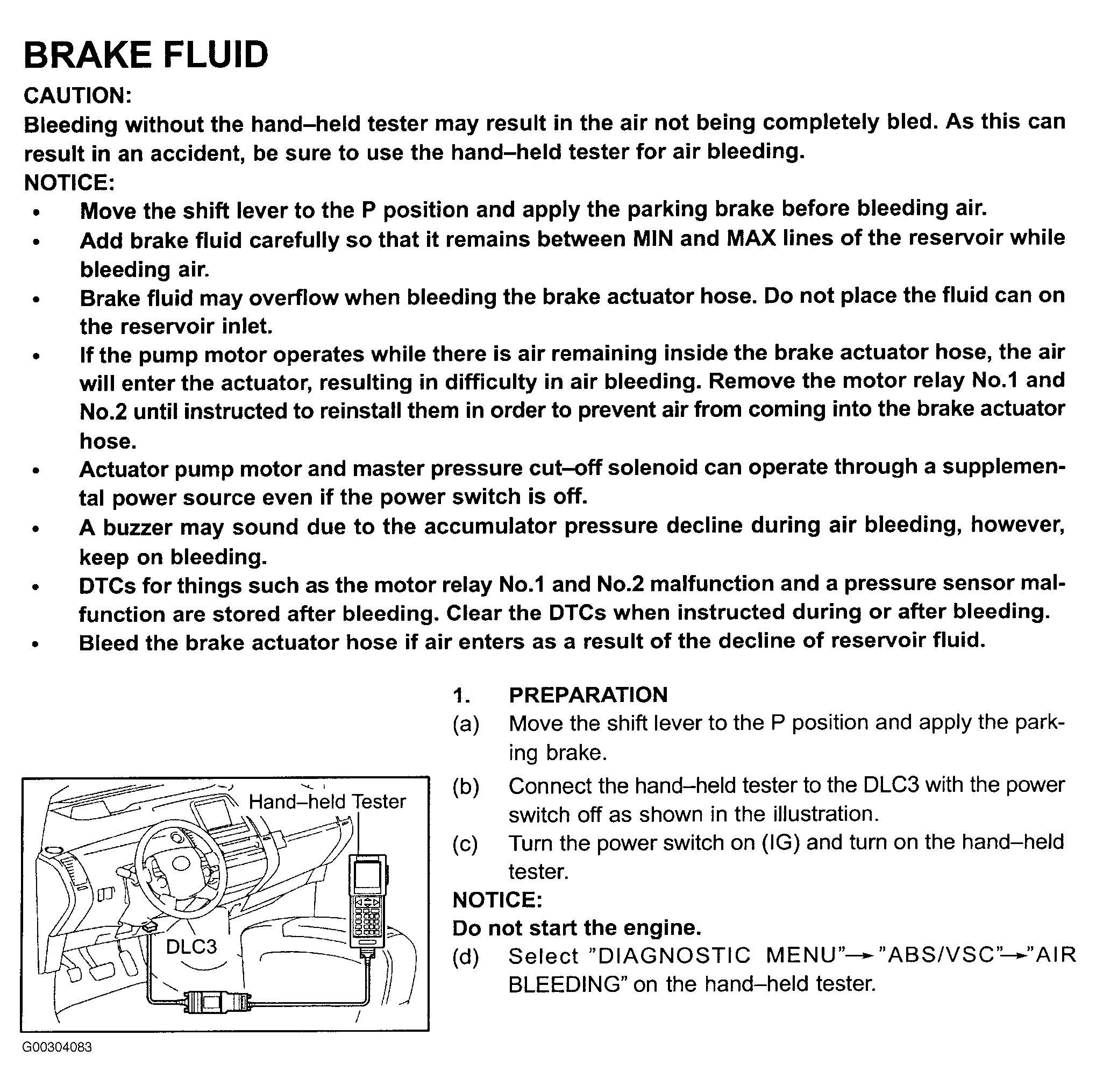

Fig 1: Brake Fluid Bleeding Procedure (1 Of 12)

G00304083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

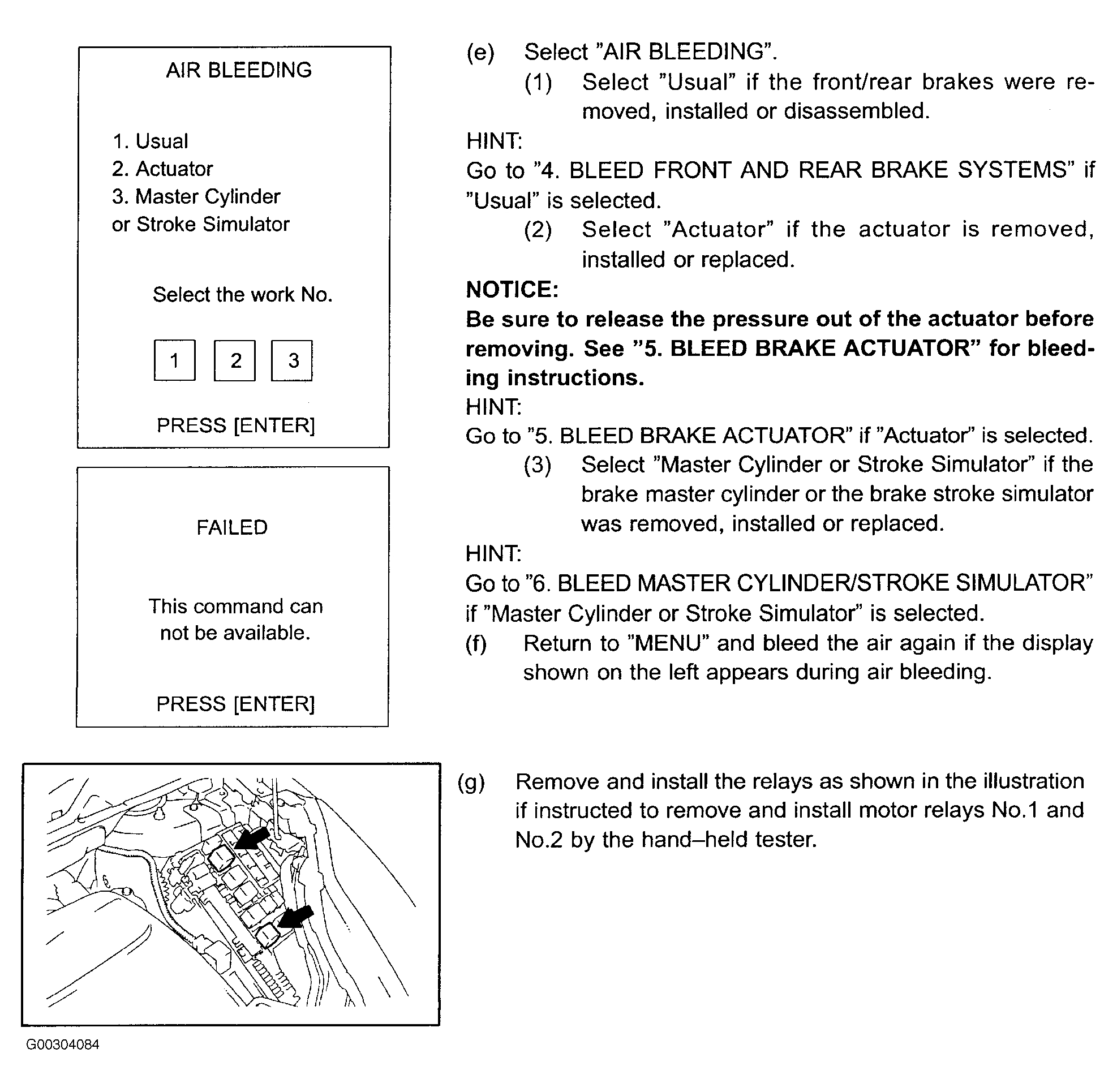

Fig 2: Brake Fluid Bleeding Procedure (2 Of 12)

G00304084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

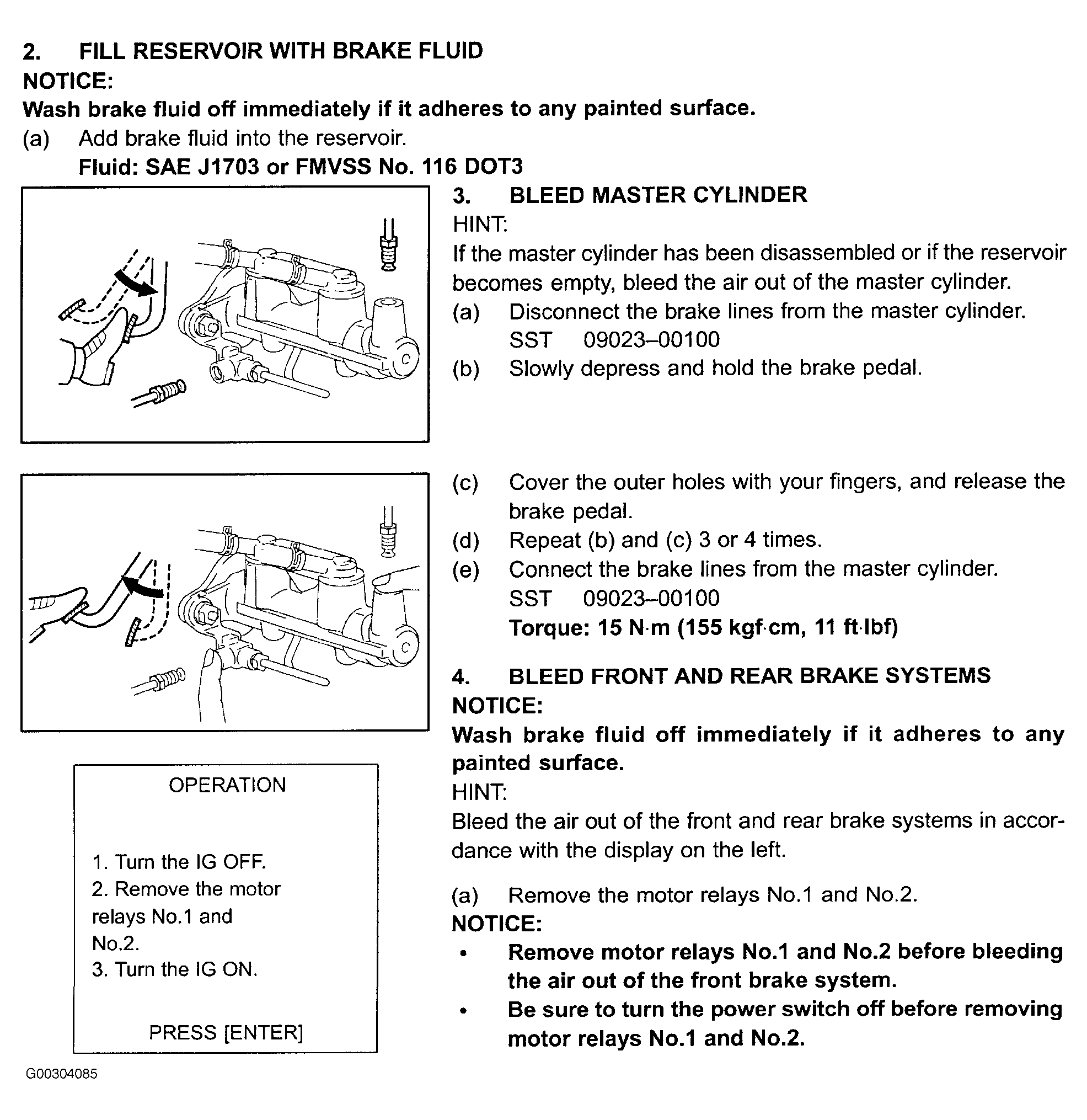

Fig 3: Brake Fluid Bleeding Procedure (3 Of 12)

G00304085

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Brake Fluid Bleeding Procedure (4 Of 12)

G00304086

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

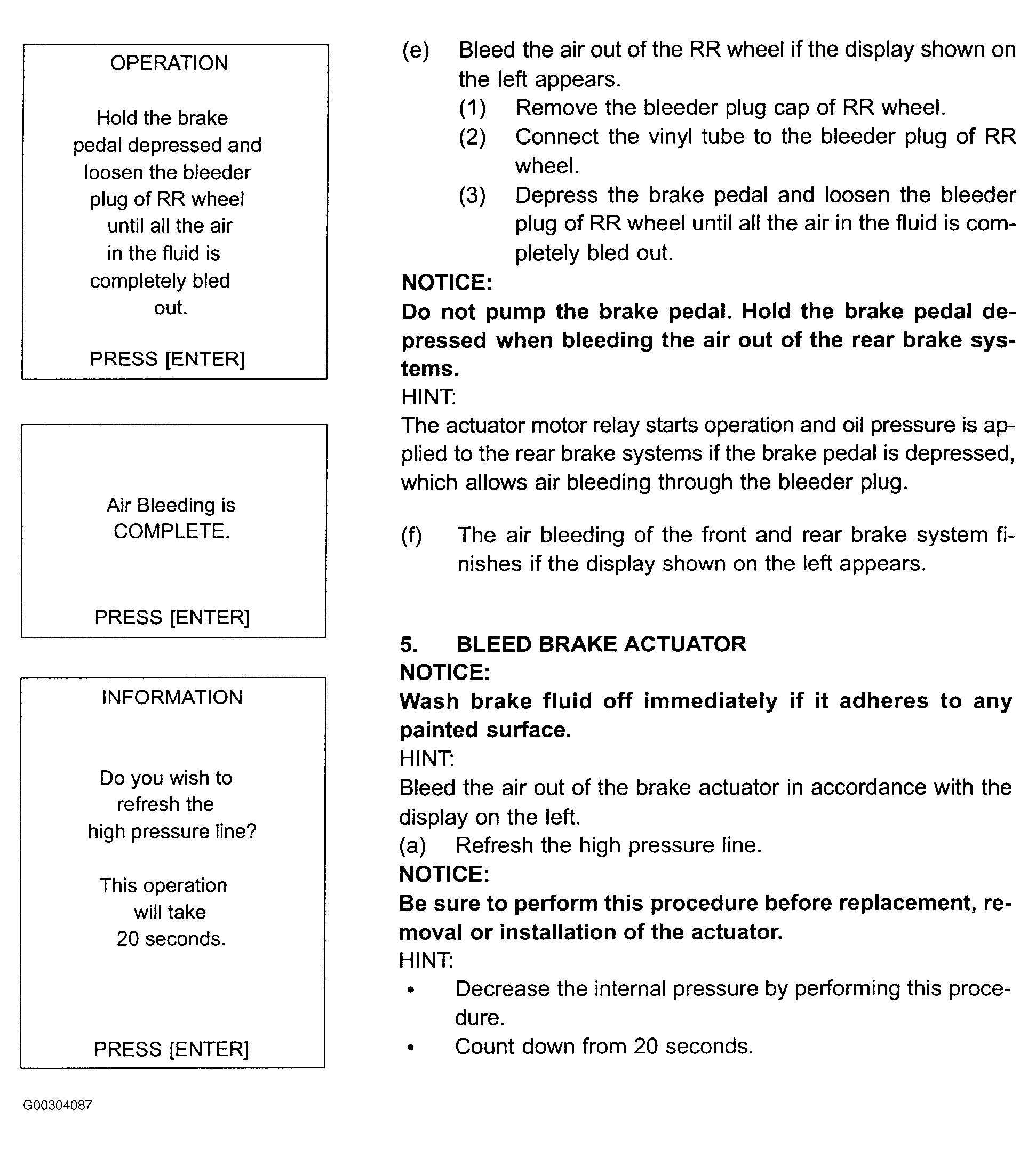

Fig 5: Brake Fluid Bleeding Procedure (5 Of 12)

G00304087

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

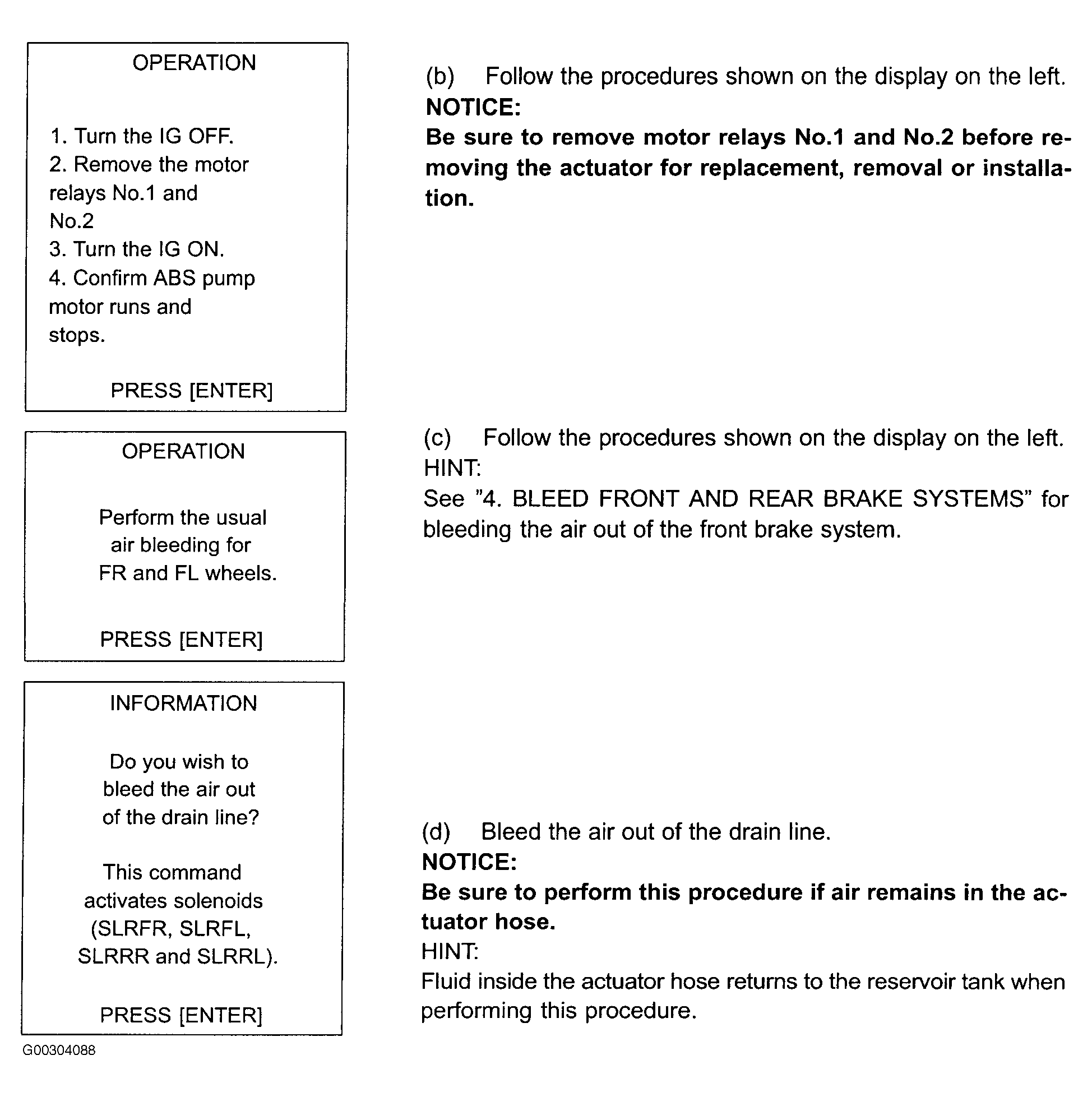

Fig 6: Brake Fluid Bleeding Procedure (6 Of 12)

G00304088

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

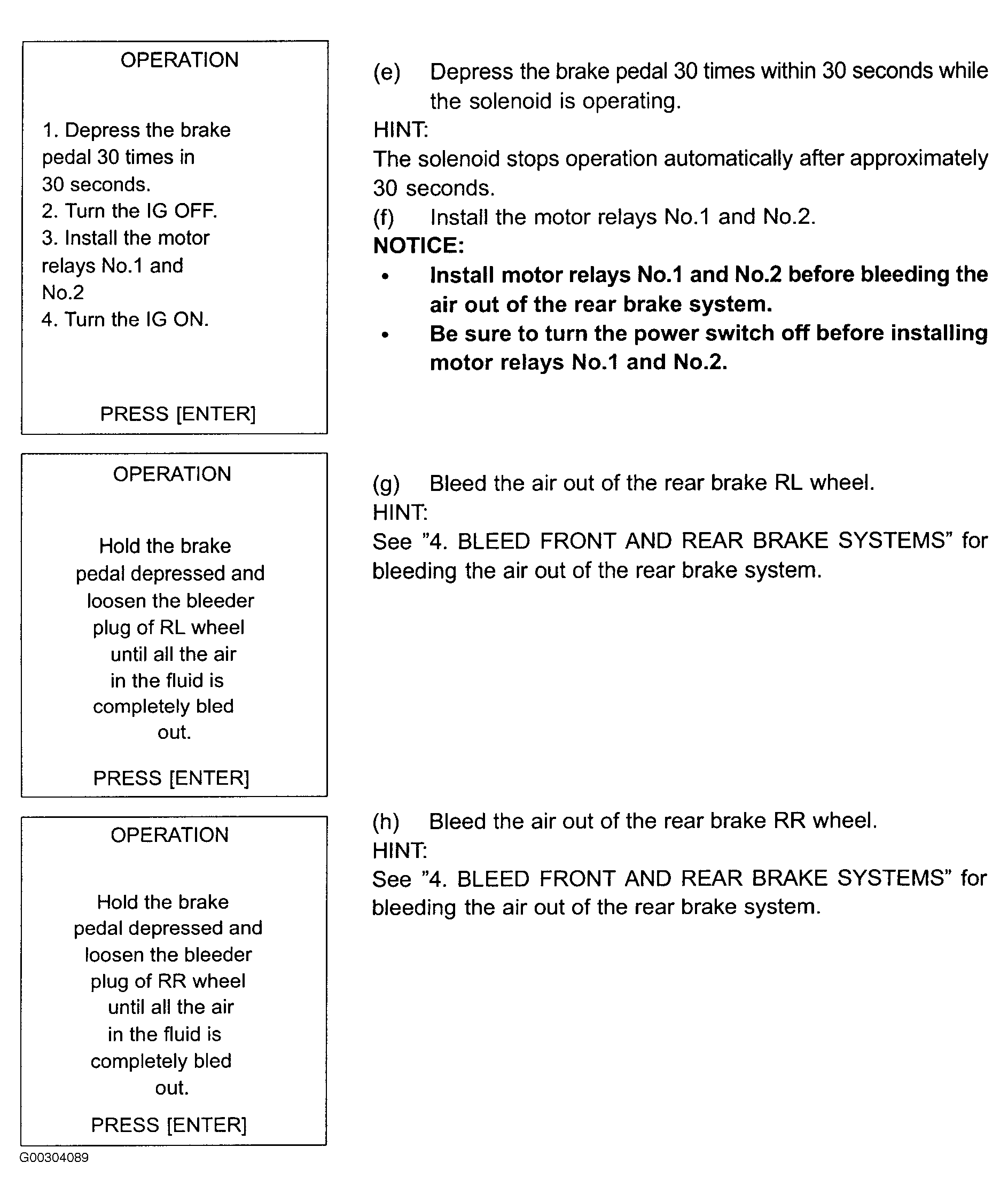

Fig 7: Brake Fluid Bleeding Procedure (7 Of 12)

G00304089

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

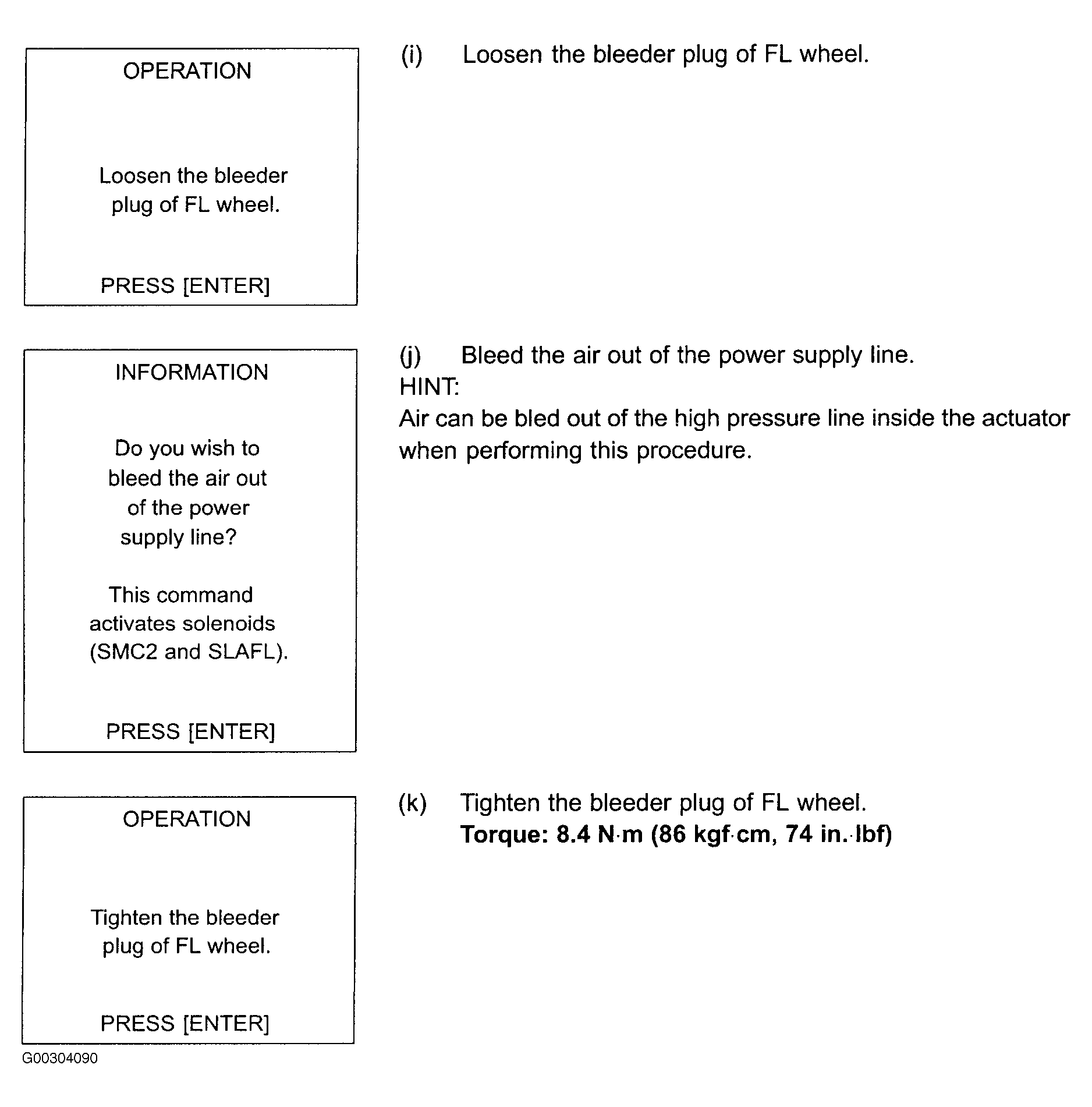

Fig 8: Brake Fluid Bleeding Procedure (8 Of 12)

G00304090

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Brake Fluid Bleeding Procedure (9 Of 12)

G00304091

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

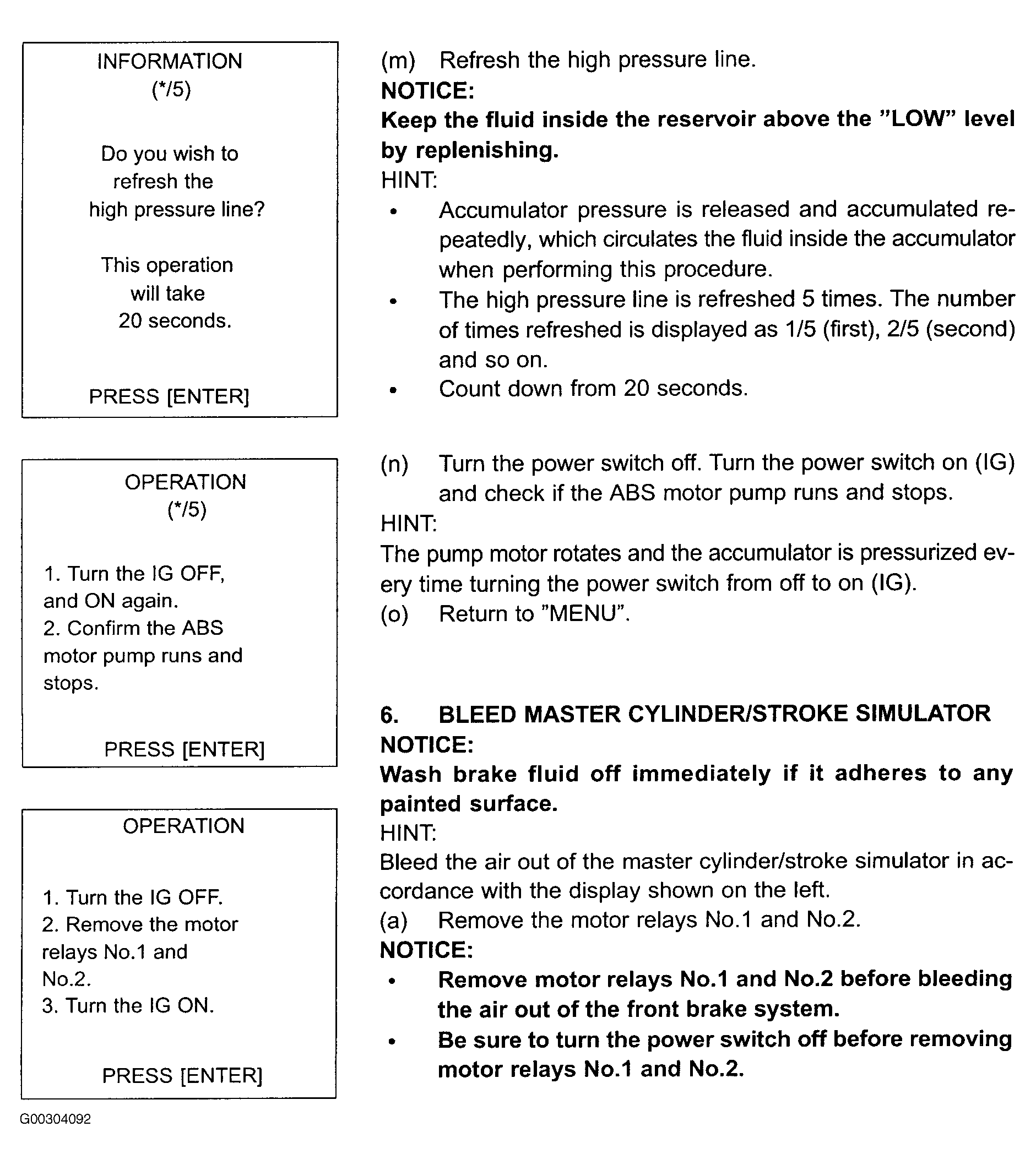

Fig 10: Brake Fluid Bleeding Procedure (10 Of 12)

G00304092

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

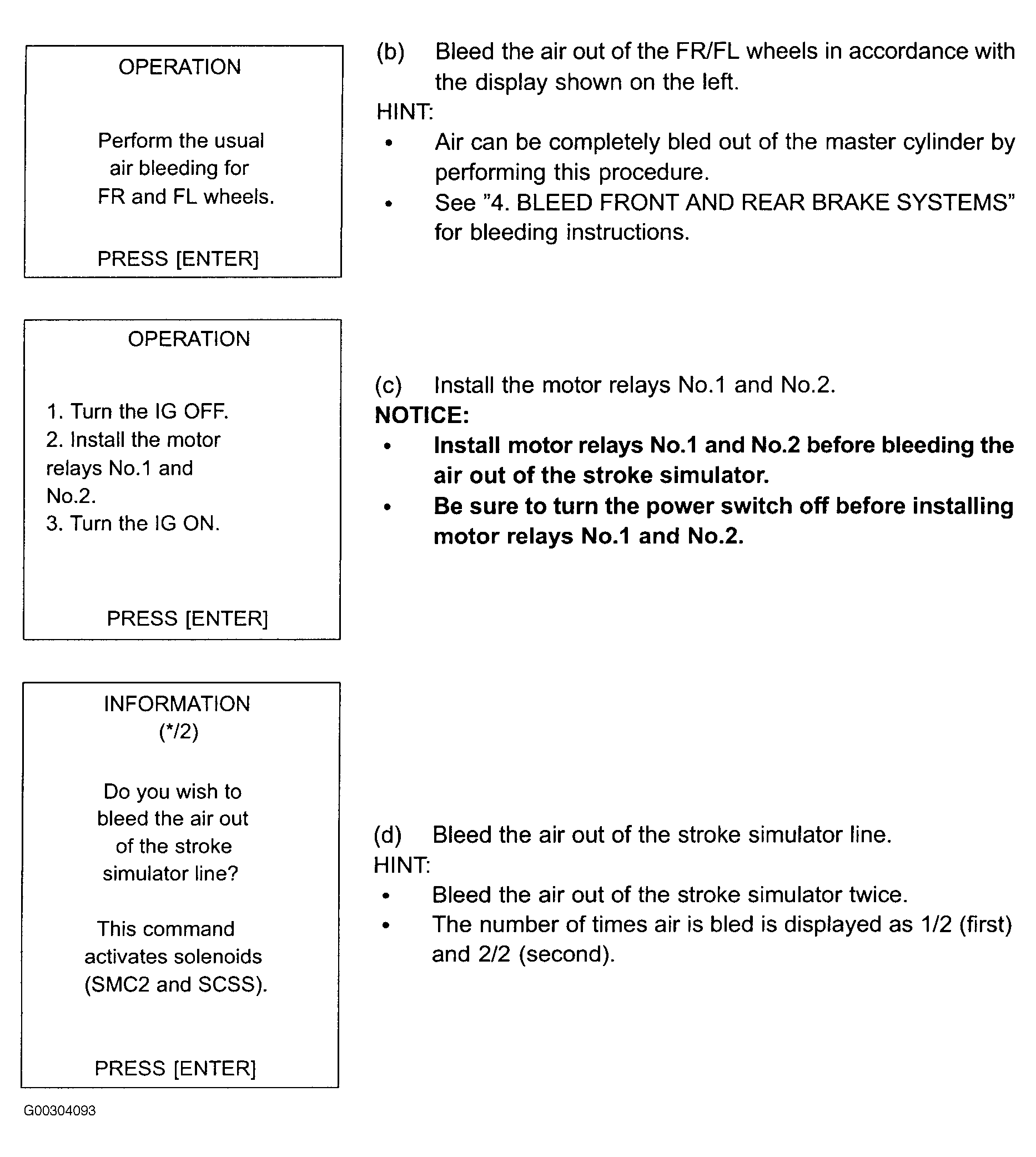

Fig 11: Brake Fluid Bleeding Procedure (11 Of 12)

G00304093

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

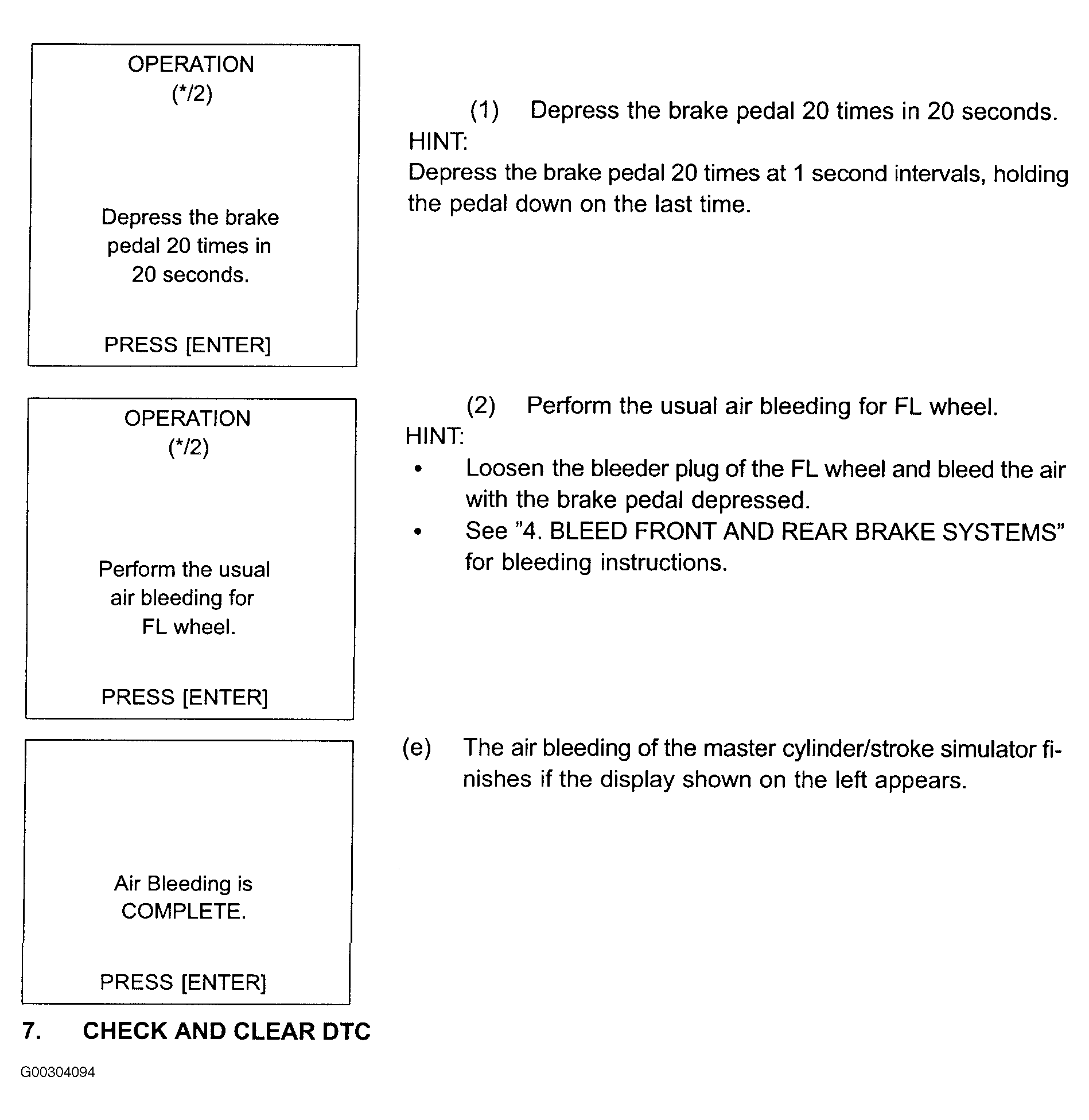

Fig 12: Brake Fluid Bleeding Procedure (12 Of 12)

G00304094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

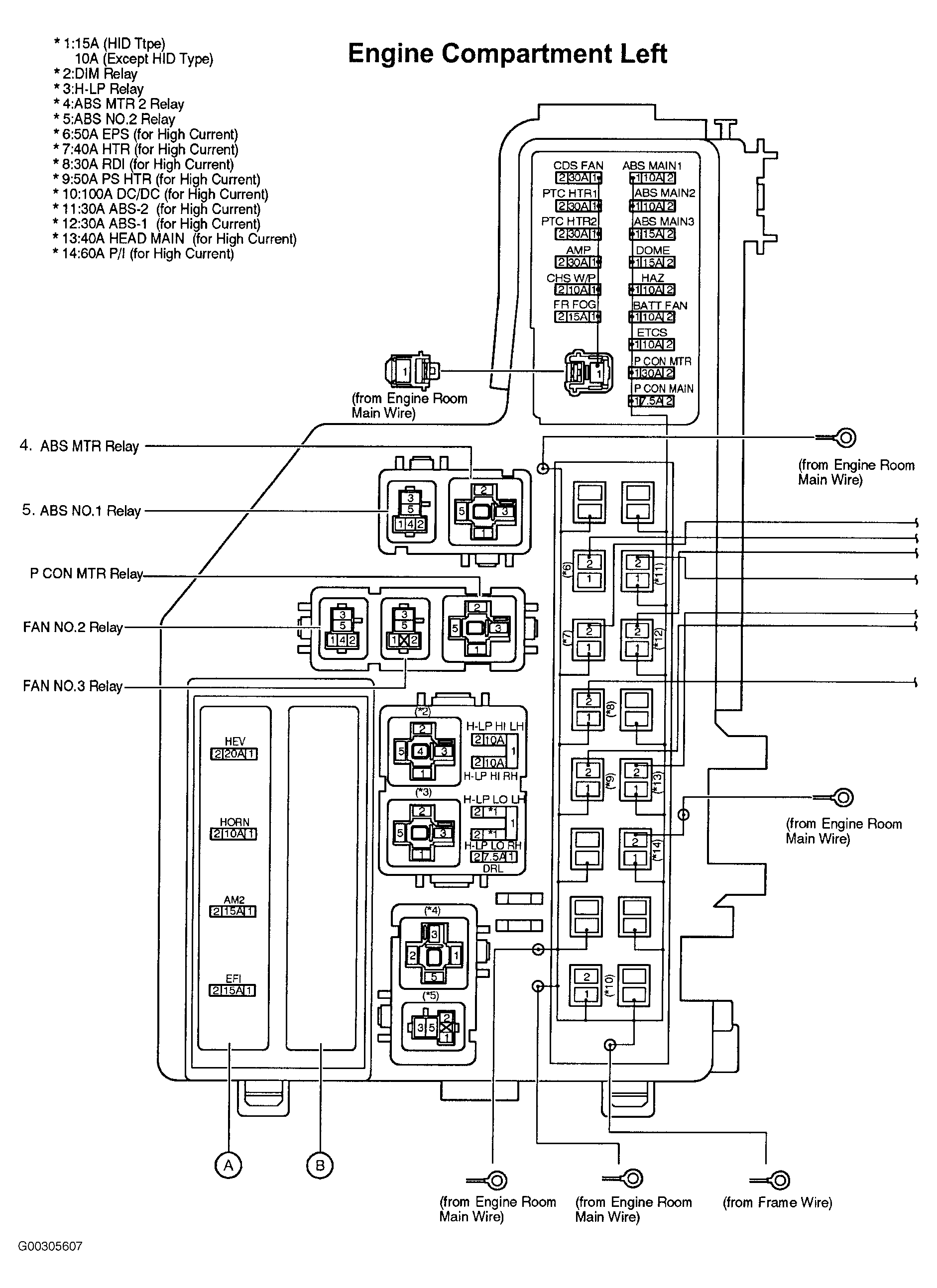

Fig 13: Engine Compartment Relay Box

G00305607

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
