Combination Meter Inner Circuit

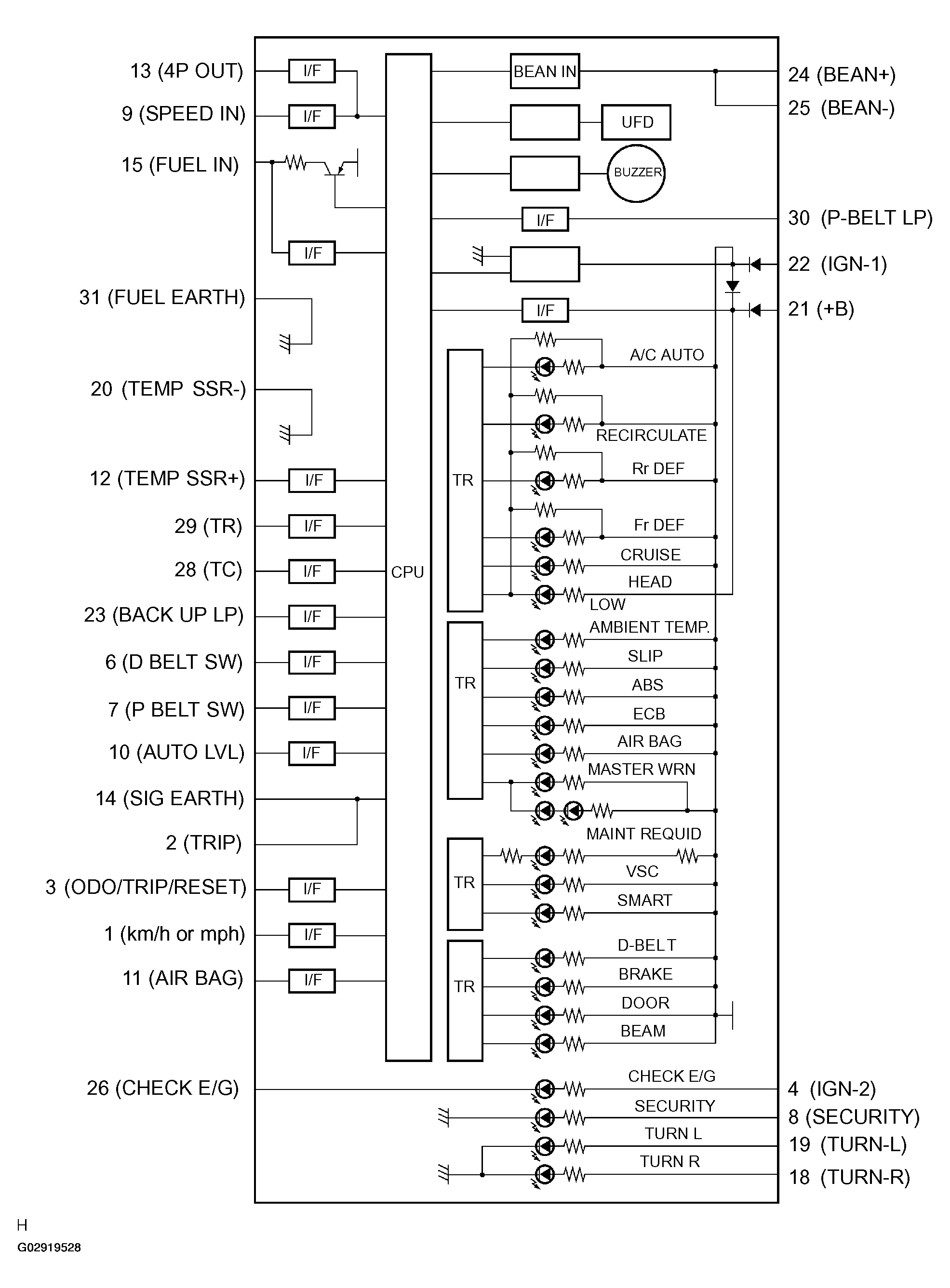

Fig 1: Inspecting Combination Meter Inter Circuit Diagram
G02919528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

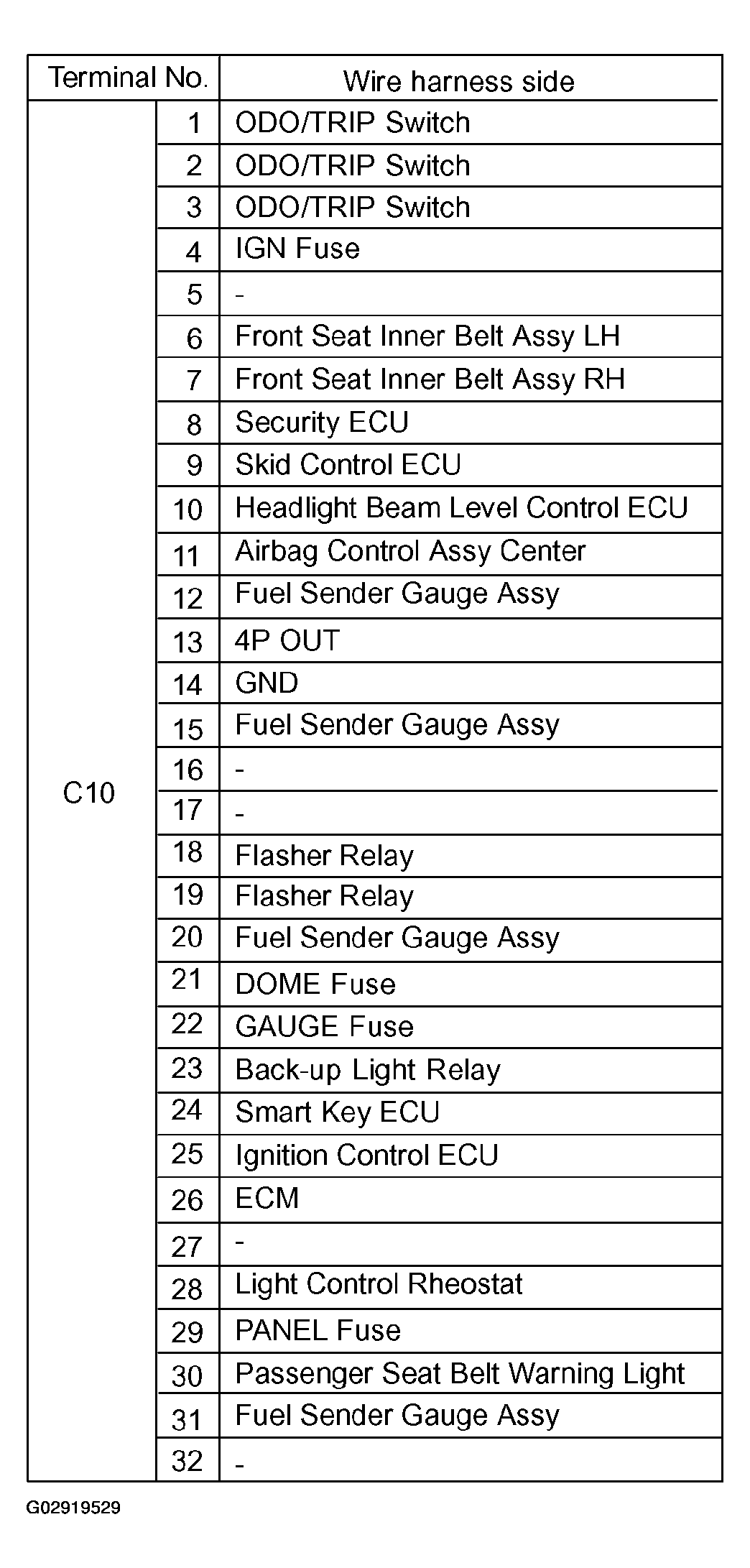

Fig 2: Combination Meter Assembly C10 Connectors Table
G02919529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
