System Diagram

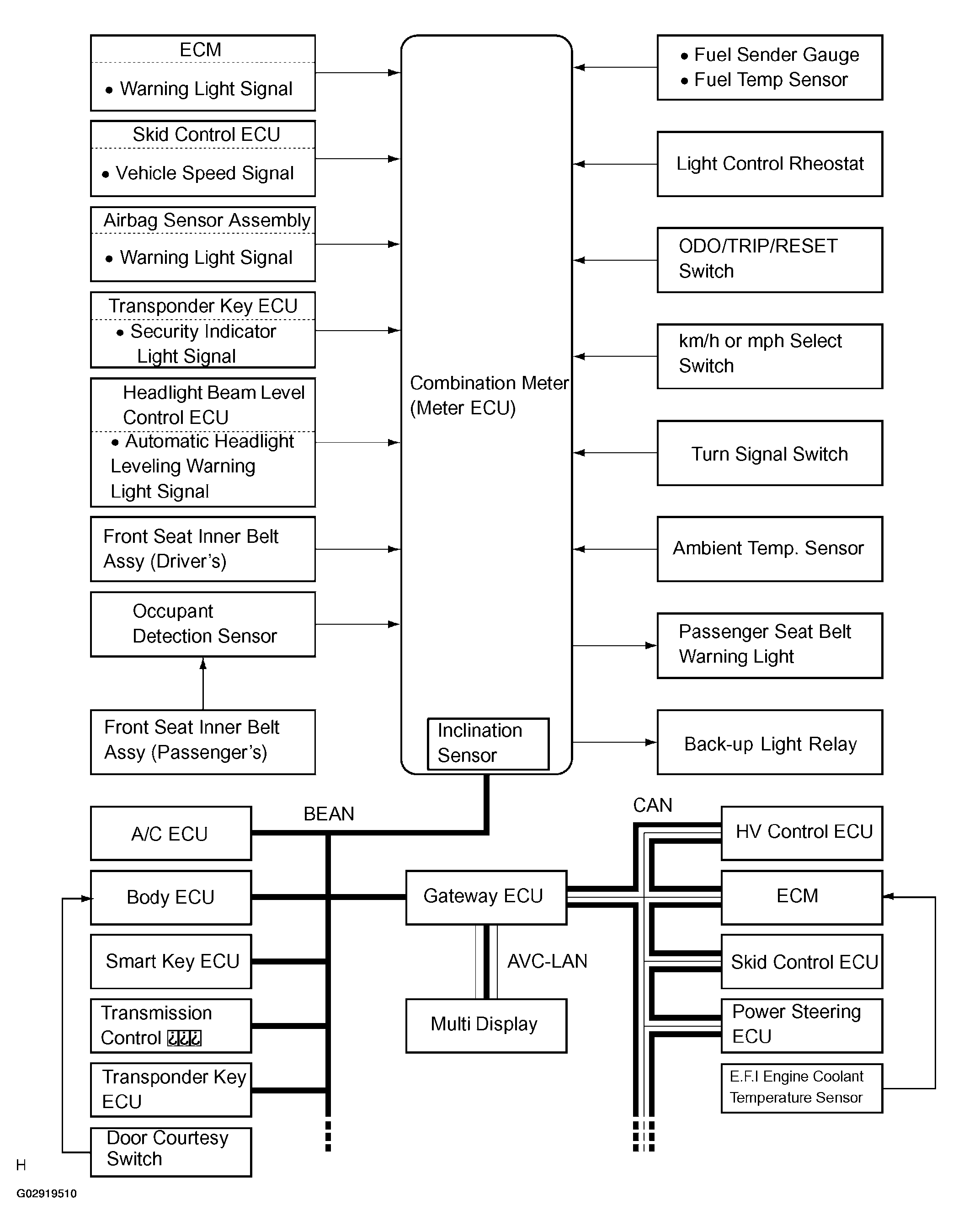

Fig 1: Combination Meter System Diagram

G02919510

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GATEWAY:

COMBINATION METER SIGNAL TAKE (GATEWAY)

Component	Signal
ECU	Signals from/to Combination meter (Meter ECU)
GATEWAY ECU	Receives ODO METER information signal

BEAN:

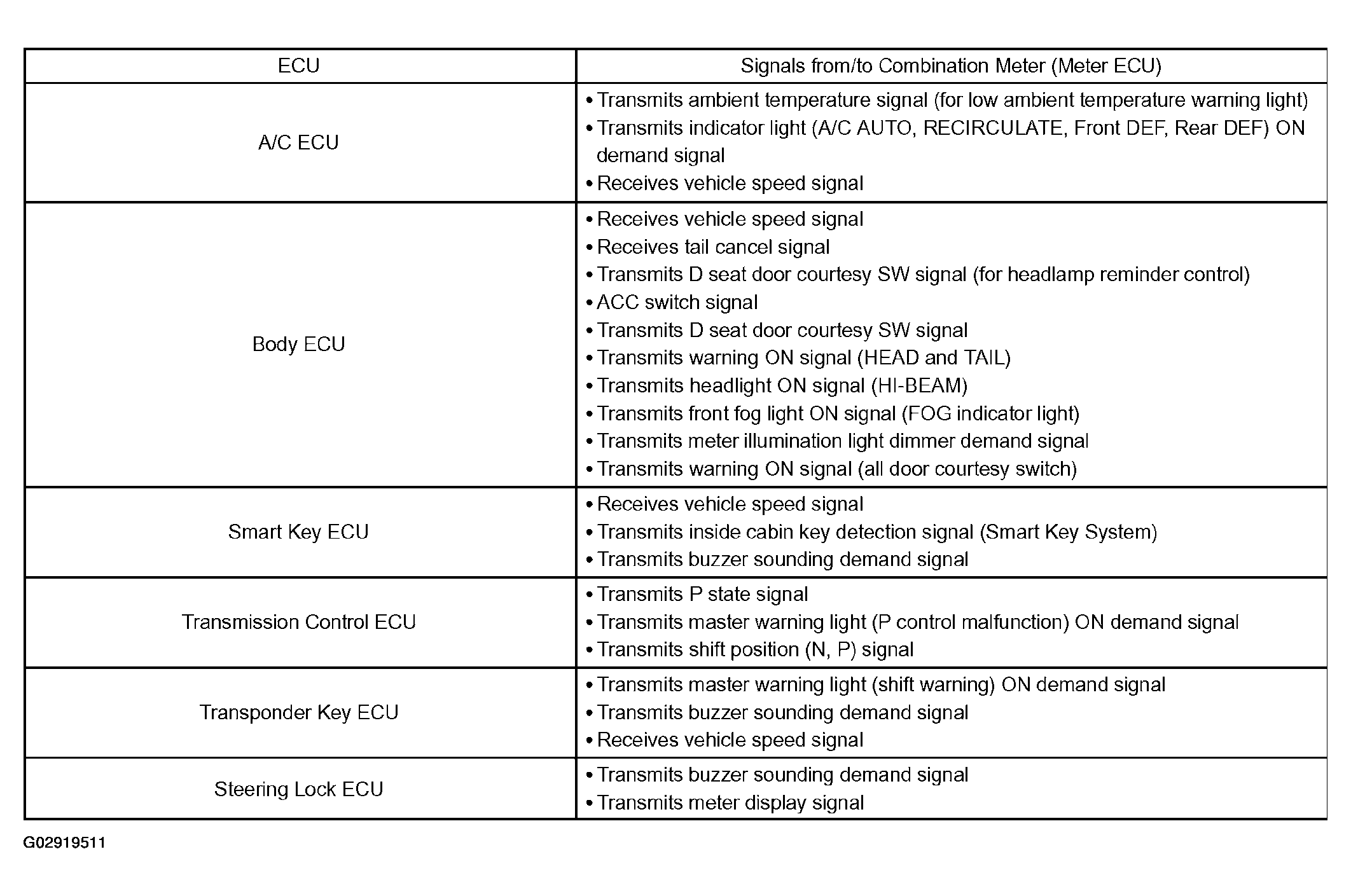

Fig 2: Combination Meter Signal Take (BEAN)

G02919511

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

CAN:

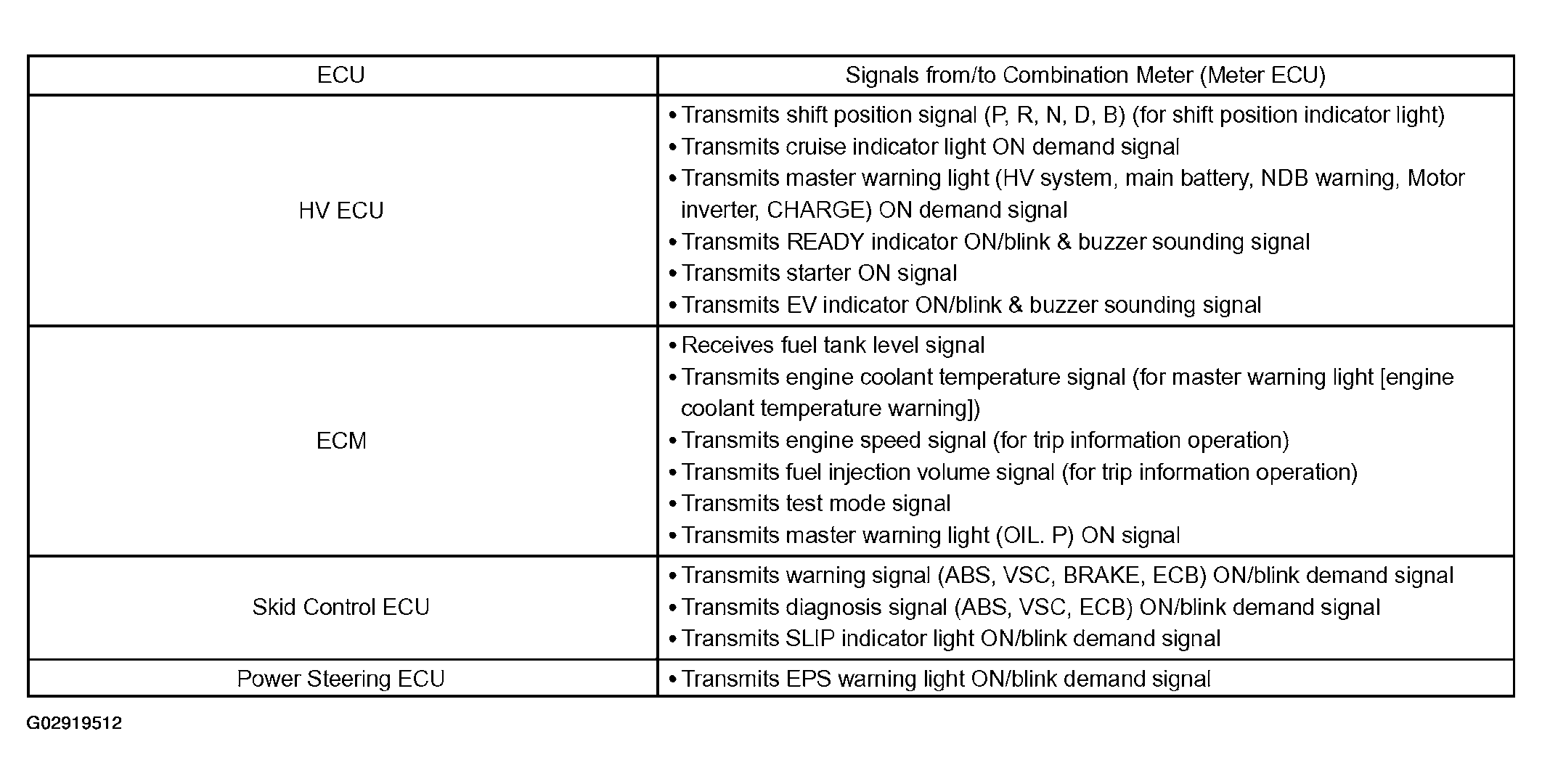

Fig 3: Combination Meter Signal (CAN)

G02919512

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

AVC-LAN:

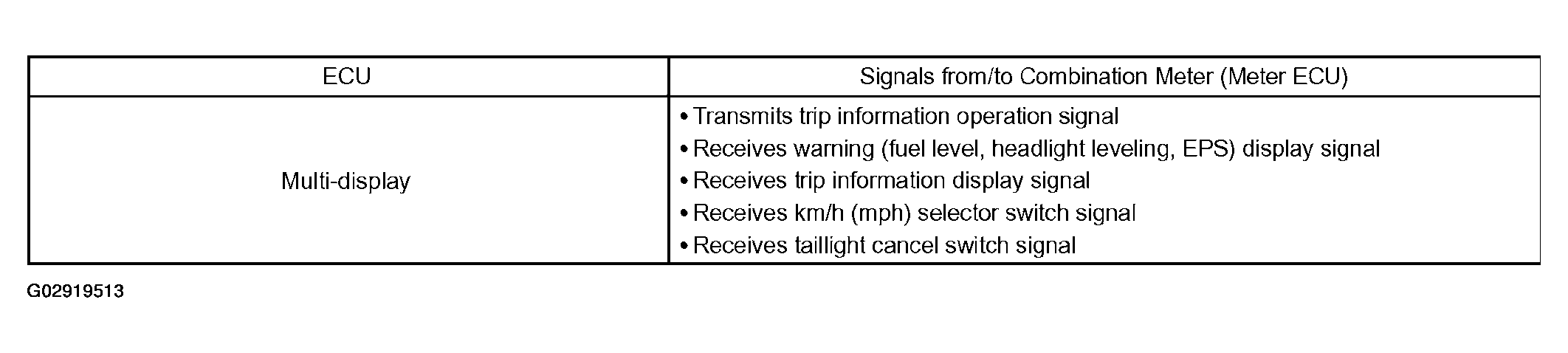

Fig 4: Combination Meter Signal Table (AVC-LAN)

G02919513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
