Inspection Procedure

1. Disconnect the C10 connector.
2. Measure the voltage according to the value(s) in the table below.

Standard:

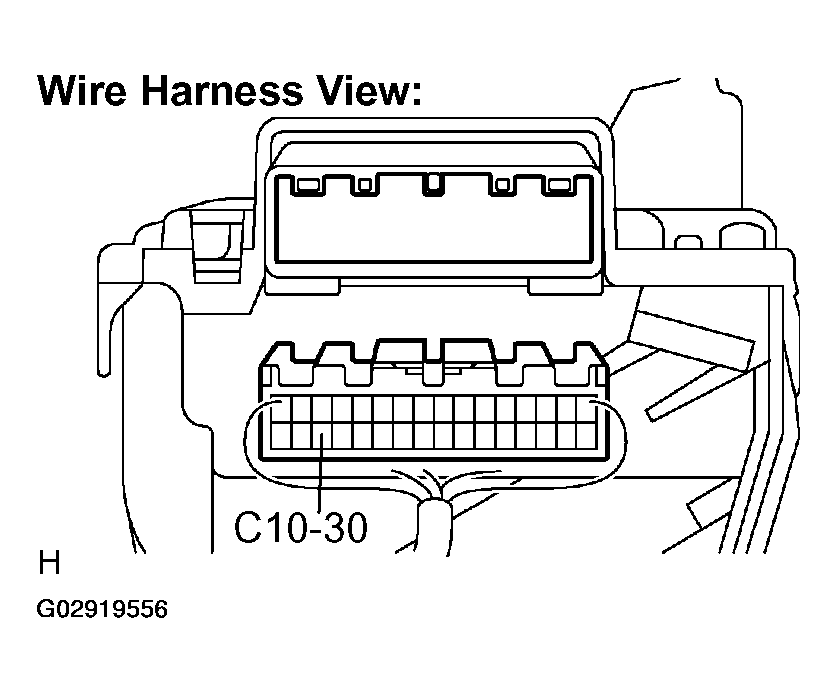

Fig 1: Identifying C10-30 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step   4

OK: Go to next step.

1. Disconnect the C10 connector.
2. Measure the resistance according to the value(s) in the table below.

Standard:

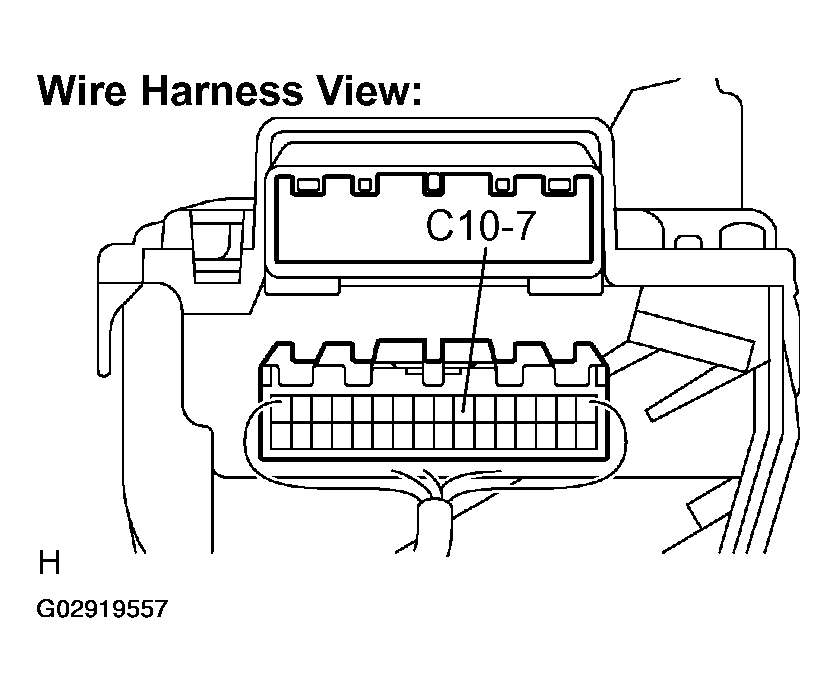

Fig 2: Identifying C10-7 Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: Go to step 3

OK: REPLACE COMBINATION METER ASSY (SEE  INSTRUMENT PANEL/METER  )

1. Disconnect the front seat inner belt assy connector.
2. Measure the resistance according to the value(s) in the table below.

Standard:

Fig 3: Identifying Front Seat Inner Belt Assy Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT SEAT INNER BELT ASSY (PASSENGER SIDE)

OK: Go to next step.

1. Disconnect the front seat inner belt assy connector.
2. Measure the resistance according to the value(s) in the table below.

Standard:

Fig 4: Identifying Front Seat Inner Belt Assy Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (FRONT SEAT INNER BELT ASSY BODY GROUND)

OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (FRONT SEAT INNER BELT ASSY - COMBINATION METER ASSY)

1. Disconnect the C10 and F11 connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard:

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   C10-30 - F11-3	Always	Below 1Ω
   C10-30 - Body ground	Always	10 kΩ or higher

3. Measure the voltage according to the value(s) in the table below.

Standard:

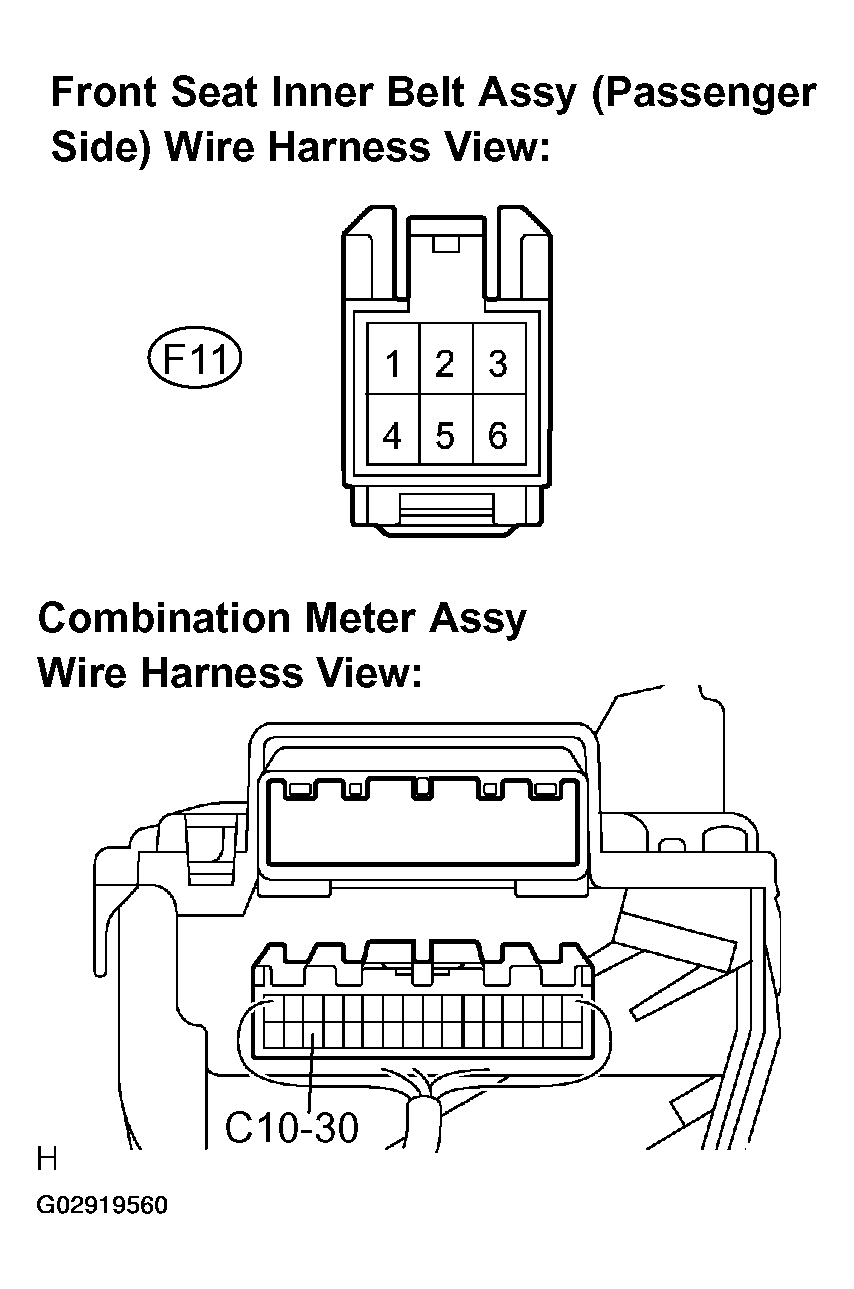

Fig 5: Identifying Front Seat Inner Belt And Combination Meter Assy Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE FRONT PASSENGER SEAT BELT WARNING LIGHT (SEE  SEAT BELT  )
