Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

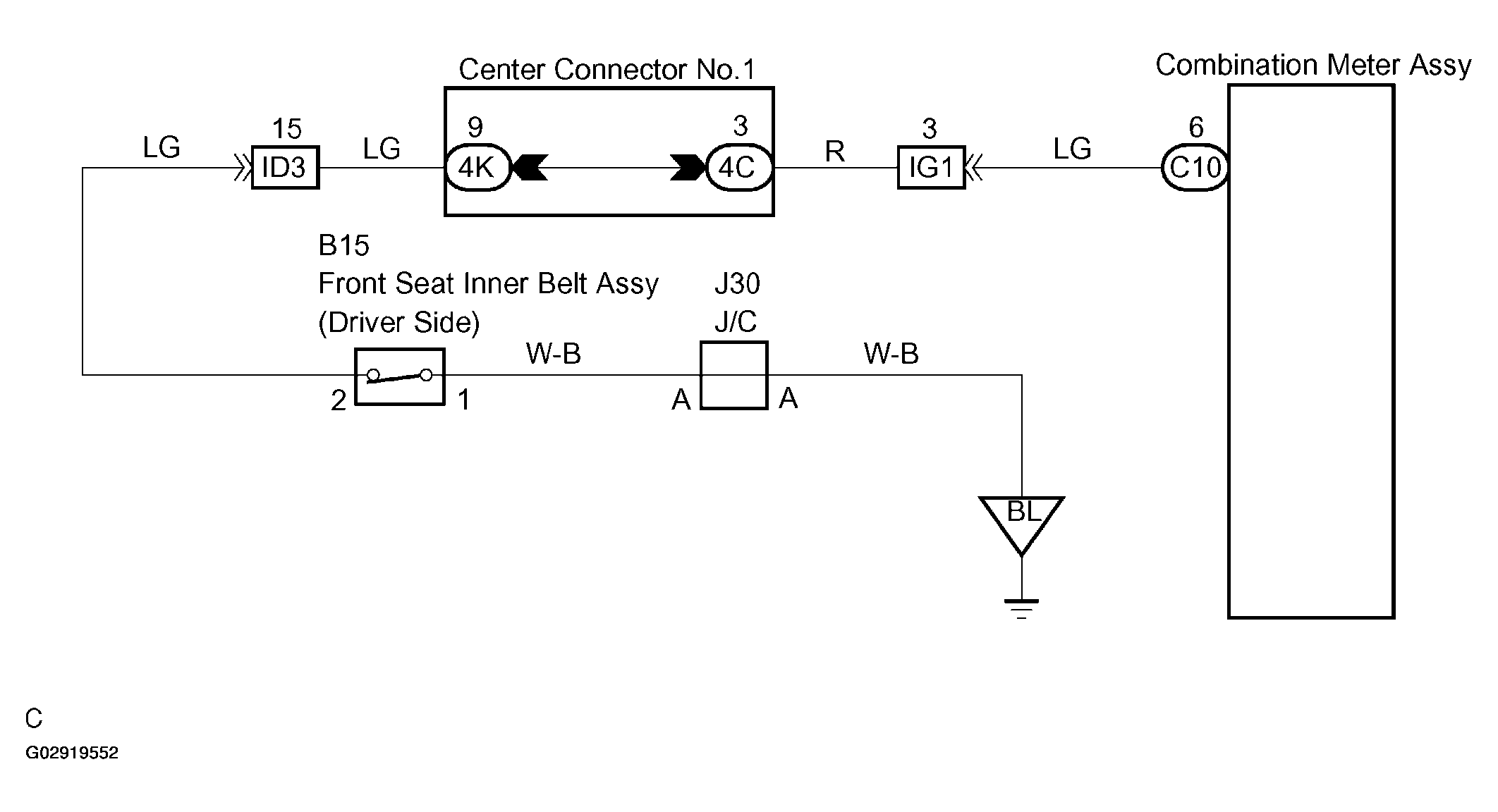

Fig 1: Front Seat Inner Belt Assy Wiring Diagram

G02919552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
