Gauges & Instrument Panels
>>
Combination Meter - Diagnosis
>>
Operating Light Control Rheostat Does Not Change Light Brightness
>>
Wiring Diagram
Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

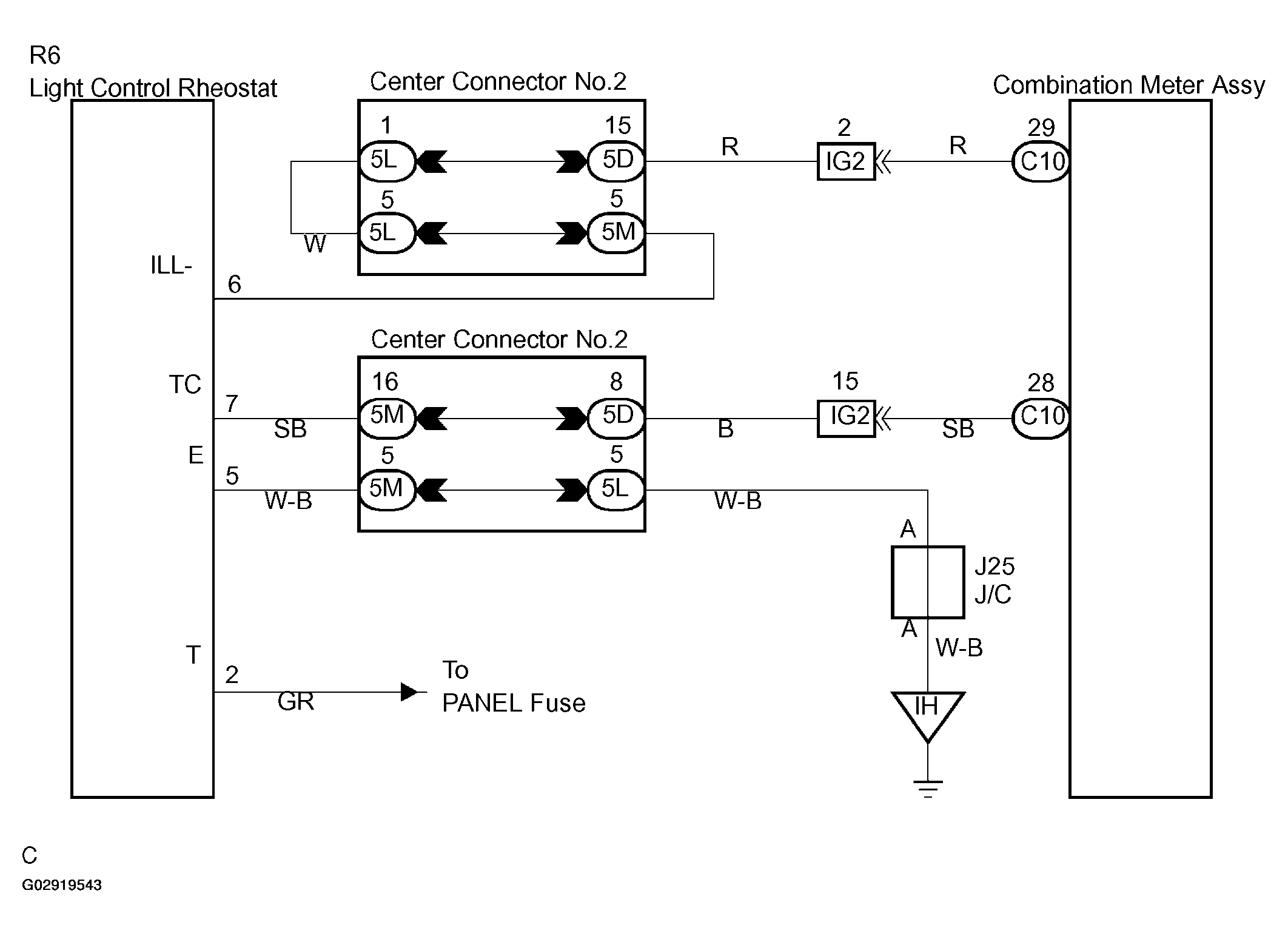

Fig 1: Light Control Rheostat Wiring Diagram
