Malfunction In Speedometer: Wiring Diagram

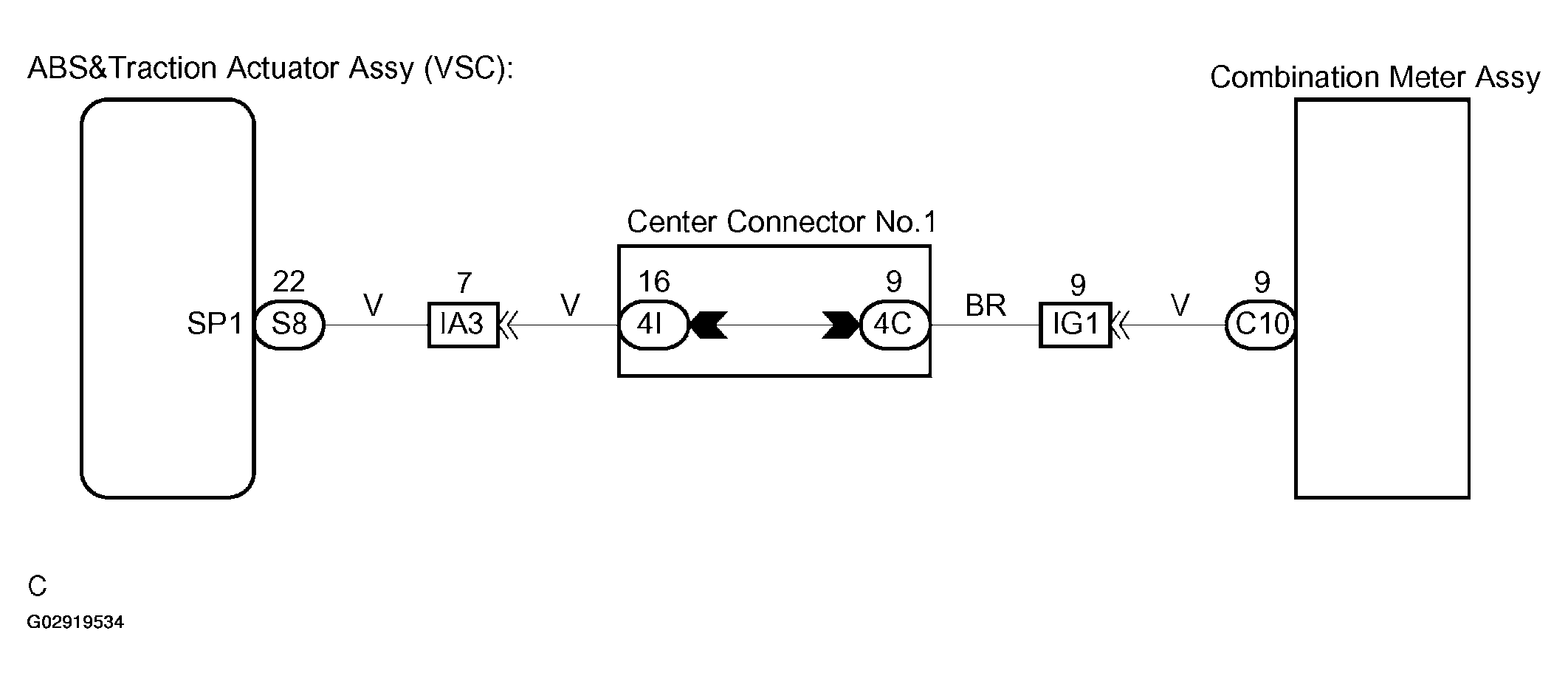

Fig 1: ABS & Traction Actuator Assy Wiring Diagram

G02919534

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
