Malfunction In ODO/Trip SW: Wiring Diagram

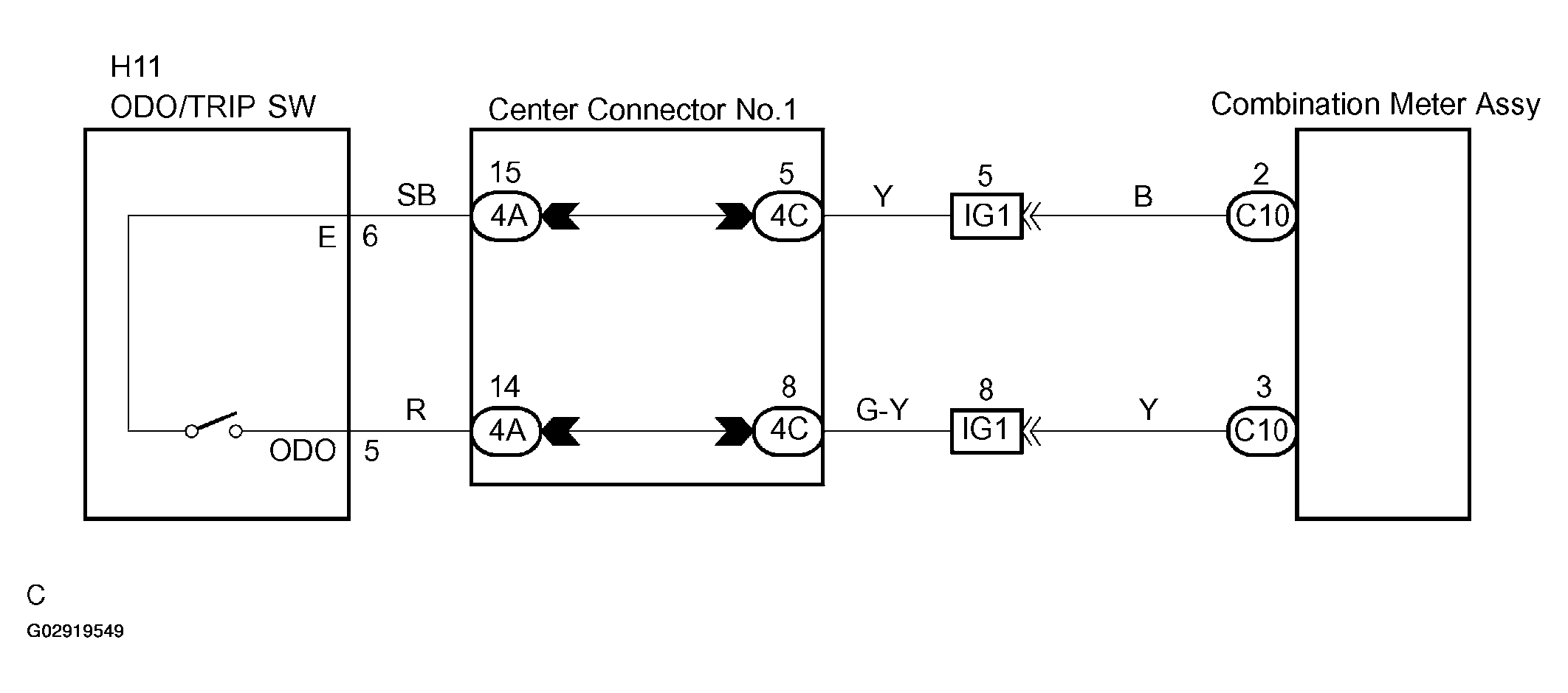

Fig 1: ODO/TRIP SW Wiring Diagram

G02919549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
