Combination Meter - Diagnosis: Location

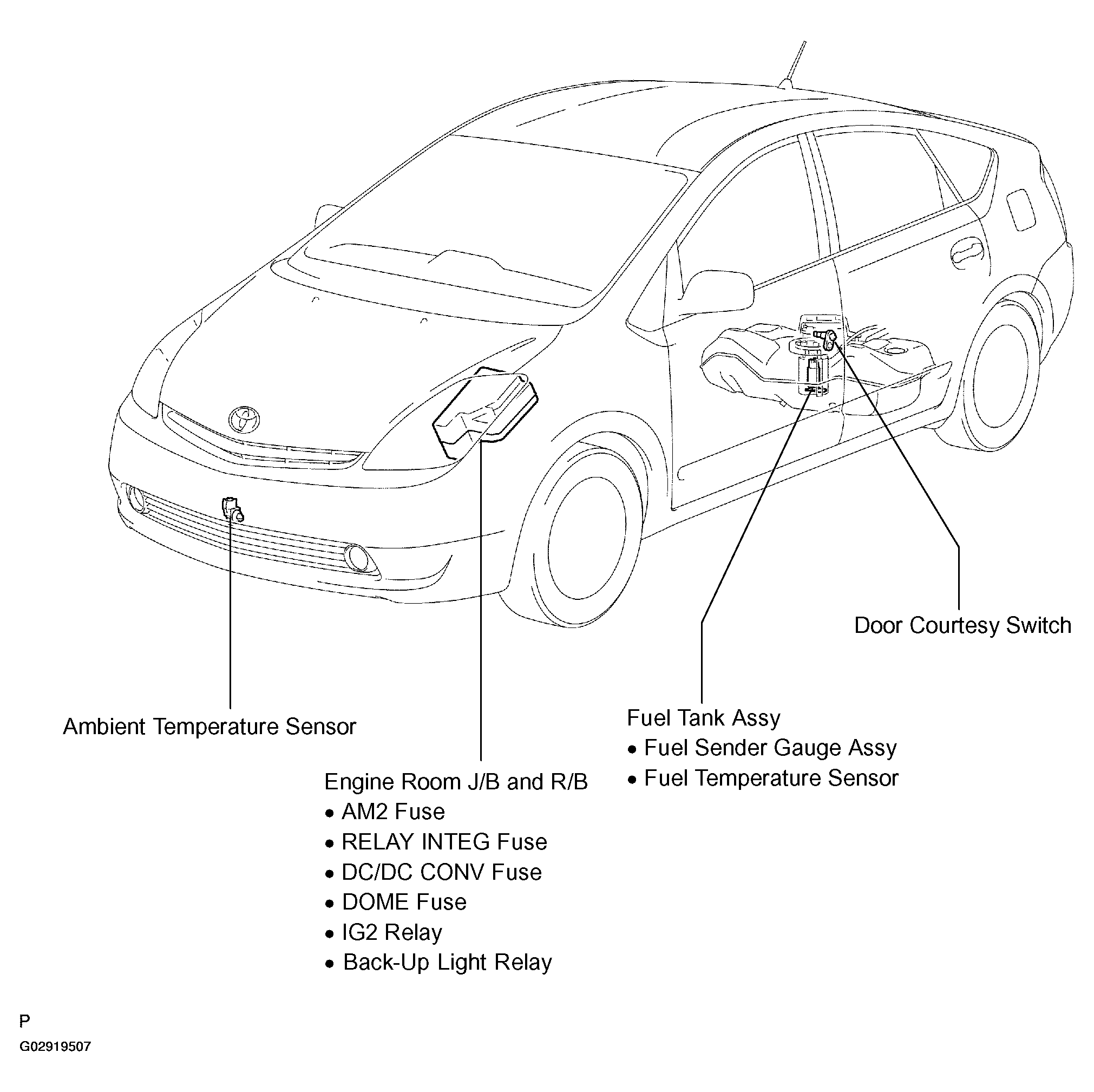

Fig 1: Identifying Combination Meter Components Location
G02919507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

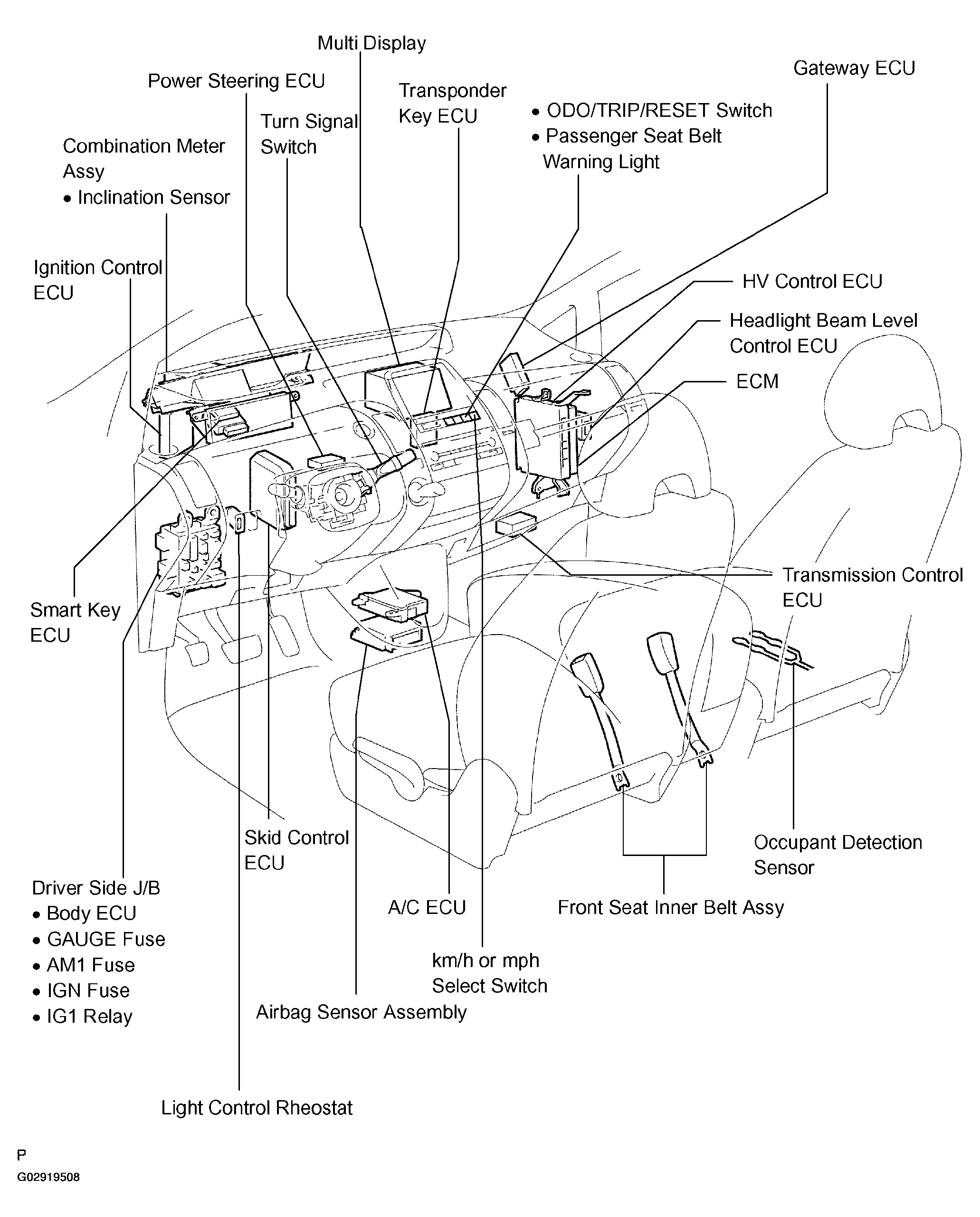

Fig 2: Identifying Combination Meter Components Location
G02919508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

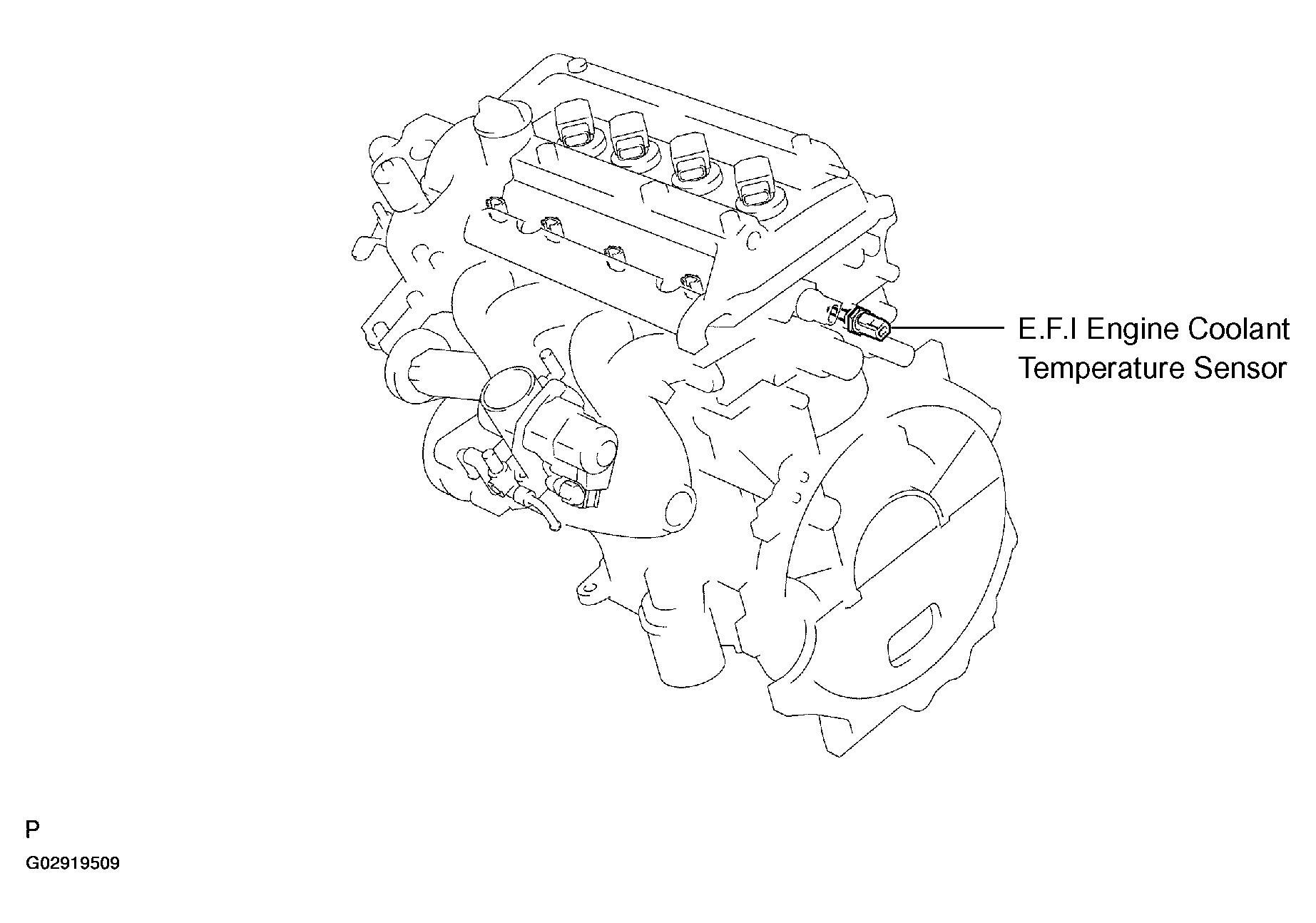

Fig 3: Locating E.F.I. Engine Coolant Temperature Sensor
G02919509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
