Entire Combination Meter Does Not Operate: Wiring Diagram

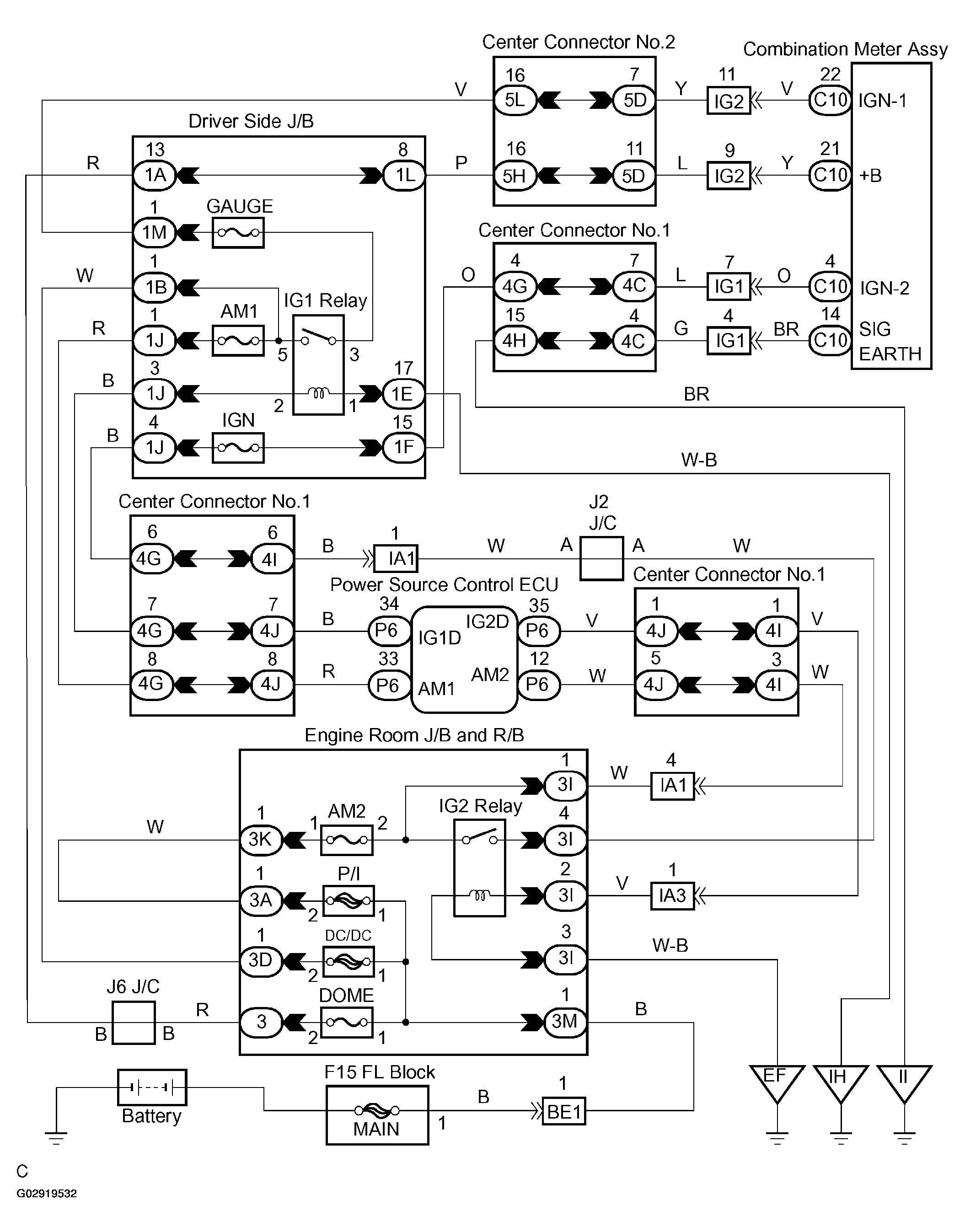

Fig 1: Combination Meter Wiring Diagram

G02919532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
