Inspection Procedure

1. Measure the resistance according to the value(s) in the table below.

   Standard:

   COMBINATION METER ASSY STANDARD



   Terminal No	Condition	Specified condition
   C10-14 - Body ground	Always	Below 1Ω

2. Measure the voltage according to the value(s) in the table below.

Standard:

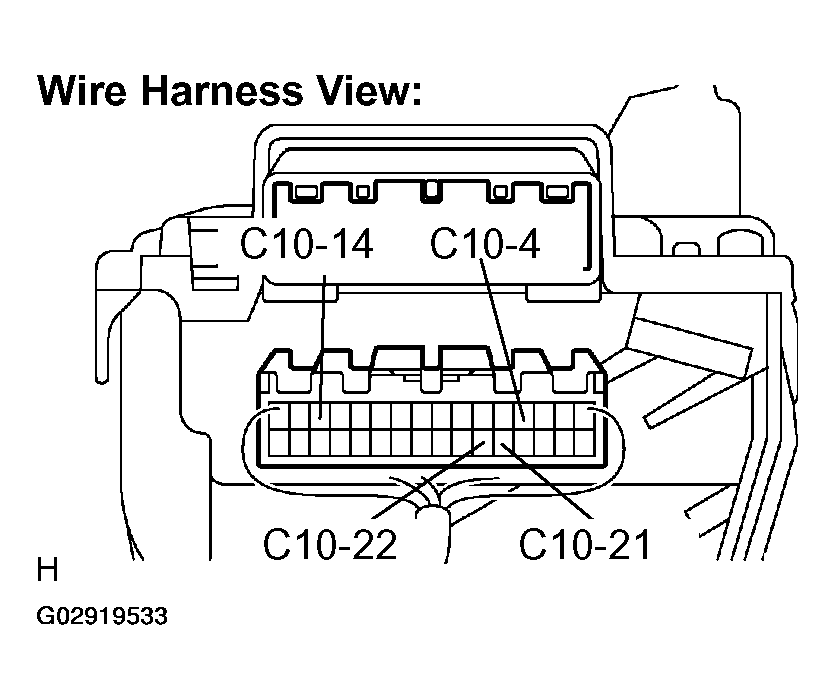

Fig 1: Identifying Combination Meter Assy Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE COMBINATION METER ASSY (SEE  INSTRUMENT PANEL/METER  )
