DTC P0300: Random/Multiple Cylinder Misfire Detected, DTC P0301: Cylinder 1 Misfire Detected, DTC P0302: Cylinder 2 Misfire Detected, DTC P0303: Cylinder 3 Misfire Detected, DTC P0304: Cylinder 4 Misfire Detected: Wiring Diagram

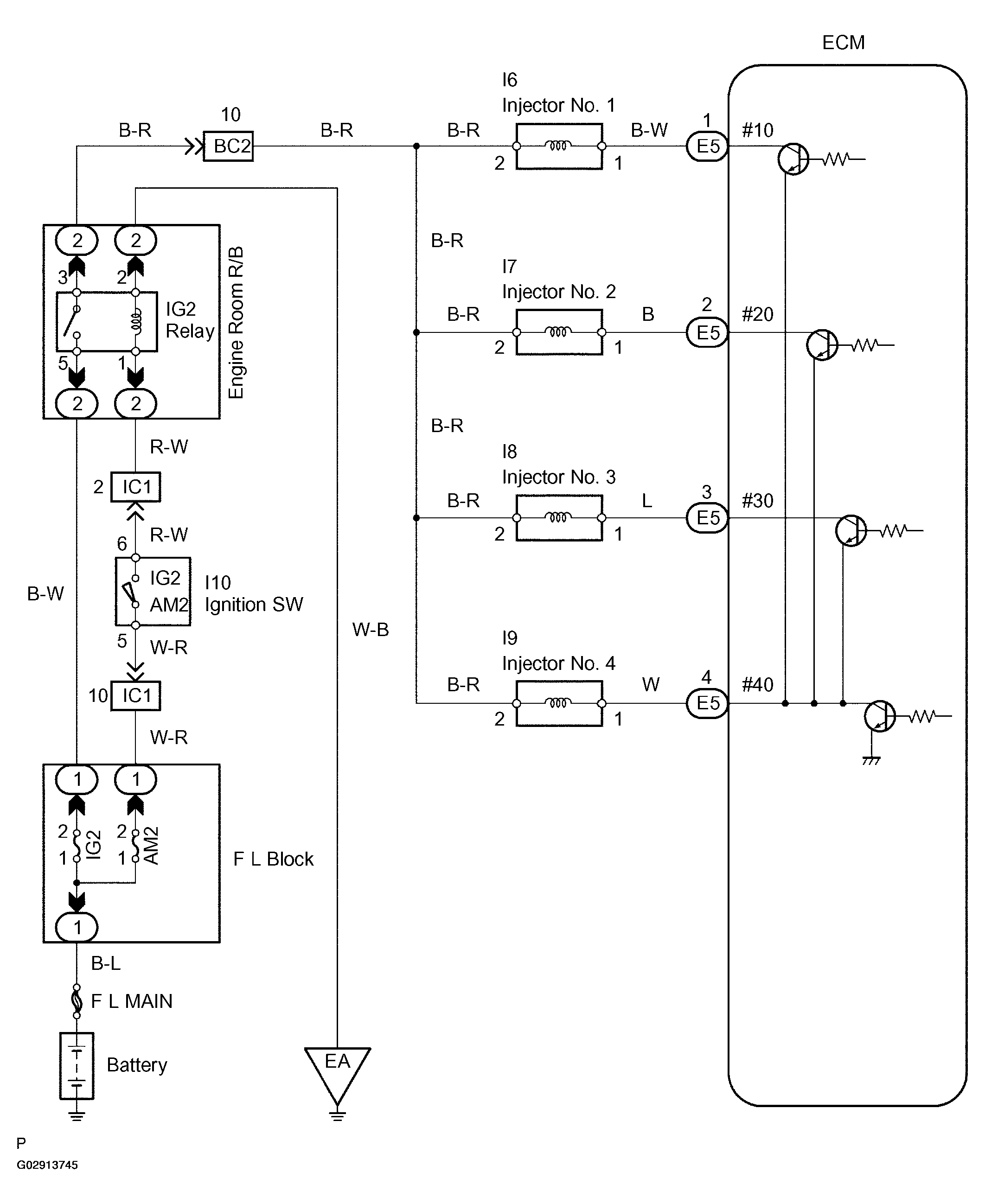

Fig 1: Wiring Diagram - Random/Multiple Cylinder Misfire Detected

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
