Section 471 (Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics))
>>
Diagnostic Trouble Code Table
>>
Diagnostic Trouble Codes Table Of Abs:
Diagnostic Trouble Codes Table Of Abs:
WARNING:
This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

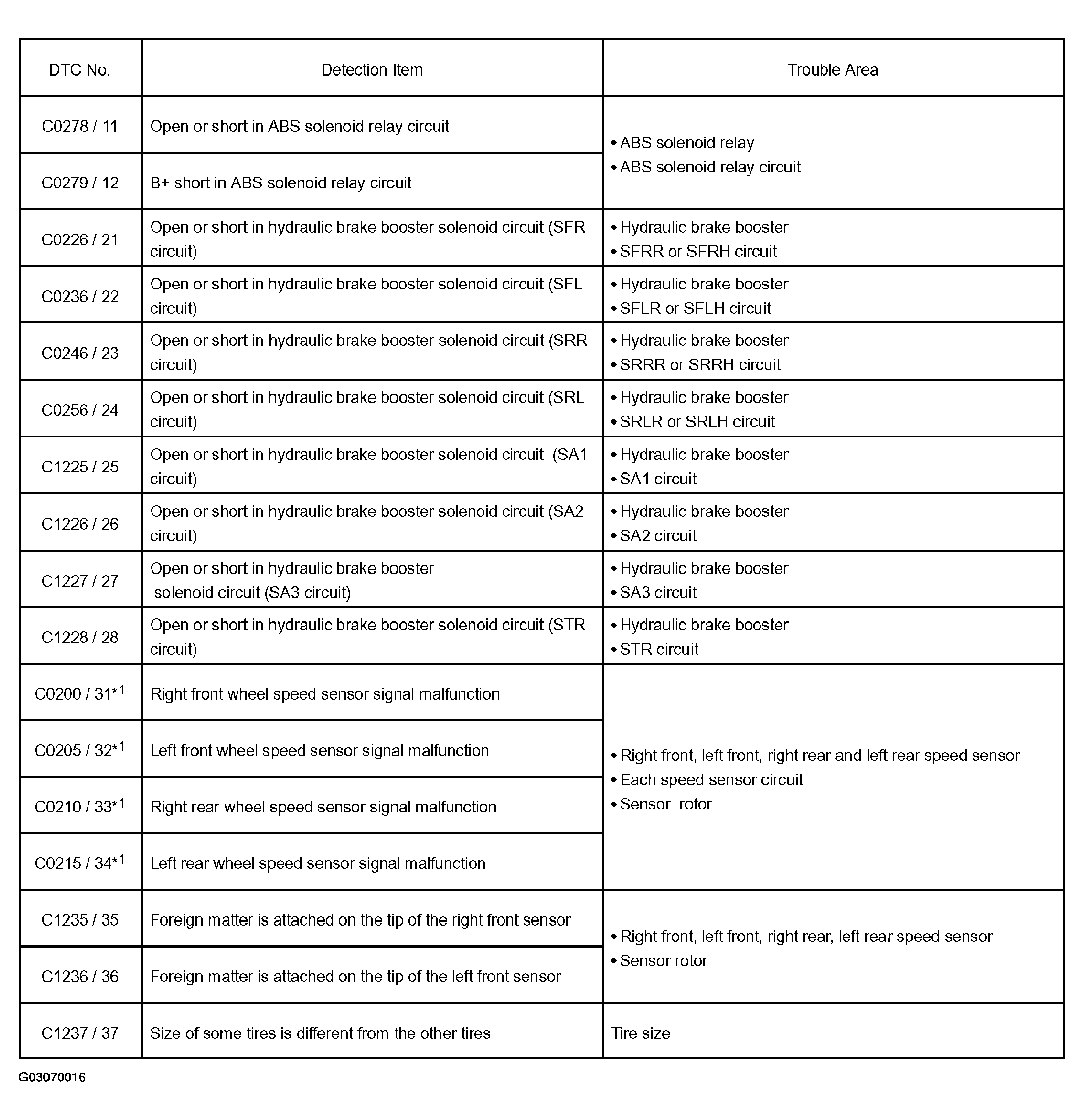

Fig 1: ABS Diagnostic Trouble Code Table (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

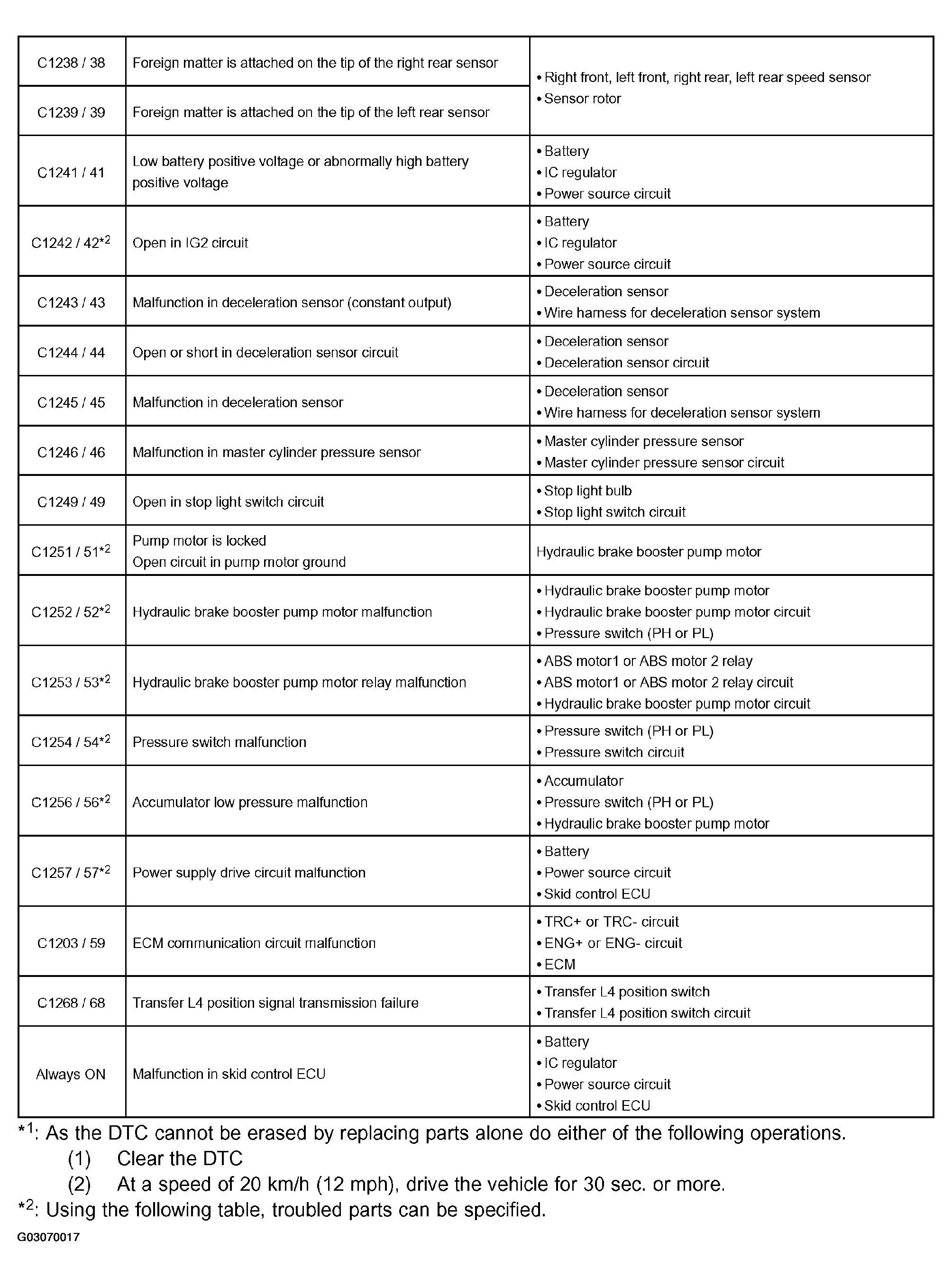

Fig 2: ABS Diagnostic Trouble Code Table (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
