Section 471 (Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics))
>>
Customer Problem Analysis Check
Customer Problem Analysis Check
WARNING:
This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

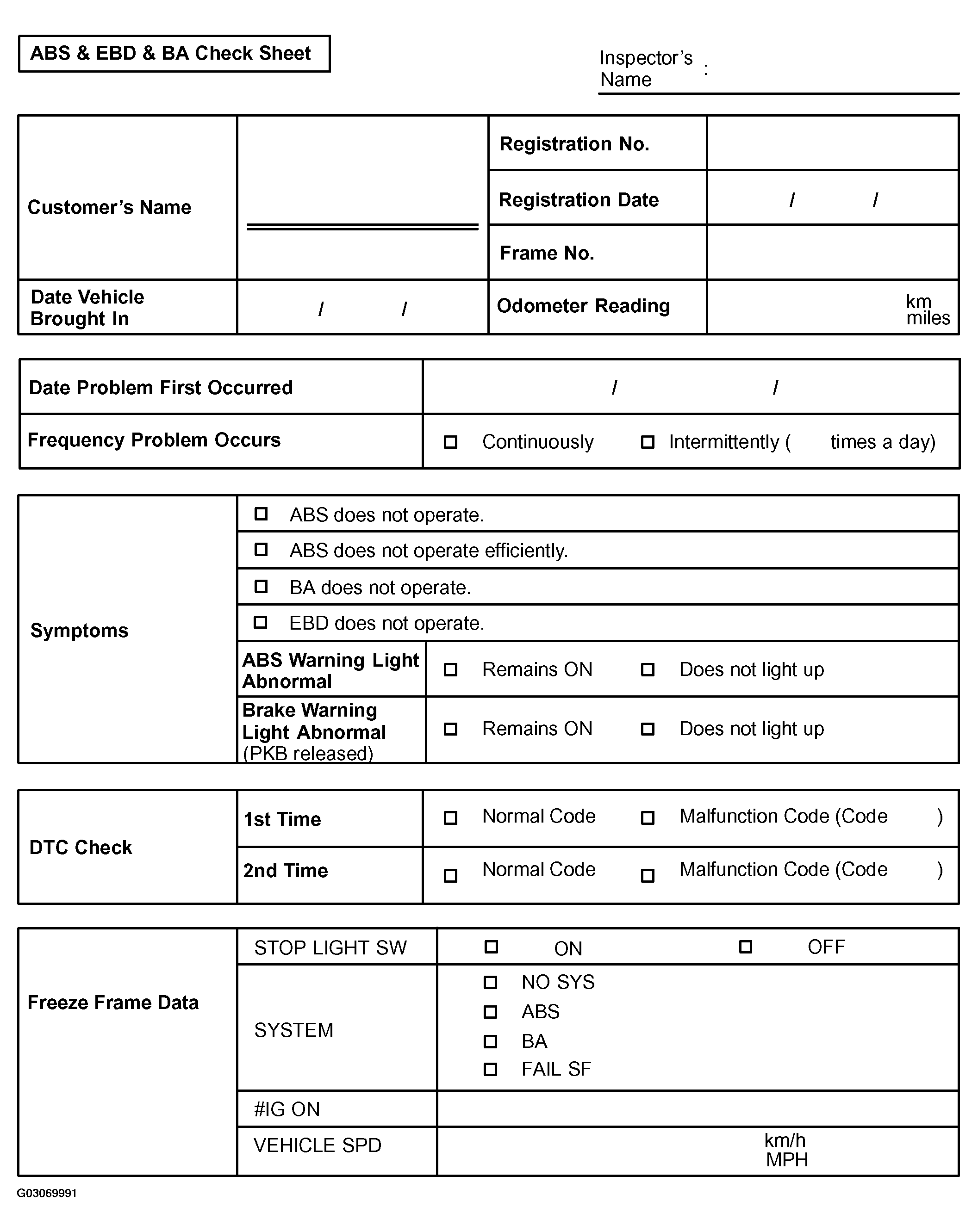

Fig 1: Customer Problem Analysis Check Sheet (ABS & EBD & BA)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

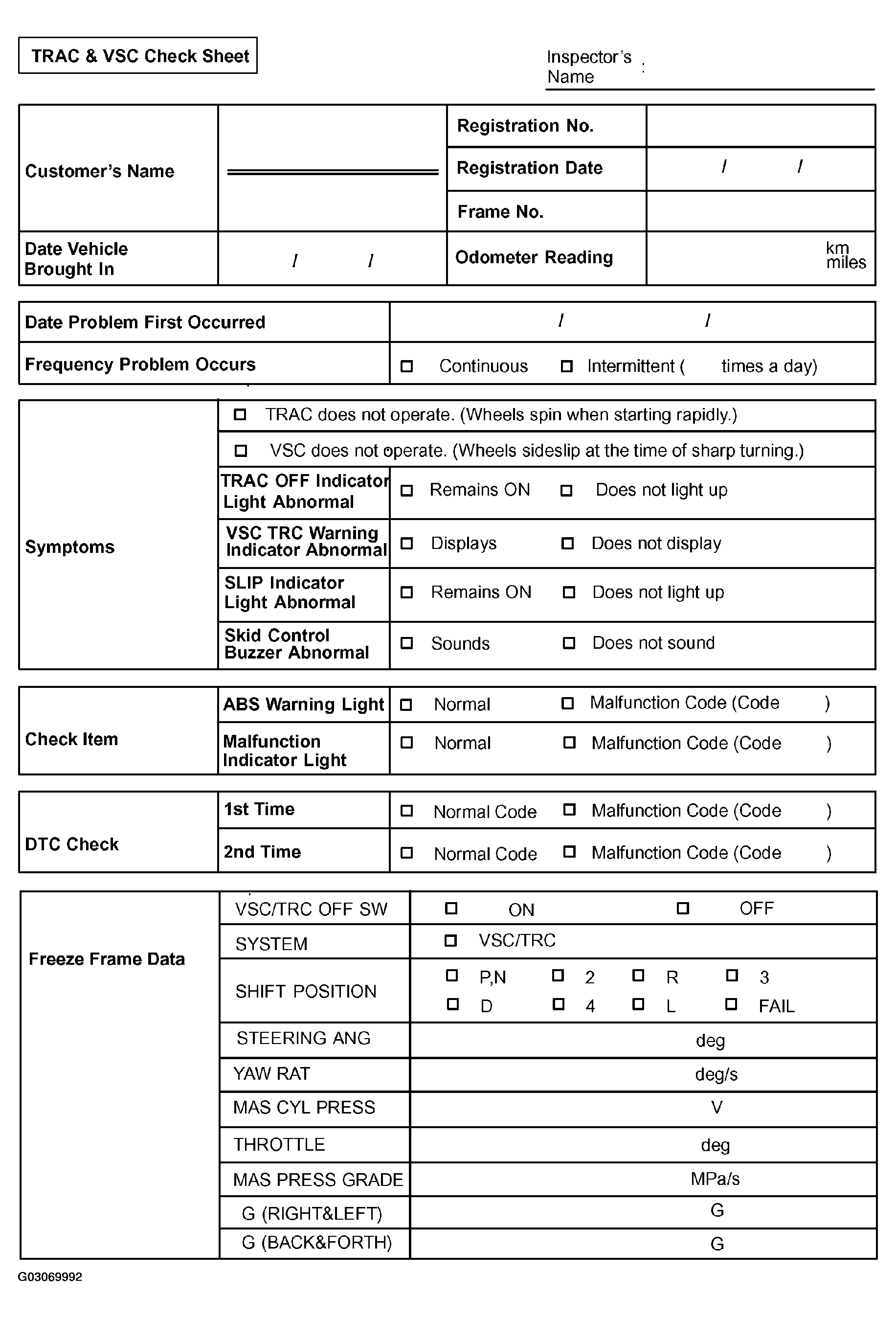

Fig 2: Customer Problem Analysis Check Sheet (TRAC & VSC)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
