Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check for open and short circuit in harness and connector between yaw rate (deceleration) sensor and skid control ECU (See  HOW TO USE THE DIAGNOSTIC TABLE AND INSPECTION  ).
    1. NG: Repair or replace harness or connector.
    2. OK: Go to next step.
  2. Check yaw rate (deceleration) sensor.

    PREPARATION:

    1. Connect 3 dry batteries of 1.5 V in series.
    2. Connect VYS terminal to the batteries' positive (+) terminal, and GYAW terminal to the batteries' negative (-) terminal. Apply about 4.5 V between VYS and GYAW terminals.
      NOTE: Do not apply voltage of 6 V or more to terminals VYS and GYAW.

      CHECK:

      Check the output voltage of GL1 and GL2 terminals when the sensor is tilted forward and rearward.

      OK:

      YAW RATE (DECELERATION) SENSOR TERMINALS VOLTAGE

      Symbols Condition Standard Value
      GL1 Horizontal About 2.3 V
      GL1 Lean rearward 1.0 V to about 2.3 V
      GL1 Lean forward About 2.3 V to 3.5 V
      GL2 Horizontal About 2.3 V
      GL2 Lean rearward About 2.3 V to 3.5 V
      GL2 Lean forward 1.0 V to about 2.3 V

      HINT:

      • If the sensor is tilted too much, it may show the wrong value.
      • If dropped, the sensor should be replaced with a new one.
      • The sensor removed from the vehicle should not be placed upside down.

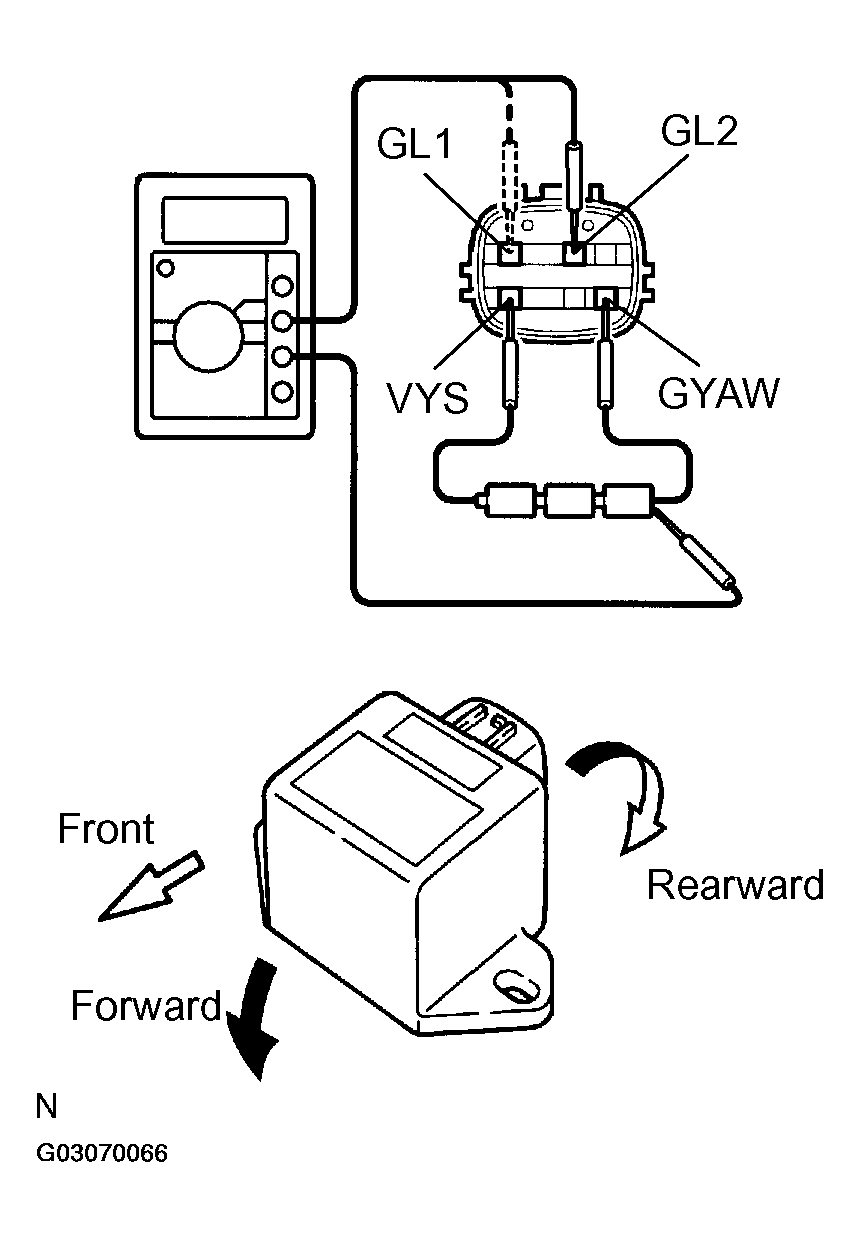

        Fig 1: Checking Yaw Rate (Deceleration) Sensor
        G03070066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: Replace yaw rate sensor.
    2. OK: Check and replace skid control ECU.
