Circuit Description

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

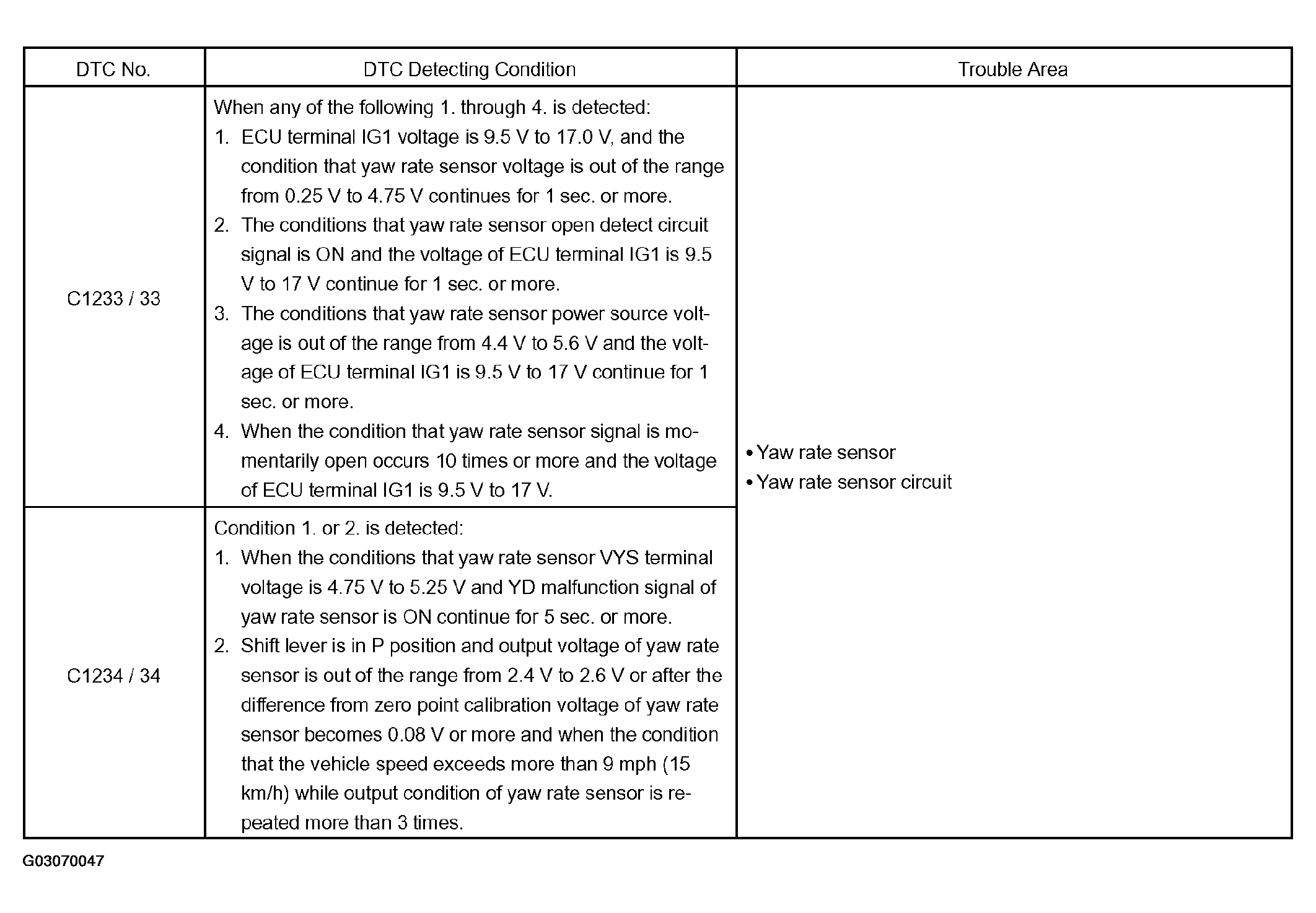

Fig 1: DTC C1233/33 & 01234/34 Problem Symptom Table
G03070047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
