Circuit Description

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

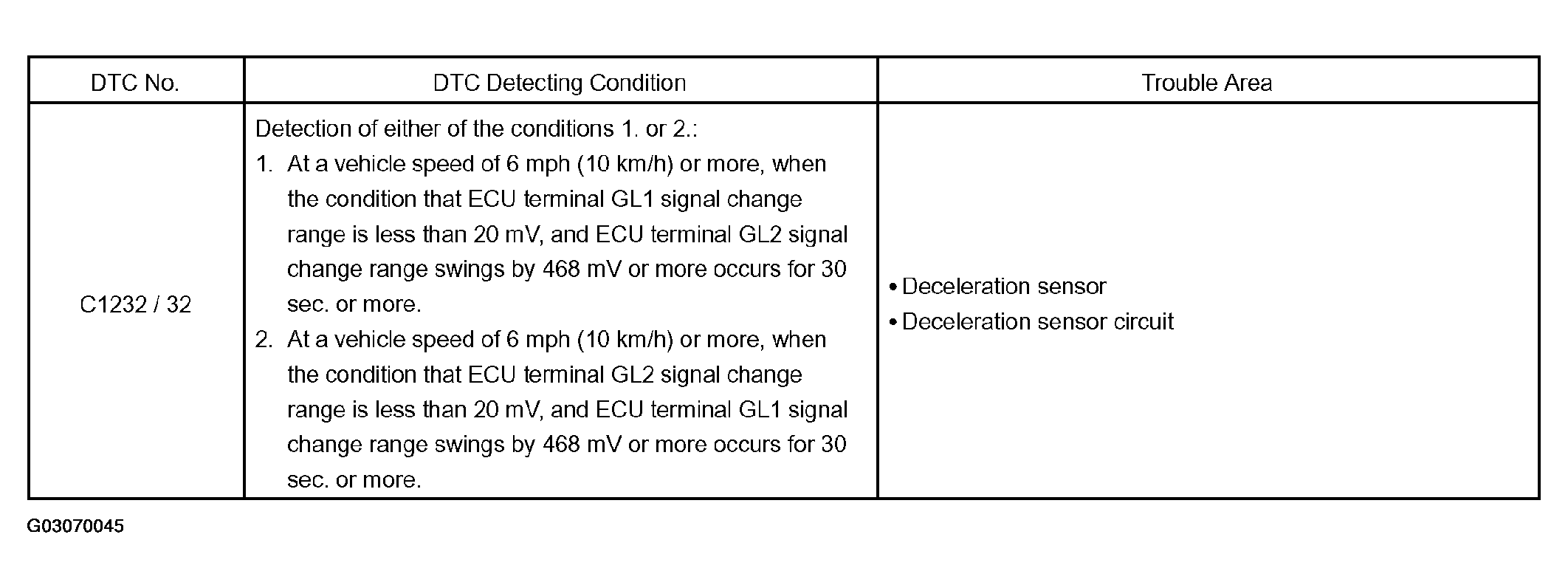

Fig 1: DTC C1232/32 Problem Symptom Table
G03070045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
