Circuit Description

WARNING: This page is about a different car, the 2005 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

The skid control ECU receives engine revolution speed signals (NE signals) from the ECM.

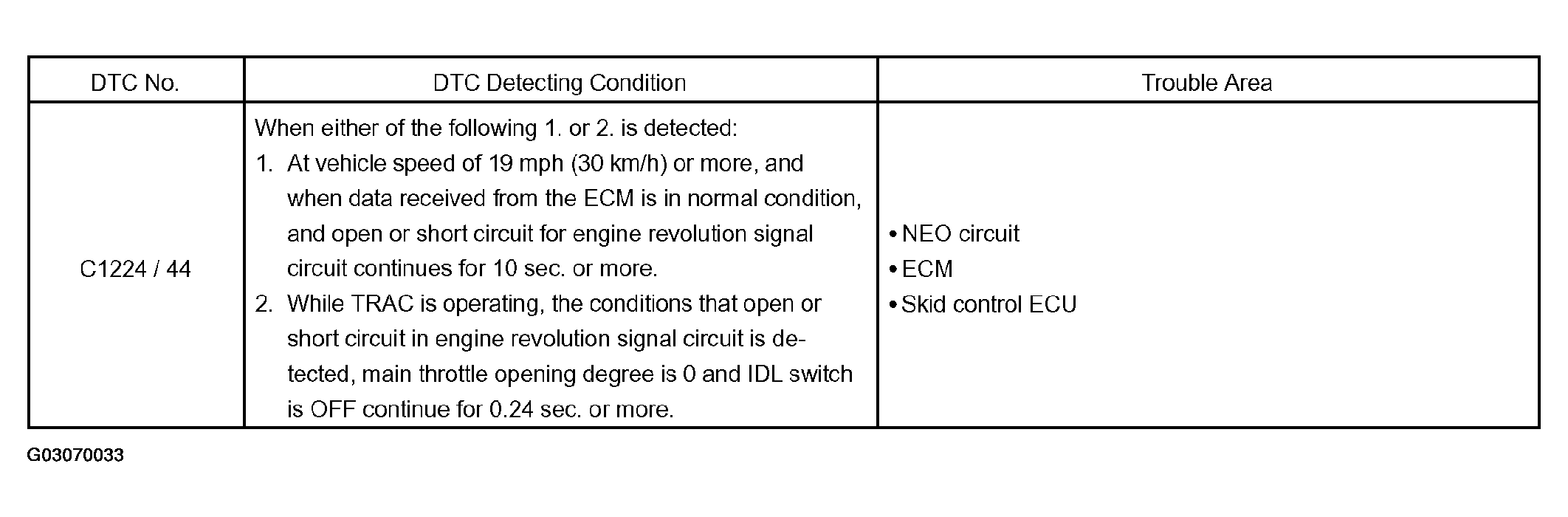

Fig 1: DTC C1224/44 Problem Symptom Table
G03070033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
