DTC P0351: Igniter Coil "A" Primary/Secondary Circuit; DTC P0352: Igniter Coil "B" Primary/Secondary Circuit; DTC P0353: Igniter Coil "C" Primary/Secondary Circuit; DTC P0354: Igniter Coil "D" Primary/Secondary Circuit; DTC P0355: Igniter Coil "E" Primary/Secondary Circuit; DTC P0356: Igniter Coil "F" Primary/Secondary Circuit; DTC P0357: Igniter Coil "G" Primary/Secondary Circuit; DTC P0358: Igniter Coil "H" Primary/Secondary Circuit
>>
Typical Enabling Conditions
Typical Enabling Conditions

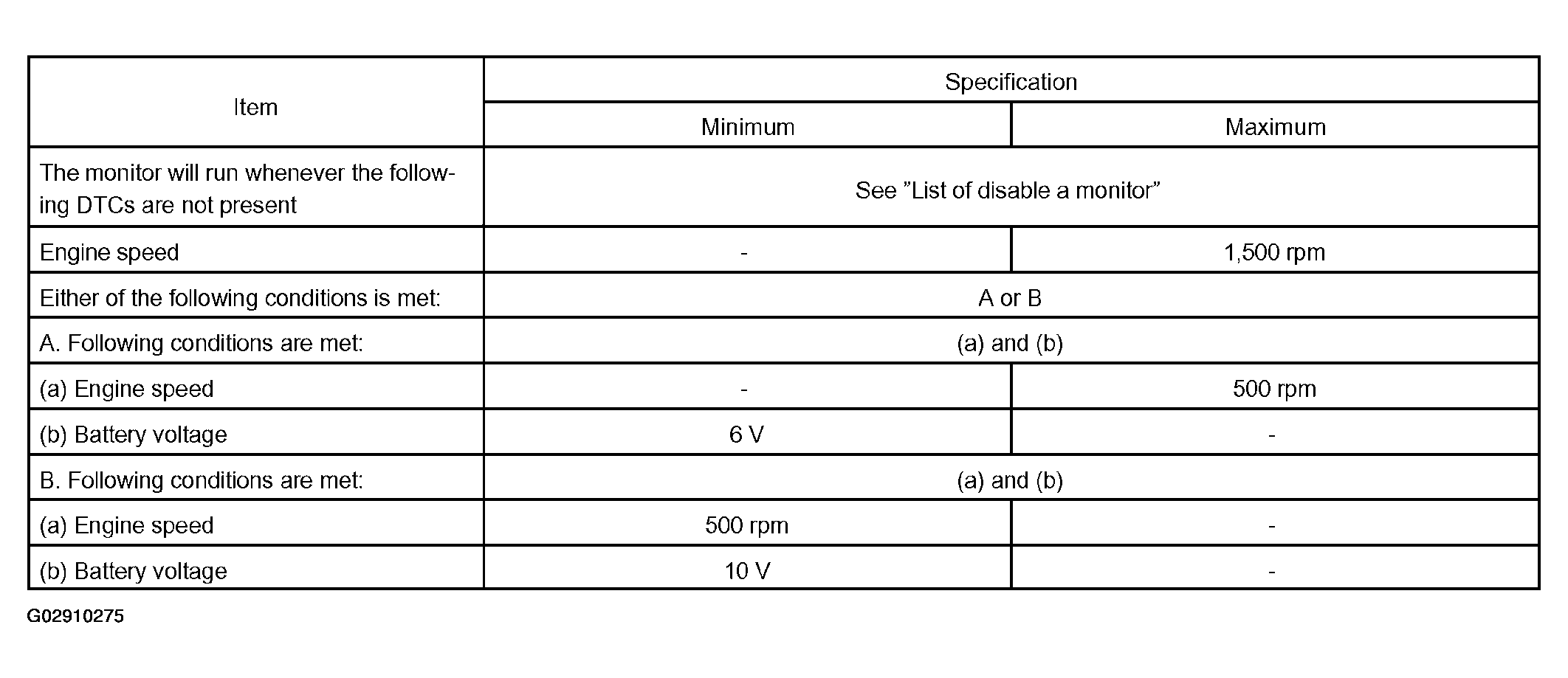

Fig 1: Typical Enabling Conditions Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
