Monitor Description

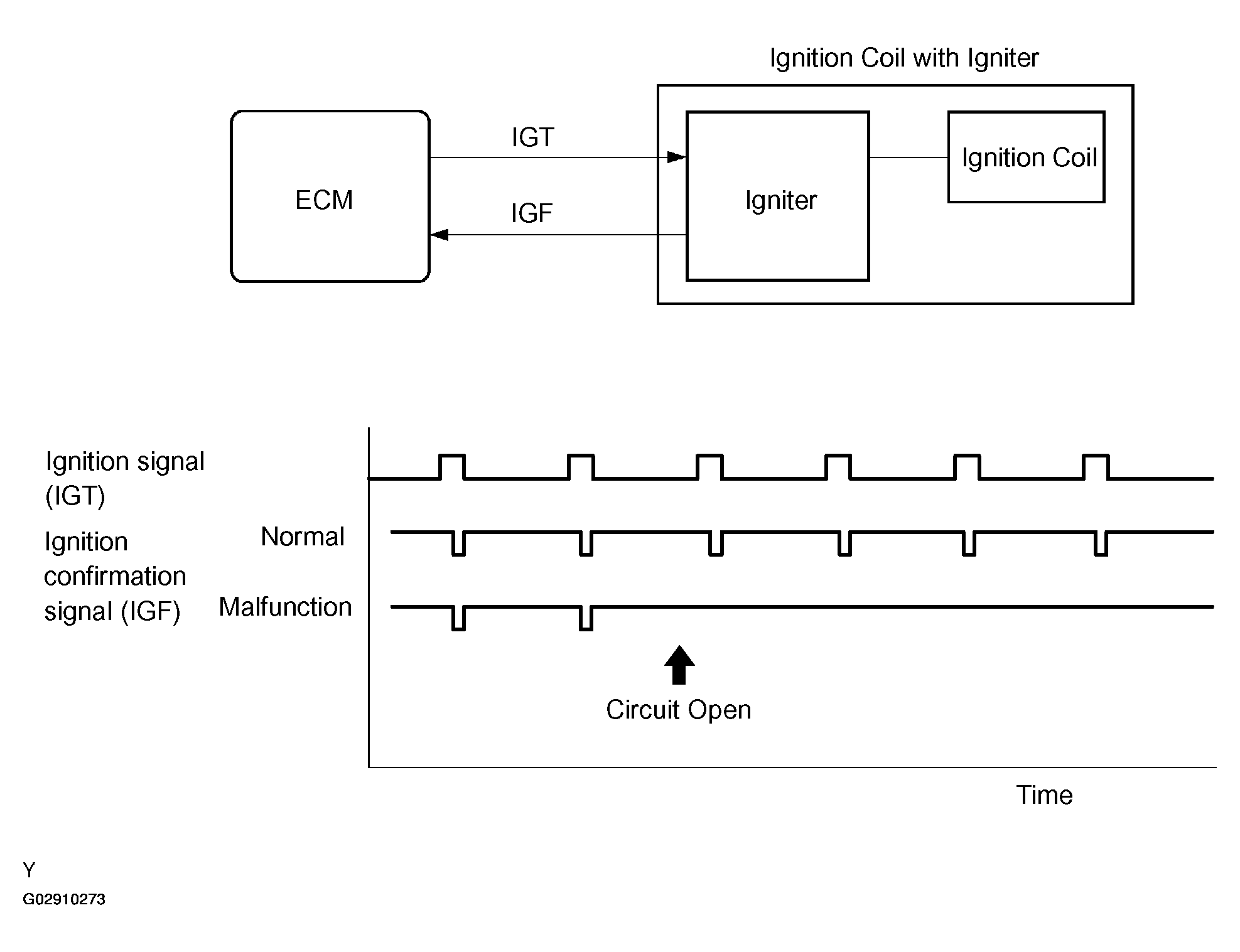

Fig 1: Identifying ECM And Ignition Signal Chart
G02910273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the ECM does not receive the IGF after sending the IGT it interprets this as a fault in the igniter and sets a DTC.
