Integration Control & Panel ASSY: Components

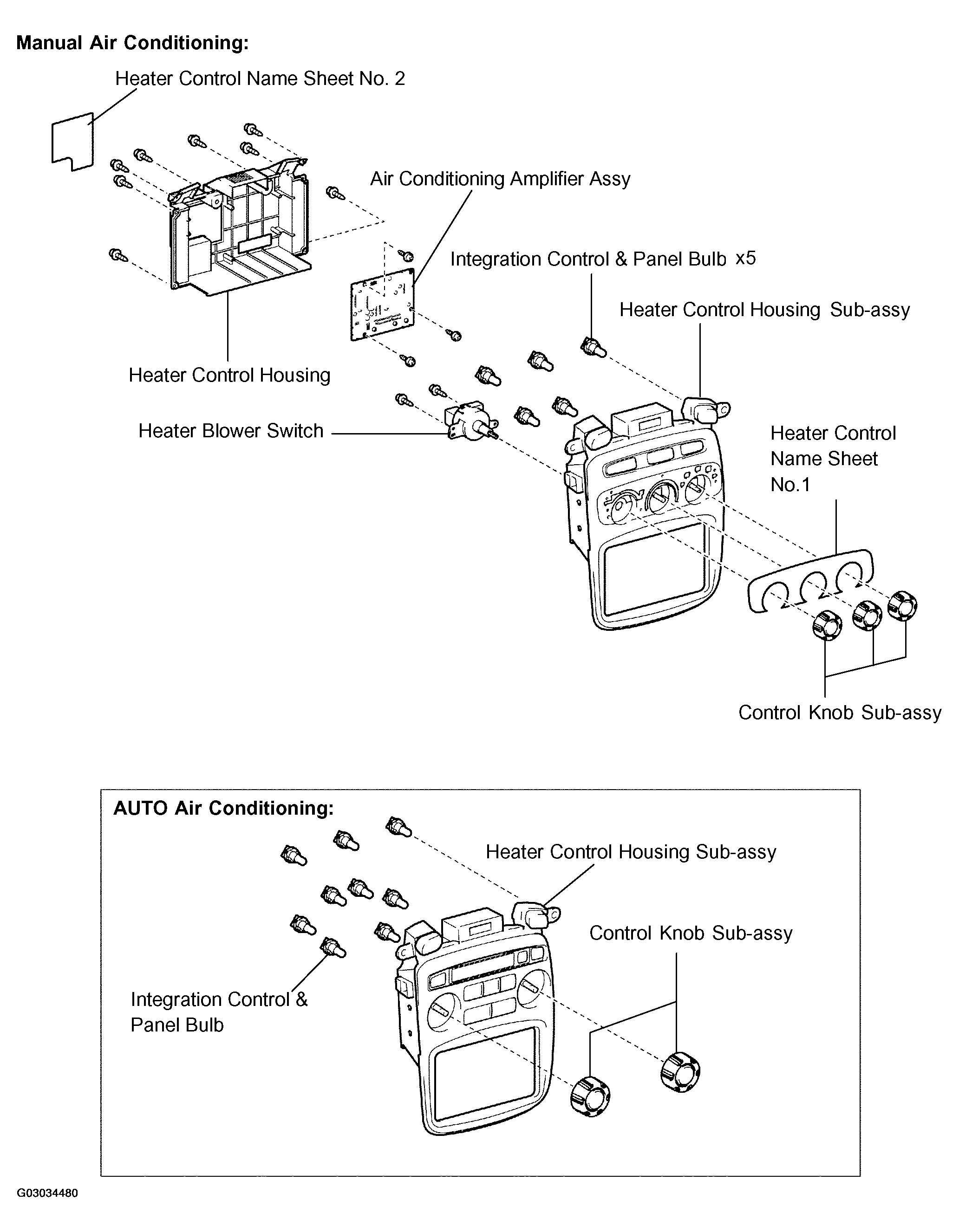

Fig 1: Locating Integration Control Panel Assy Components

G03034480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
