Cooler Compressor ASSY (2AZ-FE): Components

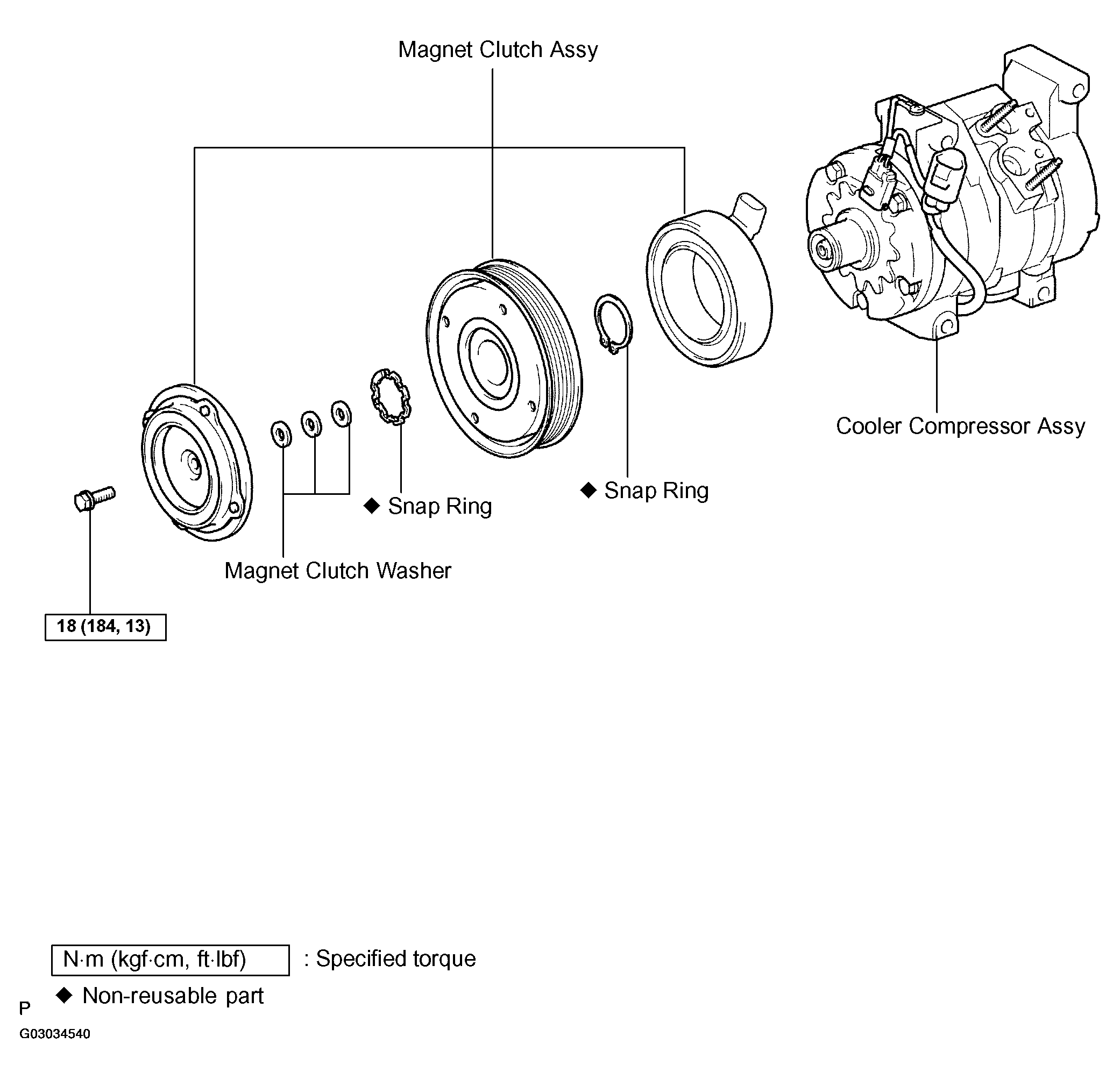

Fig 1: Locating Cooler Compressor Assembly Components

G03034540

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
