Air Conditioning Radiator ASSY: Components

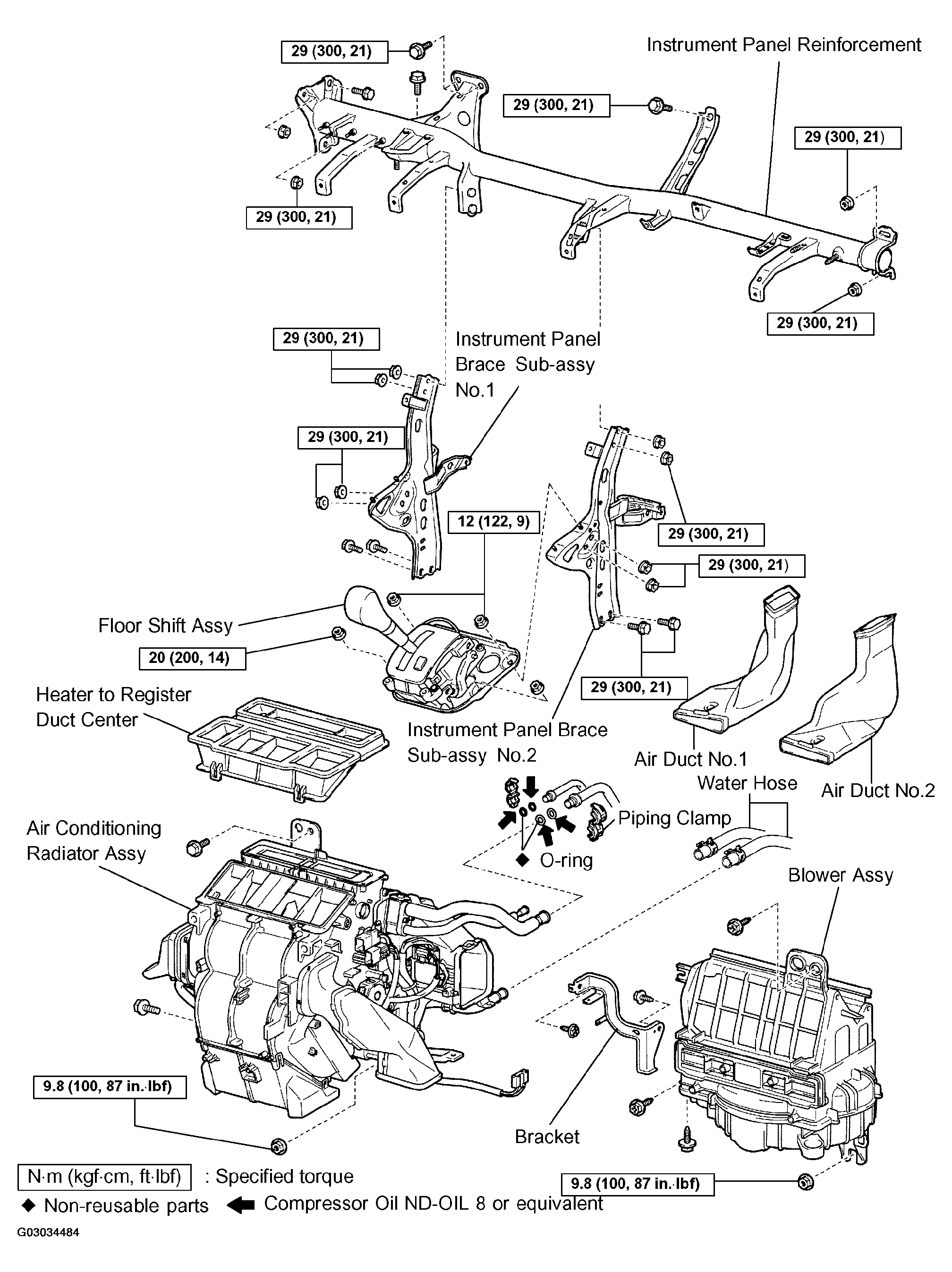

Fig 1: Locating Air Condition Radiator Assembly Components
G03034484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

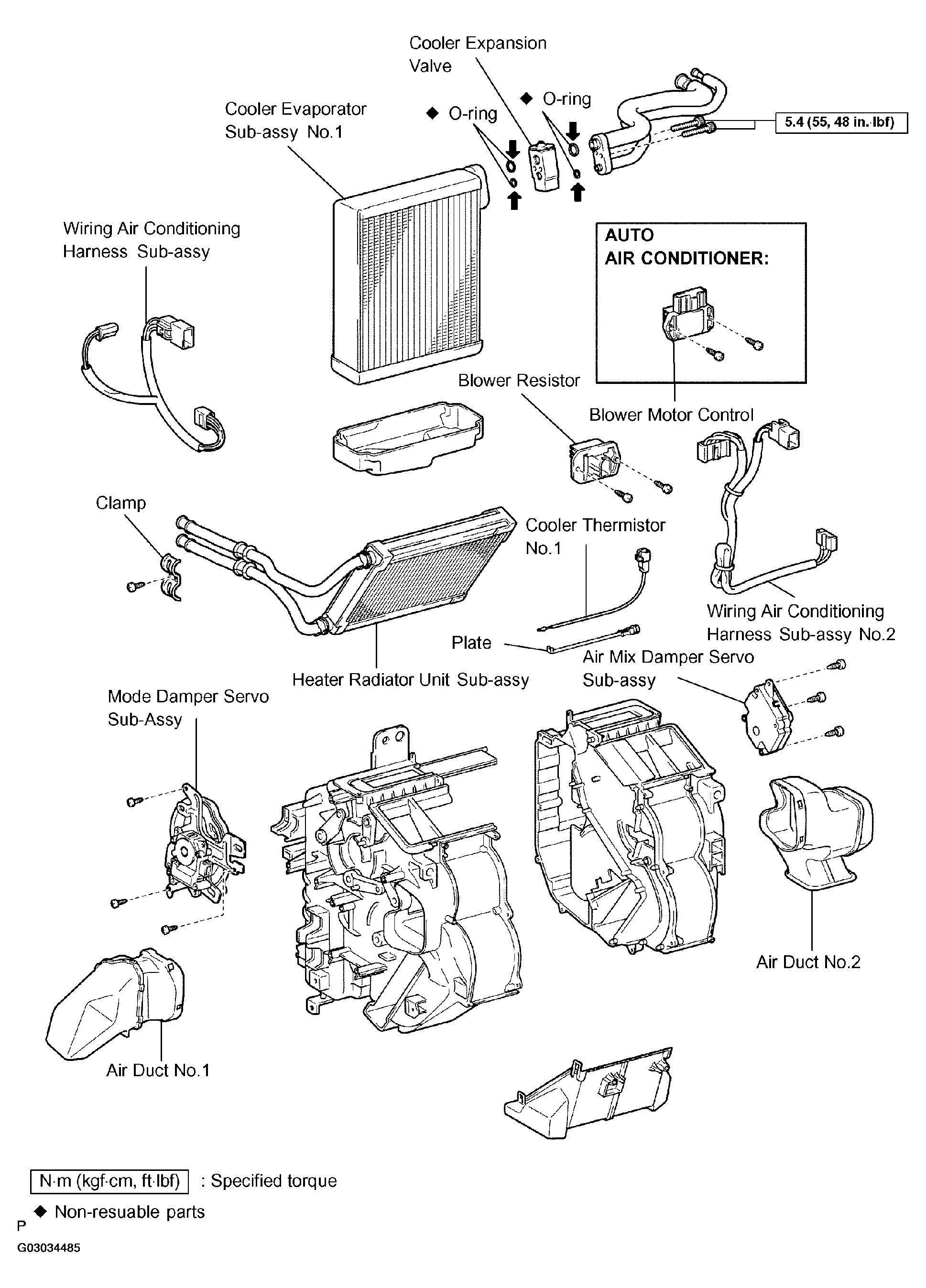

Fig 2: Locating Air Condition Radiator Assembly Components
G03034485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
