Section 7 (Emission Control System (2AZ-FE))
>>
System Diagram
System Diagram
WARNING:
This page is about a different variant/trim than selected.
The emission control system is determined by the ECM based on signals from various sensors.

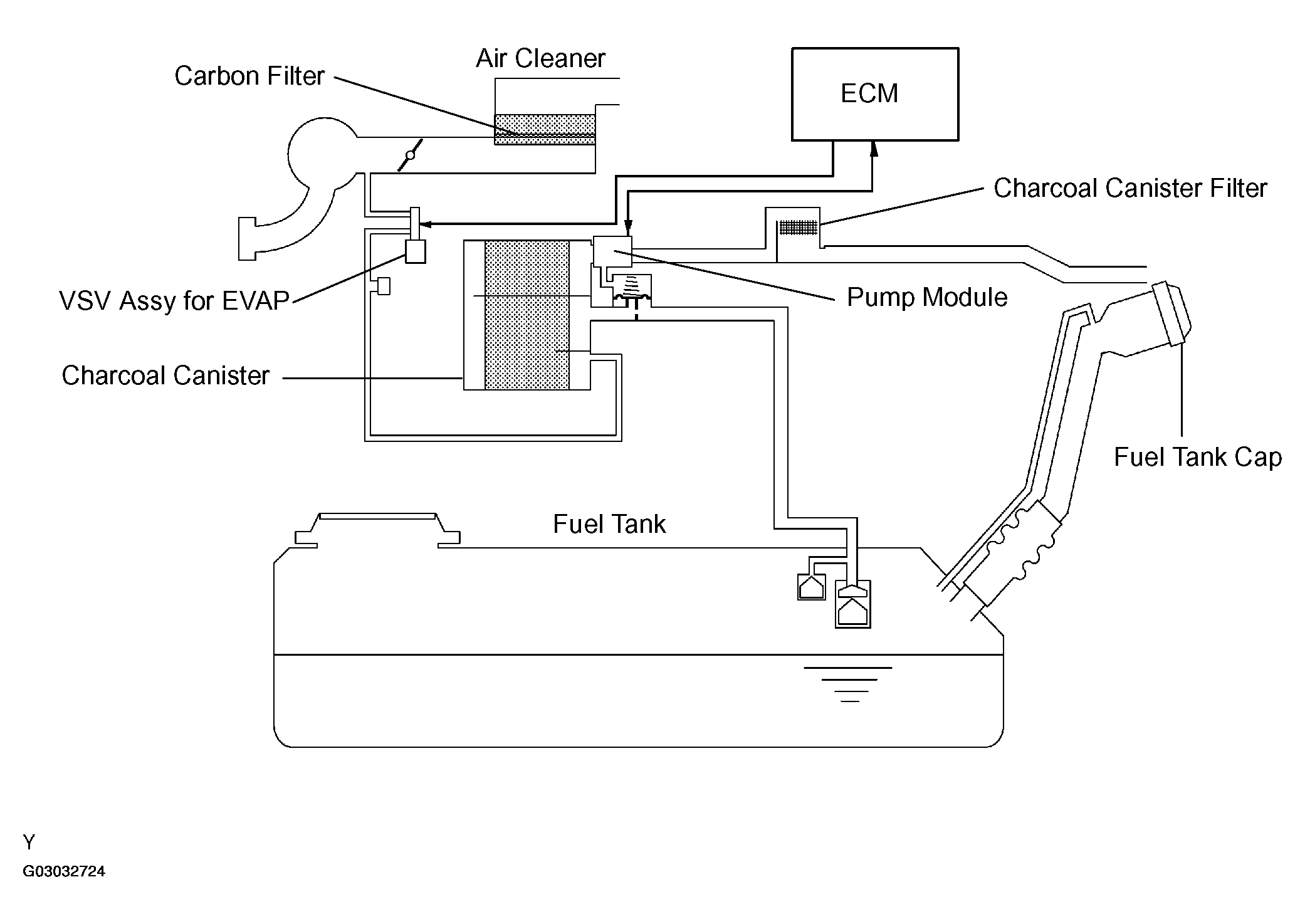

Fig 1: Identifying System Diagram Of Emission Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
