On-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT AIR-FUEL RATIO COMPENSATION SYSTEM
    1. Measure the voltage between the terminals of the ECM connectors.

      Standard:

      SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E8-23 (A1A+) -E9-1(E1) Ignition switch ON 3.3 V
      E8-31 (A1A-) -E9-1(E1) Ignition switch ON 2.9 V
      NOTE: Connect test leads to the connector's backside. The connectors should not be disconnected from the ECM.

      HINT:

      Voltage between the terminals of the ECM is kept constant regardless of the voltage of the A/F sensor.

    2. Connect the hand-held tester to the DLC3.
    3. Select "DATA MONITOR". Then select "A/FS B1 S1", and "O2S B1 S2" to display the monitors.
    4. Warm up the A/F sensor with the engine speed at 2,500 RPM for approximately 2 minutes.

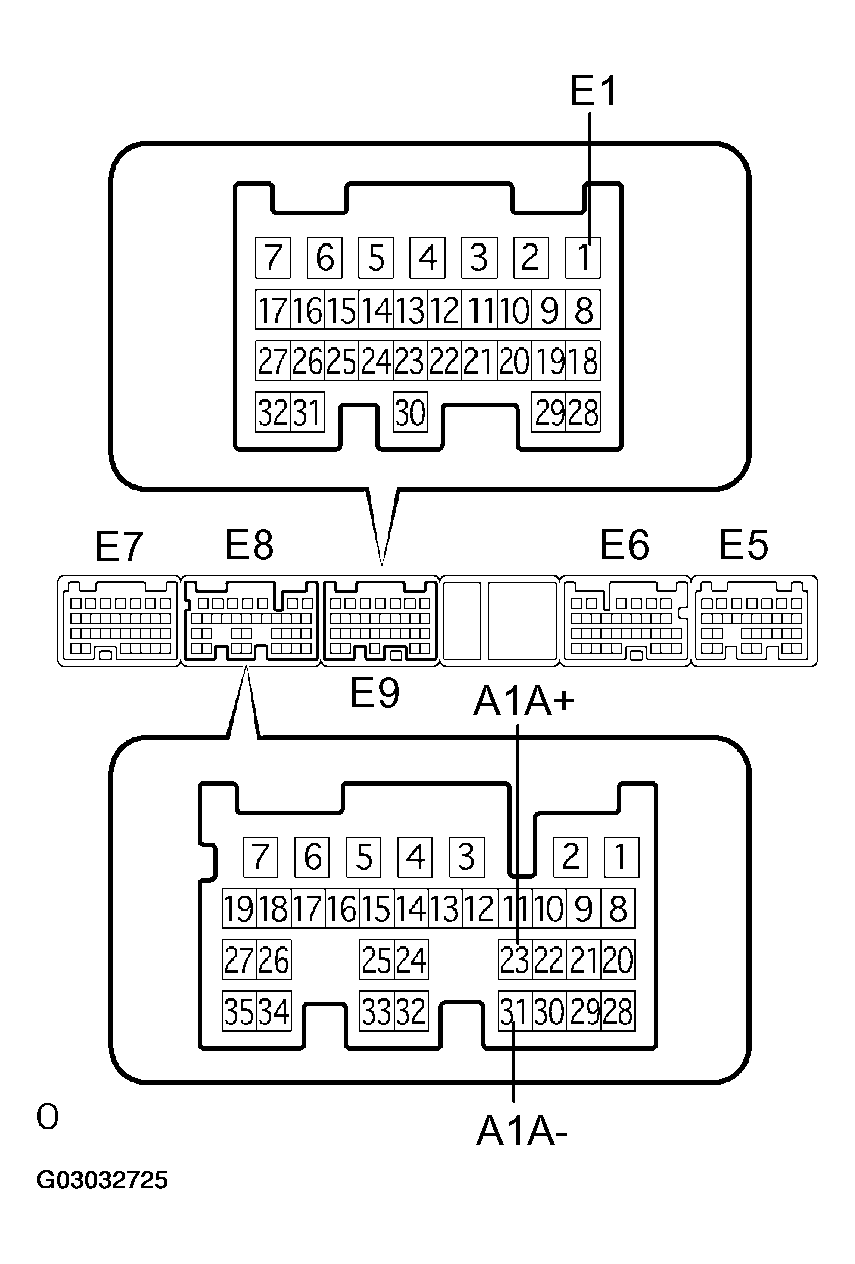

      Fig 1: Measuring Voltage Between Terminals Of ECM Connectors
      G03032725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Keep the engine speed at 2,500 RPM and confirm that the display of "A/FS B1 S1" is as shown in the illustration.

      HINT:

      • The illustration may slightly differ from the display on the hand-held tester.
      • Only the hand-held tester displays the waveform of the A/F sensor.
    6. Confirm that the display of "O2S B1 S2" changes between 0 to 1 V with the engine speed at 2,500 RPM.
    Fig 2: Displaying Waveform Of A/F Sensor
    G03032726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT FUEL CUT OFF/RESTART RPM
    1. Increase the engine speed to at least 3,500 RPM.
    2. Use a sound scope to check for the injector operating noise.
    3. When the accelerator pedal is released, injector operating noise stops momentarily and then resumes.

    Standard:

    SPECIFIED CONDITION CHART

    Item Specified Condition
    Fuel cut off RPM 2,500 RPM
    Fuel injector restart RPM 1,400 RPM

    If the result is not as specified, check for DTCs. If a DTC is present, follow the repair procedures according to the DTC.

  3. VISUALLY INSPECT HOSES, CONNECTIONS AND GASKETS
    1. Check for cracks, leaks or damage.

    HINT:

    Removal or problems with the engine oil dipstick, oil filler cap, PCV hose and other components may cause the engine to run improperly. Disconnection, looseness or cracks in the parts of the air induction system between the throttle body and cylinder head will allow air suction and cause the engine to run improperly. Be sure to check the areas indicated by the arrow marks. If necessary, replace any damaged parts.

    Fig 3: Inspecting Hoses, Connections And Gaskets
    G03032727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT FUEL CUTOFF VALVE AND FILL CHECK VALVE
    1. Disconnect the vent line hose from the fuel tank (see CHARCOAL CANISTER ASSY (2AZ-FE) ).
    2. Connect the pressure gauge to the fuel tank.
    3. Fill the fuel tank with fuel.
    4. Apply pressure of 4 kPa (41 gf/cm2 , 0.58 psi) to the vent port of the fuel tank.

      HINT:

      It is necessary to check the amount of fuel in the fuel tank. When the fuel tank is full, the float valve of the fill check valve is closed and no air can pass through.

    5. Remove the fuel tank cap, and check that pressure drops. If pressure does not drop, replace the fuel tank assembly.
    6. Reconnect the vent line hose to the fuel tank.

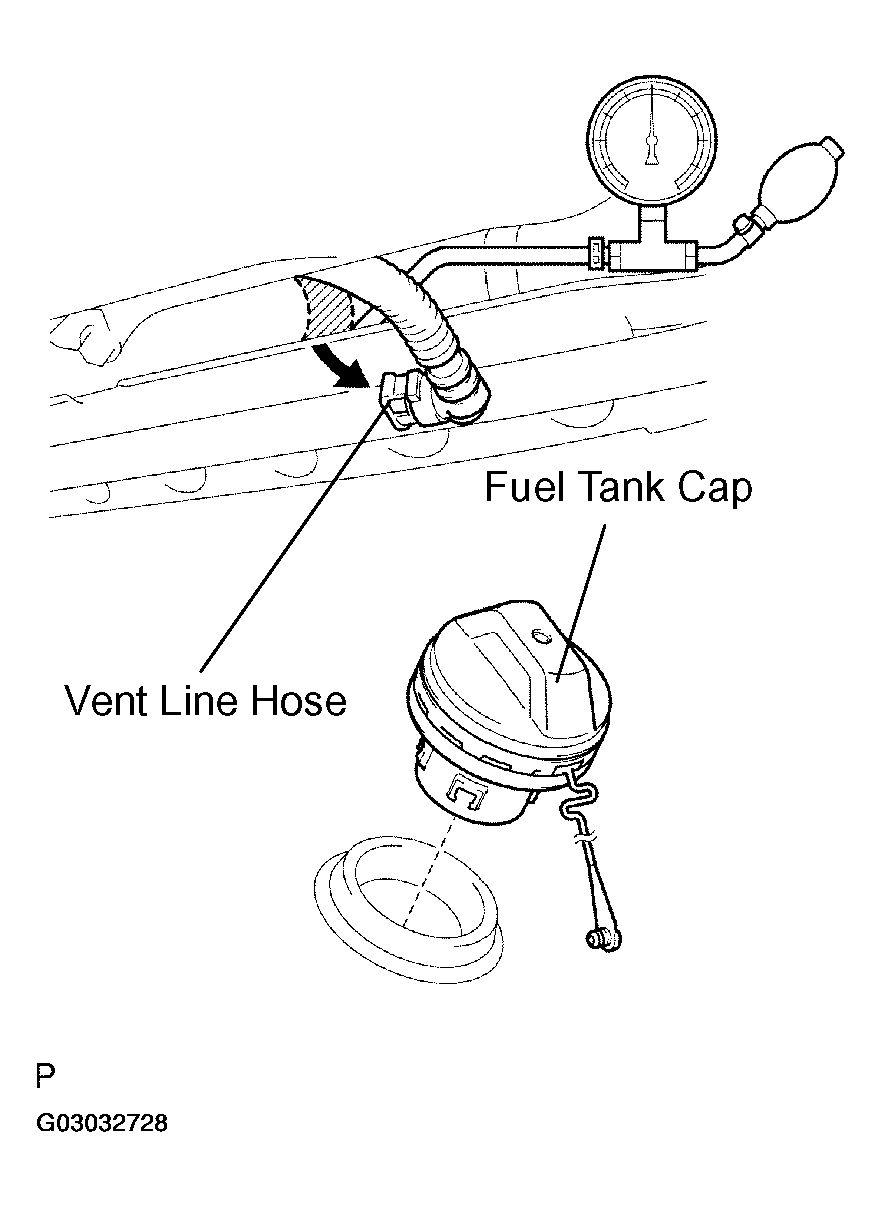

    Fig 4: Connecting Pressure Gauge To Fuel Tank
    G03032728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CHECK AIR INLET LINE
    1. Disconnect the air inlet line hose from the charcoal canister.
    2. Check that air can flow freely into the air inlet line.

      If air cannot flow freely into the air inlet line, repair or replace it.

    3. Reconnect the air inlet line hose to the charcoal canister.

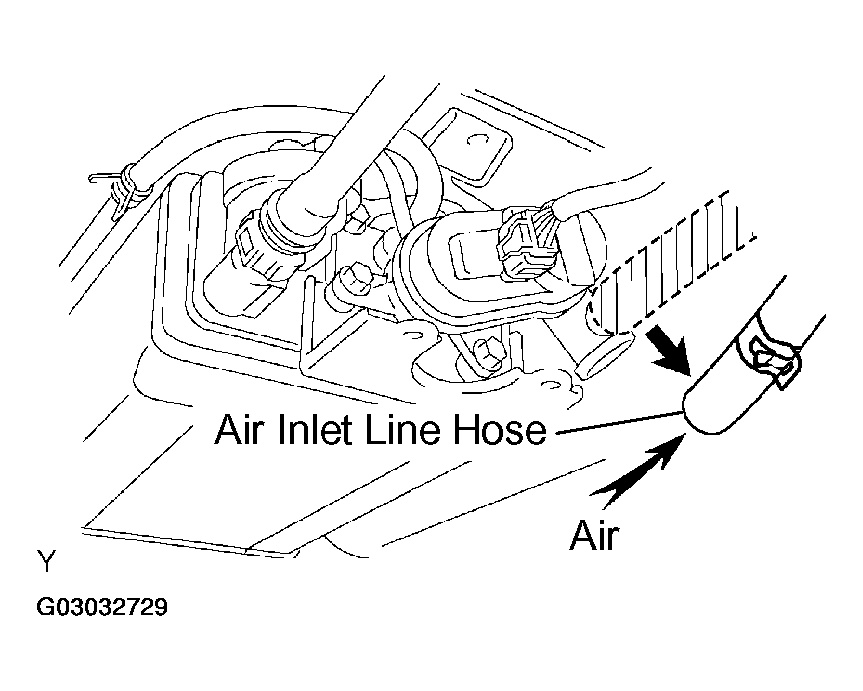

      Fig 5: Disconnecting Air Inlet Line Hose From Charcoal Canister
      G03032729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT PUMP MODULE (PRESSURE SENSOR)
    1. Measure the power source voltage of the ECM connectors.

      Standard:

      SPECIFIED CONDITION CHART

      Tester Connection Condition Specified Condition
      E7-18 (VC) - E7-28 (E2) Ignition switch ON 4.5 to 5.5 V

      If the voltage is not as specified, replace the ECM.

    2. Measure the power output of the ECM connectors.
      1. Remove the fuel tank cap.

        Standard:

        SPECIFIED CONDITION CHART

        Tester Connection Condition Specified Condition
        E5-21 (PPMP) - E7-28 (E2) Ignition switch ON 1.425 to 4.150 V

        If the voltage is not as specified, replace the ECM.

      2. Install the fuel tank cap.

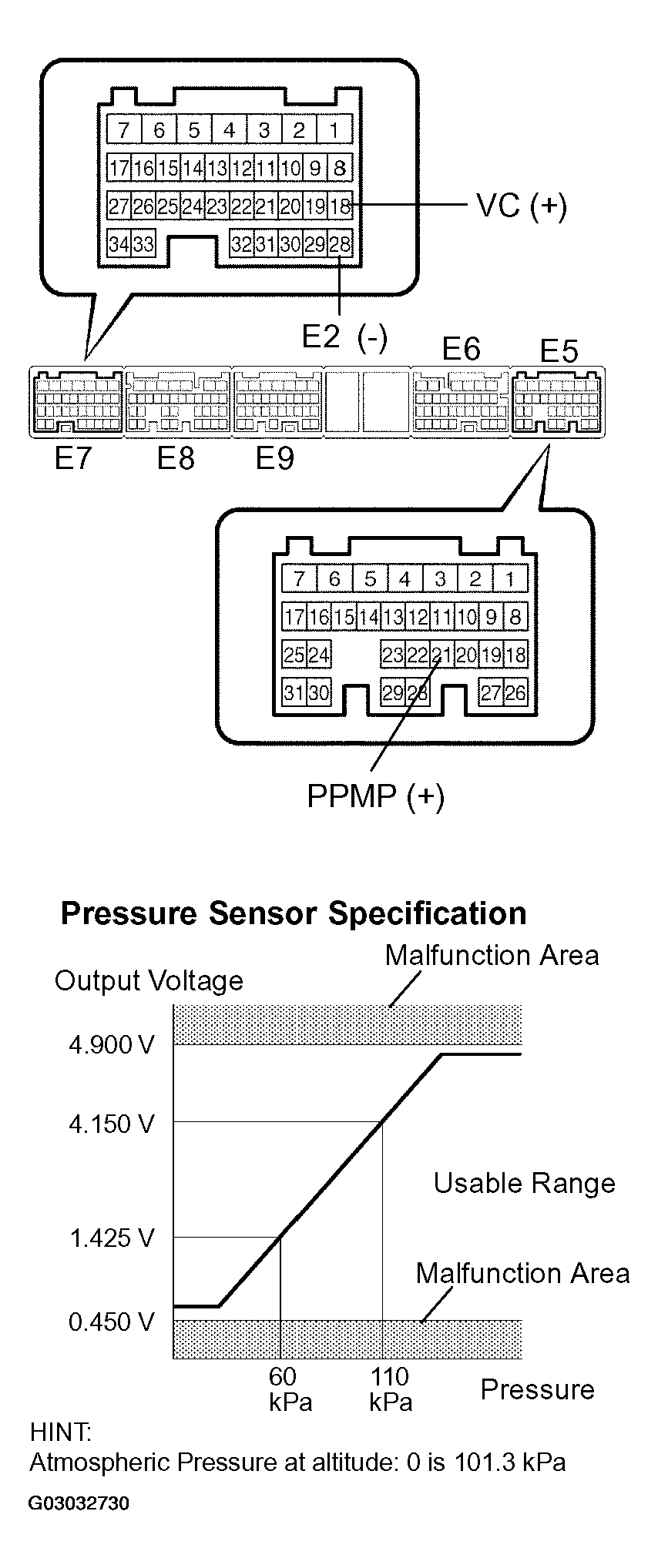

      Fig 6: Measuring Power Output Of ECM Connectors
      G03032730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
