Charcoal Canister ASSY (2AZ-FE): Replacement

WARNING: This page is about a different variant/trim than selected.

REMOVE EXHAUST PIPE ASSY CENTER
1. Remove the 4 bolts and 2 compression springs.
2. Remove the exhaust pipe center from the 4 exhaust pipe supports.
3. Remove the 2 gaskets from the exhaust pipe front and exhaust pipe center.

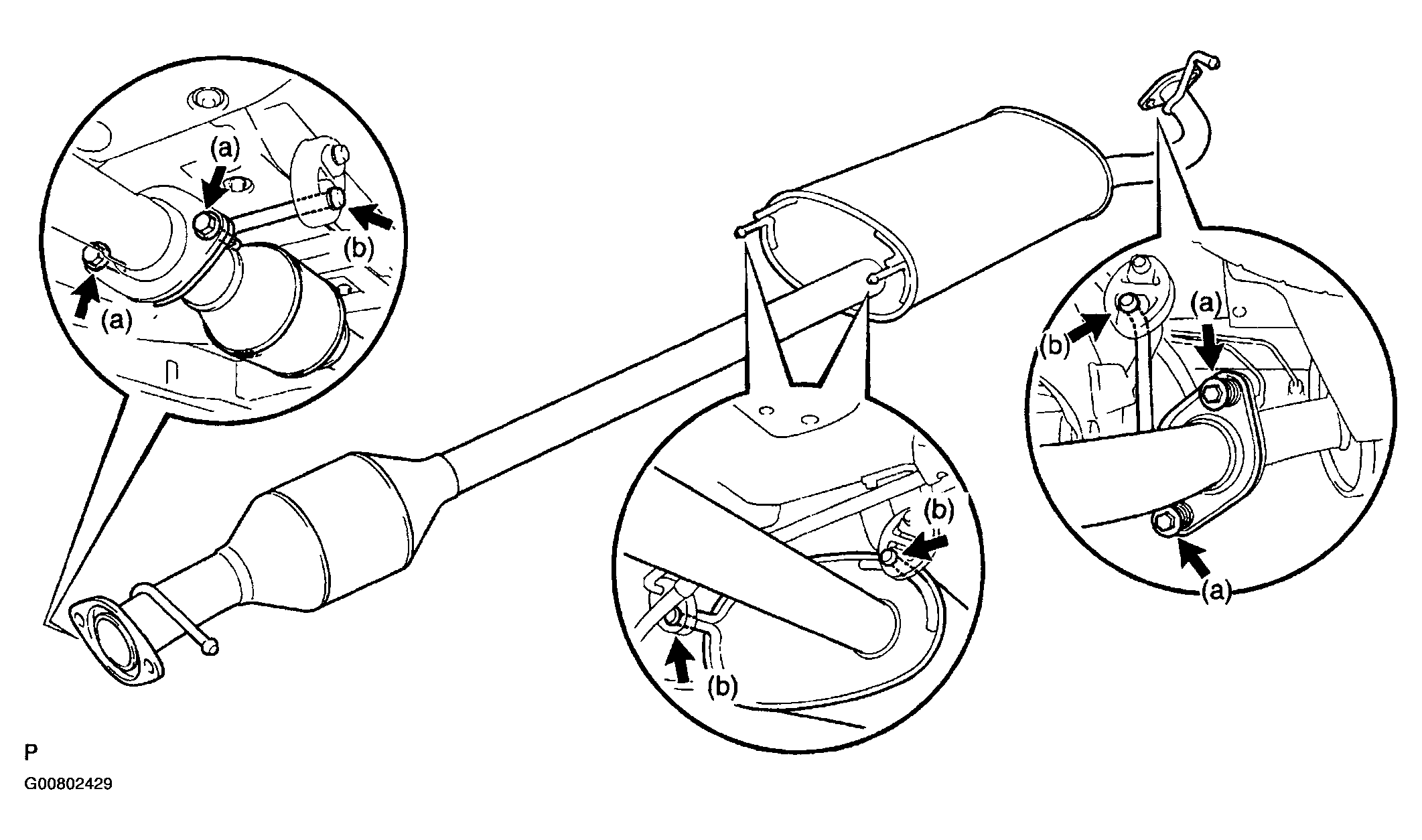

Fig 1: Removing Exhaust Pipe Assy Center
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT FLOOR HEAT INSULATOR NO. 3
1. Remove the 4 bolts and heat insulator.

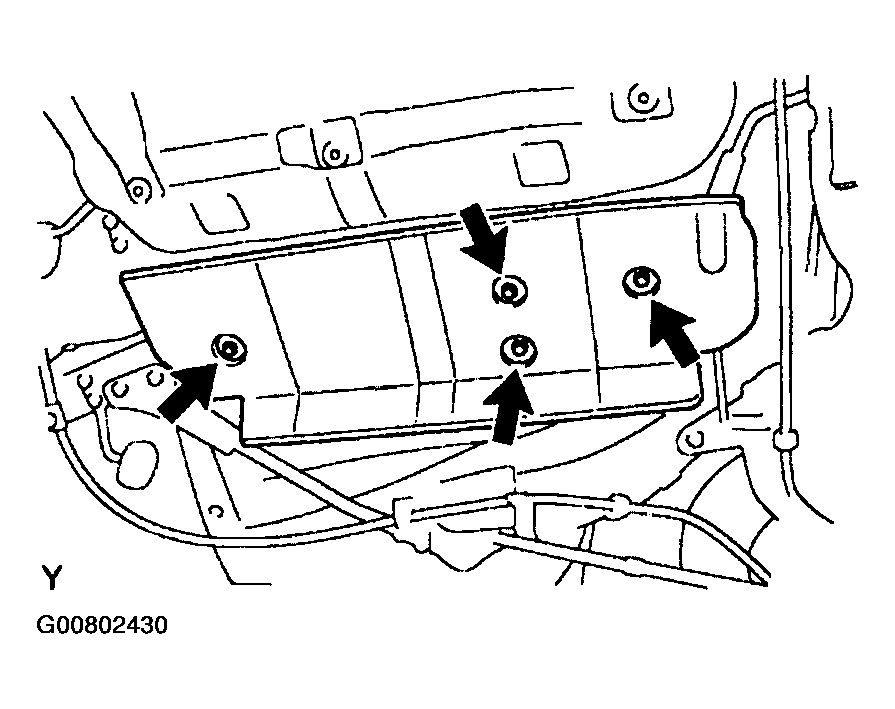

Fig 2: Removing Heat Insulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CHARCOAL CANISTER ASSY
1. Disconnect the pump module connector.
2. Disconnect the fuel emission hose.
3. Disconnect the air inlet line hose.

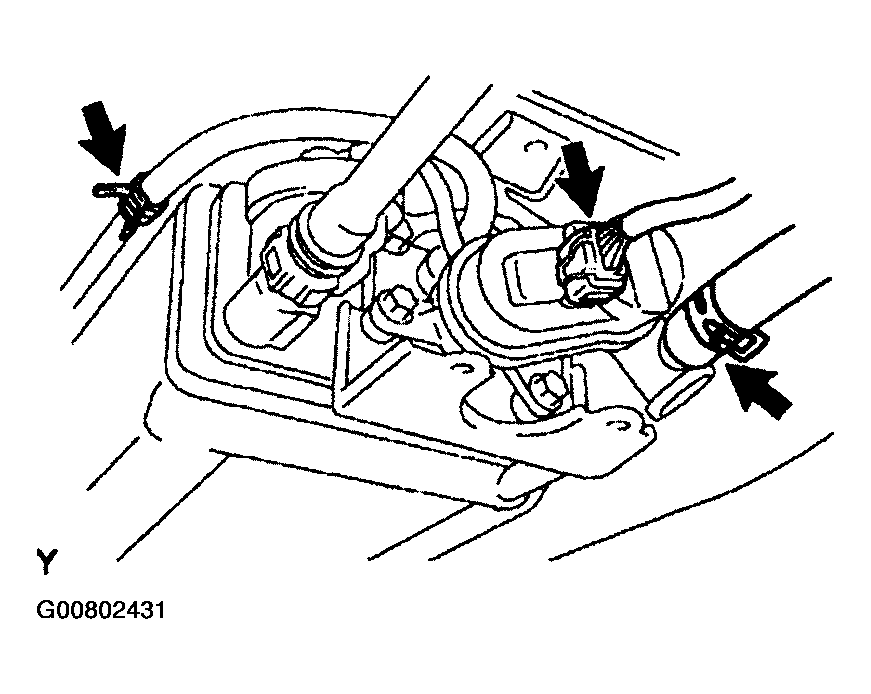

  Fig 3: Disconnecting Pump Module Connector, Fuel Emission Hose & Air Inlet Line Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the fuel tank vent hose.
  1. Push the connector deeply into the charcoal canister to release the locking tab.
  2. Pinch portion A.
  3. Pull out the connector.

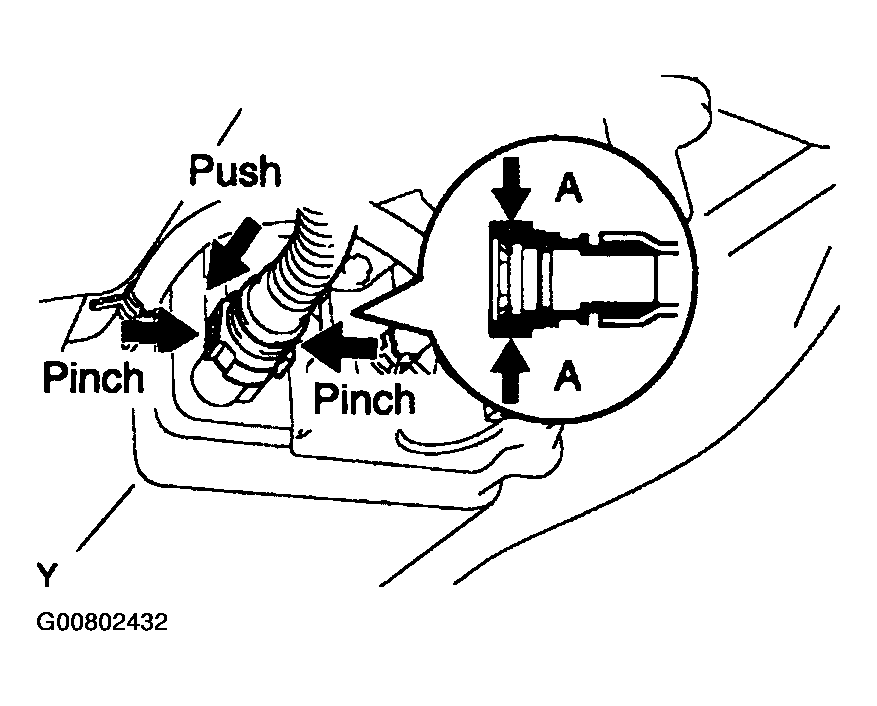

  Fig 4: Disconnecting Fuel Tank Vent Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 3 nuts and charcoal canister.
INSTALL CHARCOAL CANISTER ASSY
1. Install the charcoal canister with the 3 nuts.
  - Torque: 5.5 N.m (56 kgf.cm, 49 in..lbf)

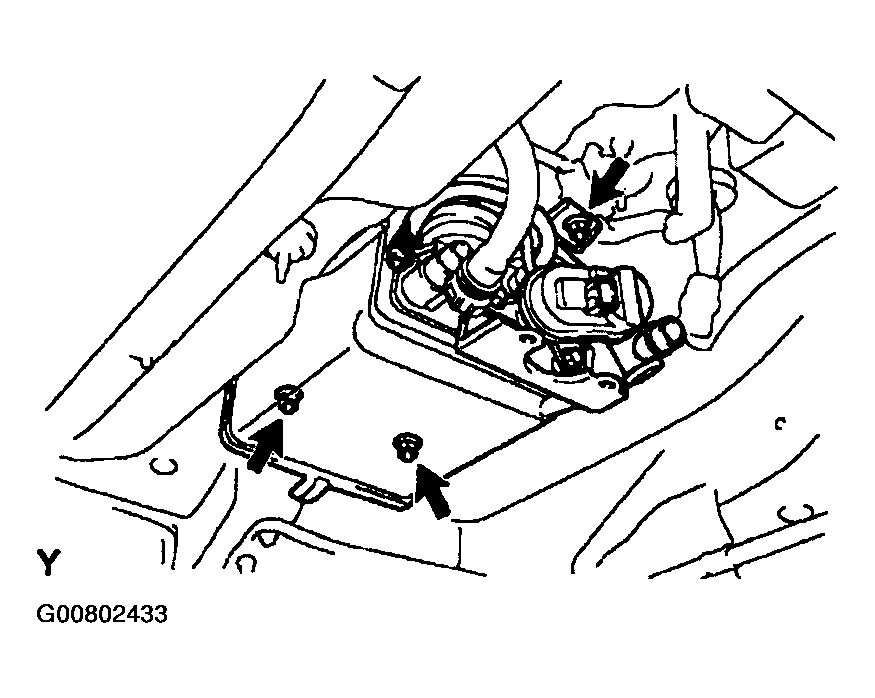

Fig 5: Installing Charcoal Canister With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FLOOR HEAT INSULATOR NO.3
1. Install the heat insulator with the 4 nuts.
  - Torque: 4.9 N.m (50 kgf.cm, 43 in..lbf)

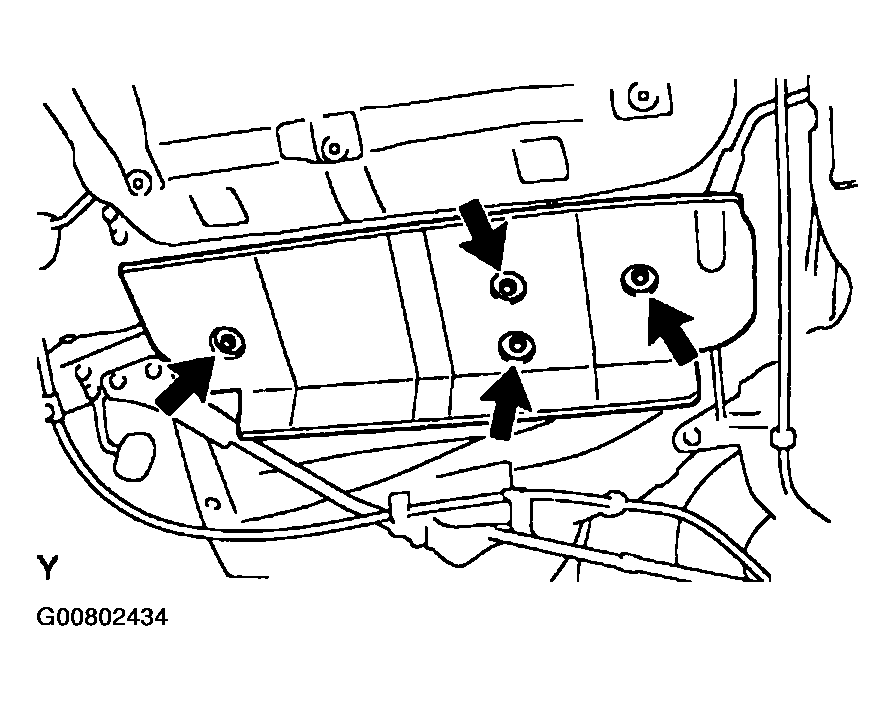

Fig 6: Installing Heat Insulator With Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL EXHAUST PIPE ASSY CENTER
1. Install the exhaust pipe center to the 4 exhaust pipe supports.
2. Install a new gasket and the pipe center to the pipe front with the 2 bolts.
  - Torque: 56 N.m (571 kgf.cm, 41 ft.lbf)
3. Using a vernier caliper, measure the free length of the compression spring.

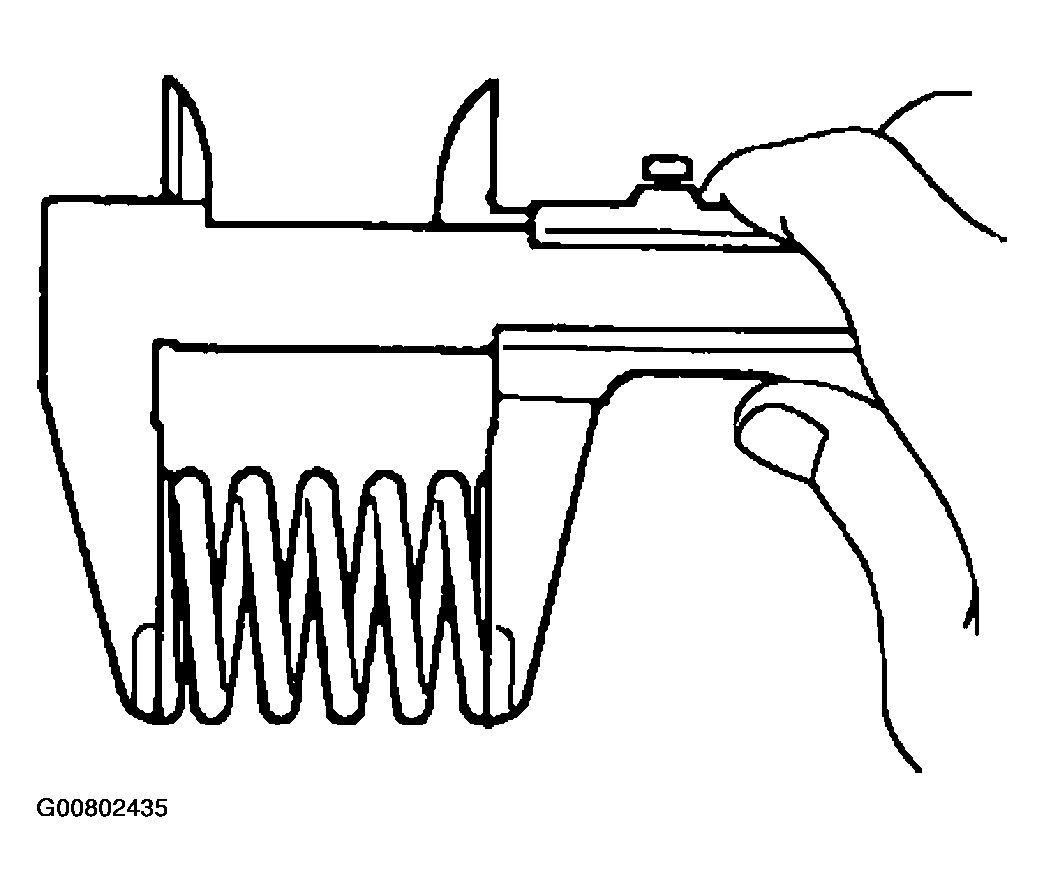

  Fig 7: Measuring Free Length Of Compression Spring Using Vernier Caliper
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - Minimum length:40.5 mm (1.594 in.) for center to tail
  If the free length is less than minimum, replace the compression spring.
4. Install a new gasket and the pipe center to the pipe tail with the 2 bolts and 2 compression springs.
  - Torque: 48 N.m (489 kgf.cm, 35 ft.lbf)
CHECK FOR EXHAUST GAS LEAKS
If gas is leaking, tighten the areas necessary to stop the leak. If damaged, replace it.
