Section 6 (Accelerator Pedal Rod Assembly (2AZ-FE)): Replacement

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE ACCELERATOR PEDAL ROD ASSY
    1. Disconnect the accelerator pedal position sensor connector.
    2. Remove the 2 bolts and pedal rod.
  2. INSTALL ACCELERATOR PEDAL ROD ASSY
    1. Install the pedal rod with the 2 bolts.
      1. Torque: 4.9 N.m (50 kgf.cm, 43 in..lbf)
    2. Connect the accelerator pedal position sensor connector.

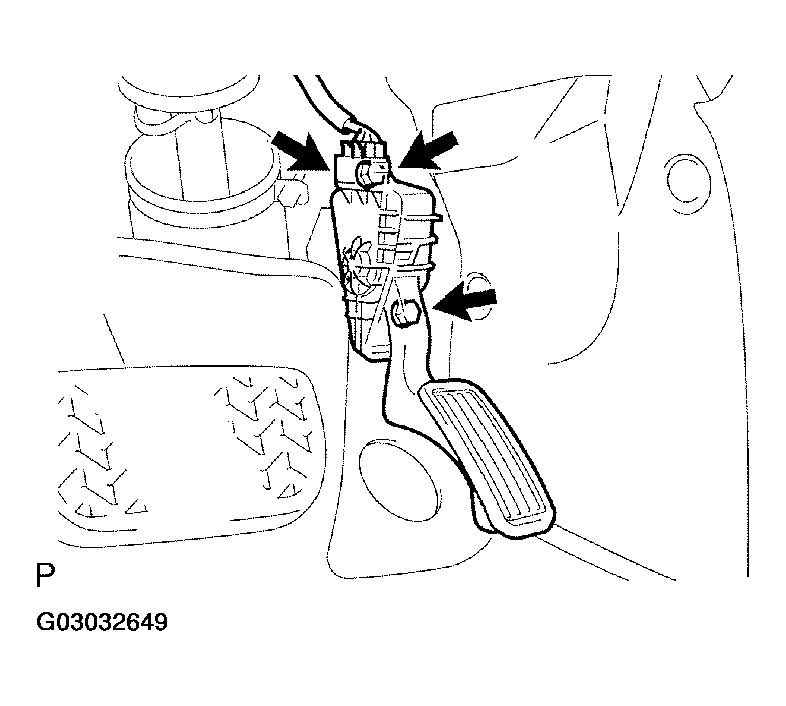

    Fig 1: Disconnecting Accelerator Pedal Position Sensor Connector
    G03032649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
