Section 4 (Throttle Body Assembly (2AZ-FE)): Components

WARNING: This page is about a different variant/trim than selected.

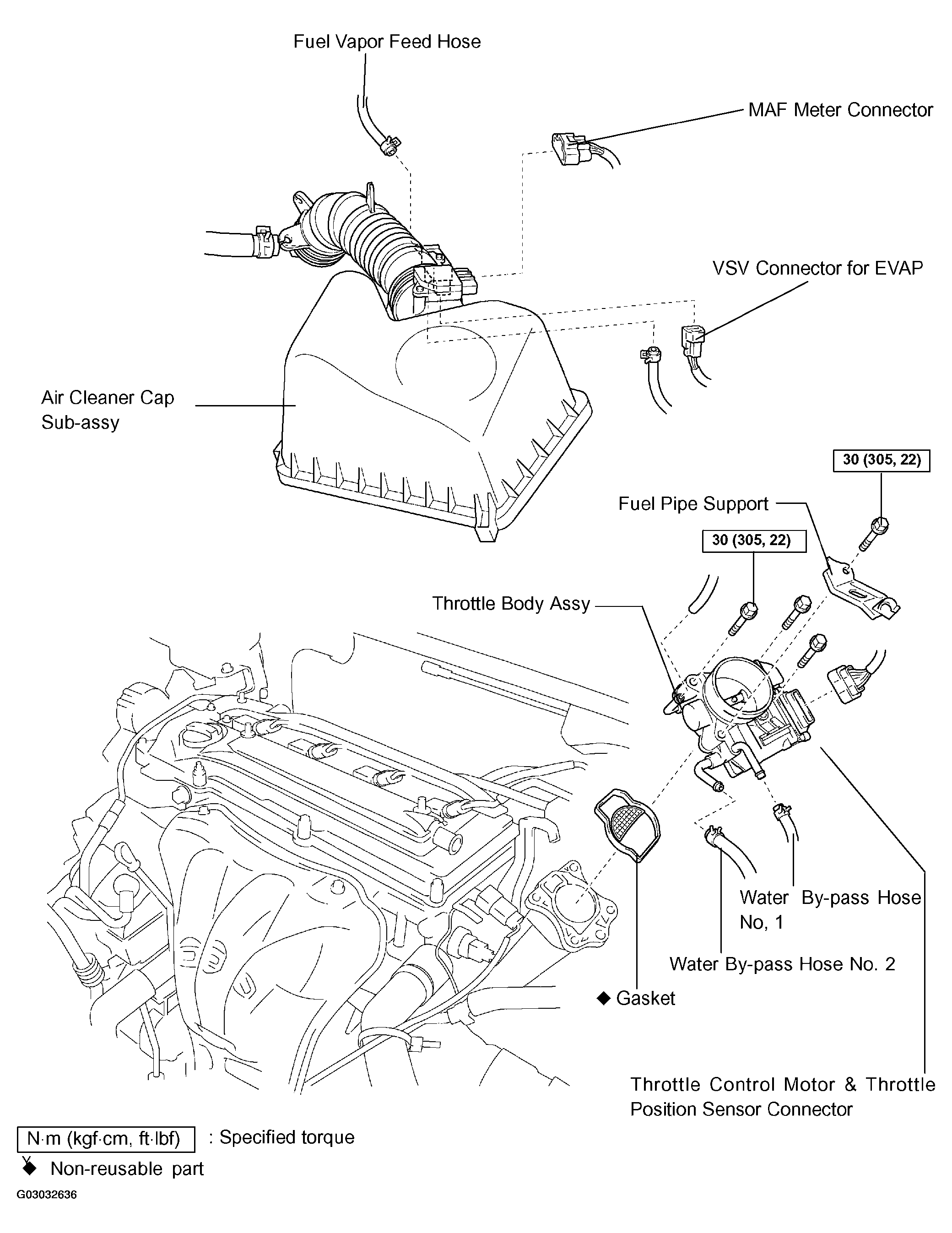

Fig 1: Identifying Throttle Body Assy (2AZ-FE) Components
G03032636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
