Partial Engine Assembly, Intake Manifold, Exhaust Manifold (2AZ-FE): Components

WARNING: This page is about a different variant/trim than selected.

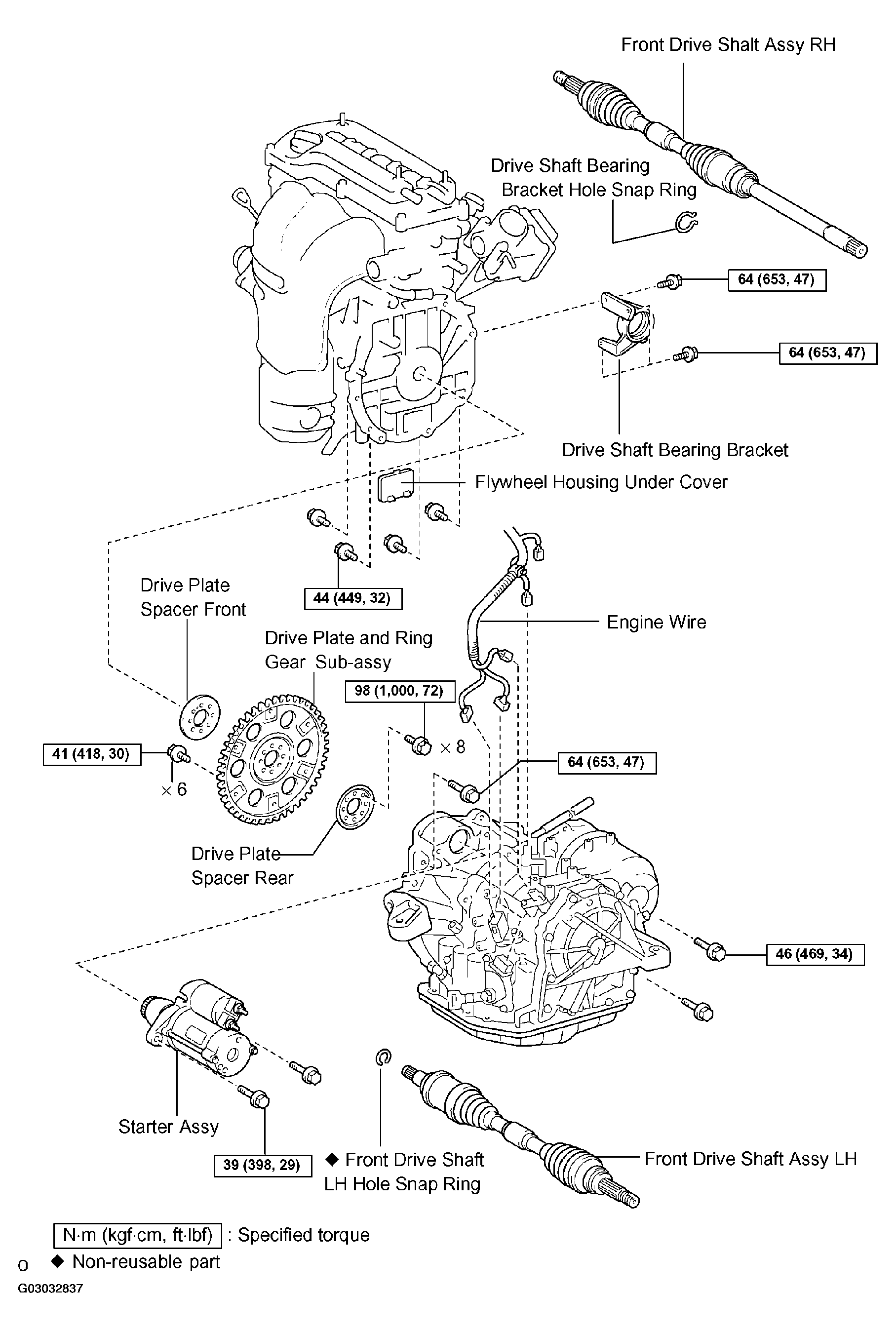

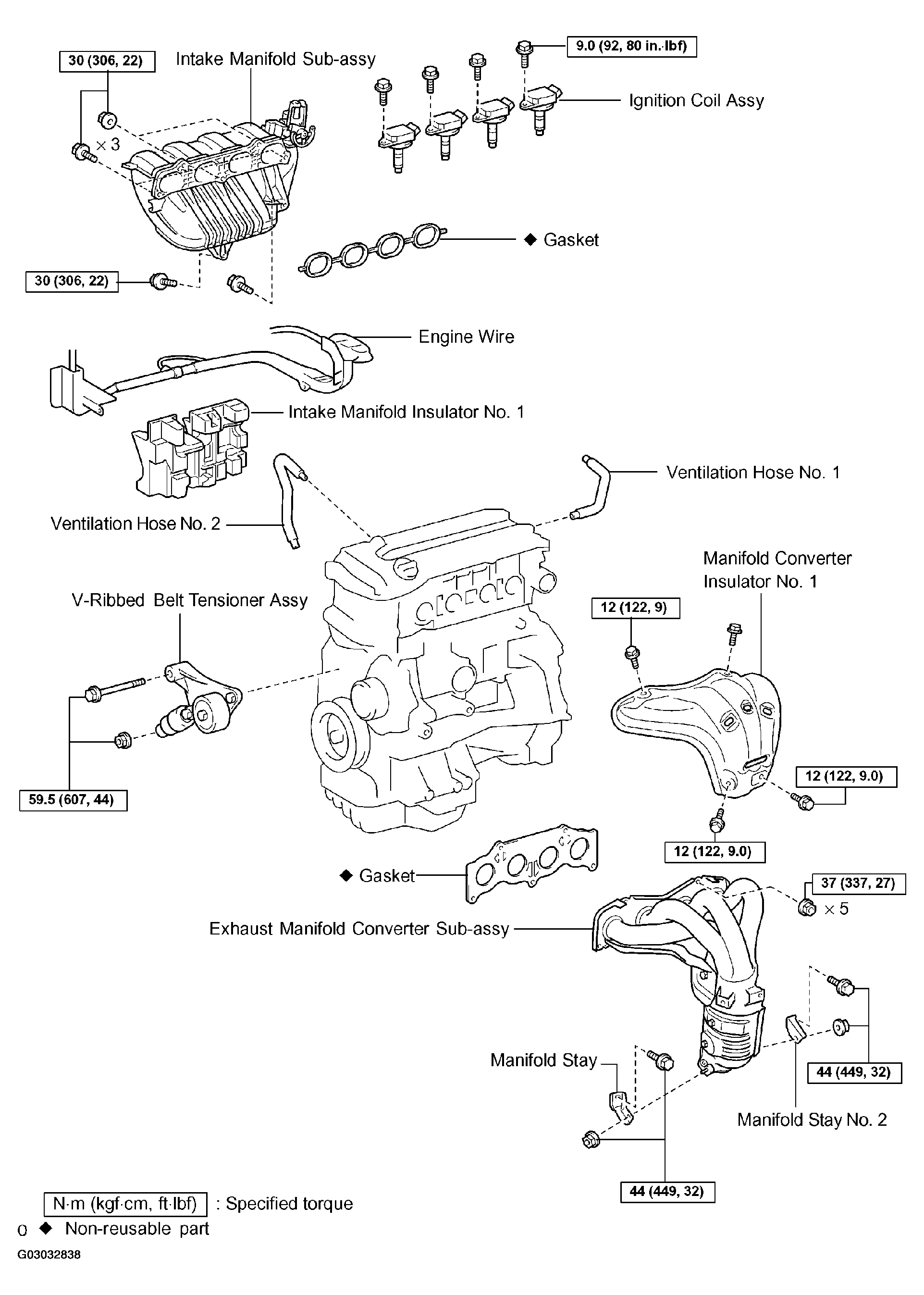

Fig 1: Identifying Partial Engine Assembly Components (2AZ-FE) (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

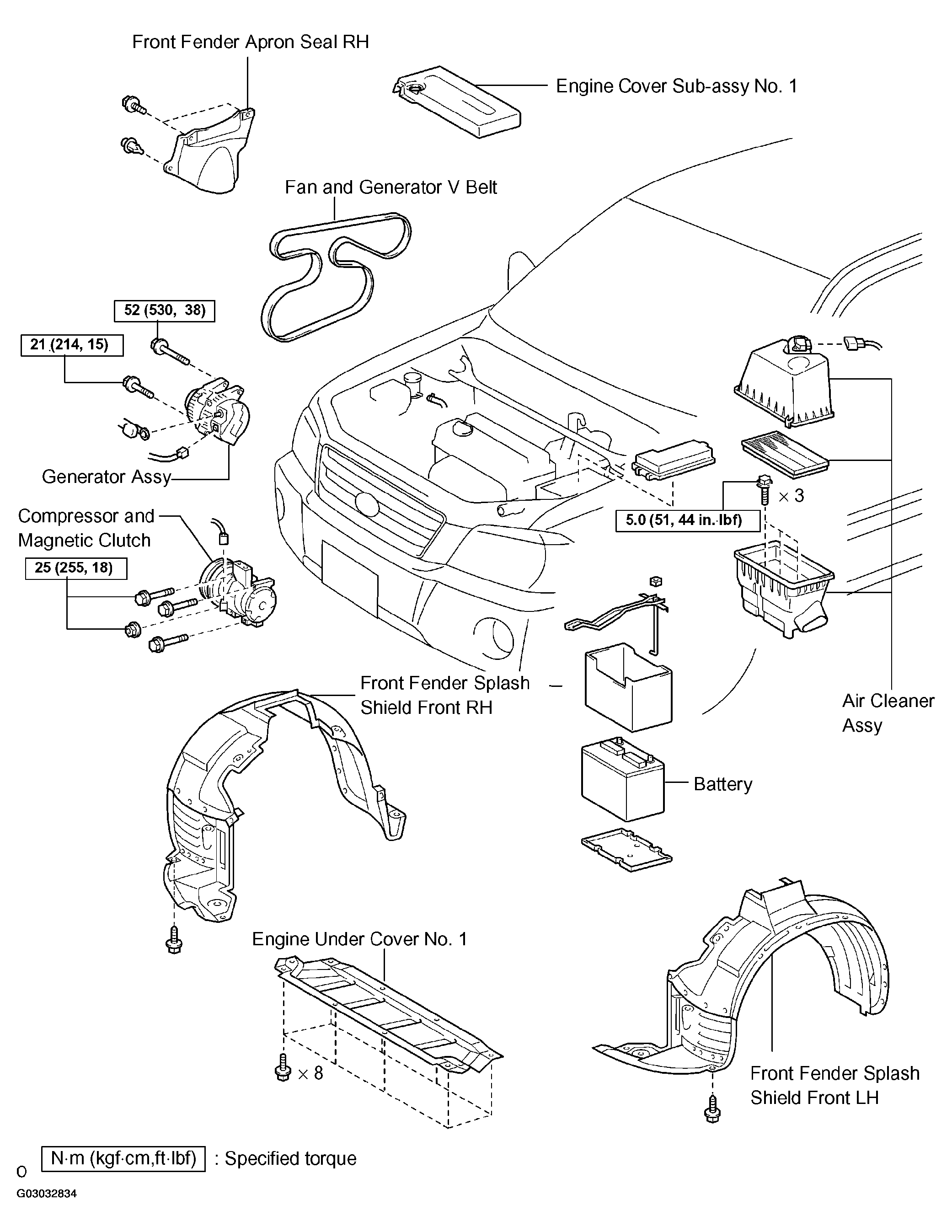

Fig 2: Identifying Partial Engine Assembly Components (2AZ-FE) (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

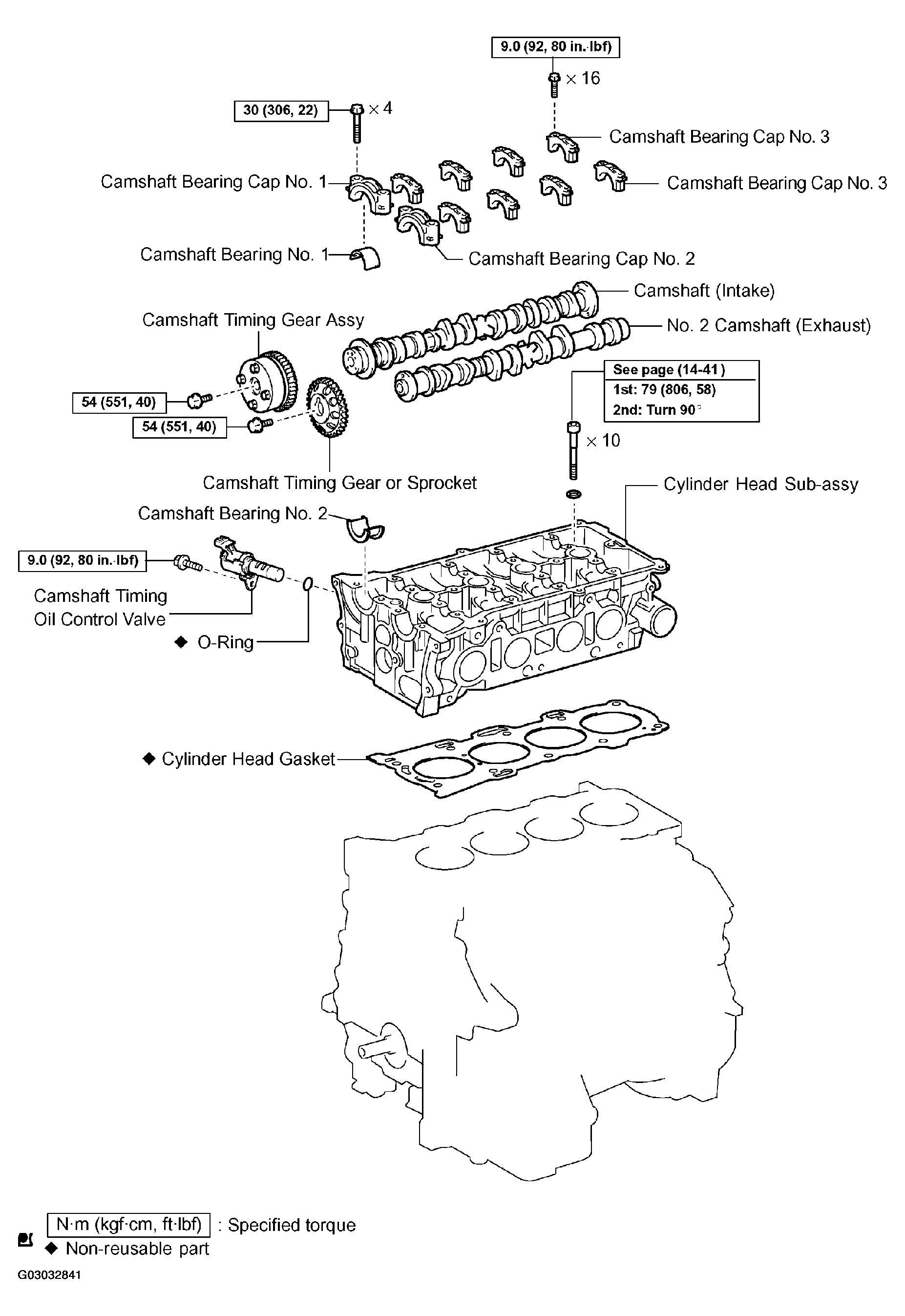

Fig 3: Identifying Partial Engine Assembly Components (2AZ-FE) (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

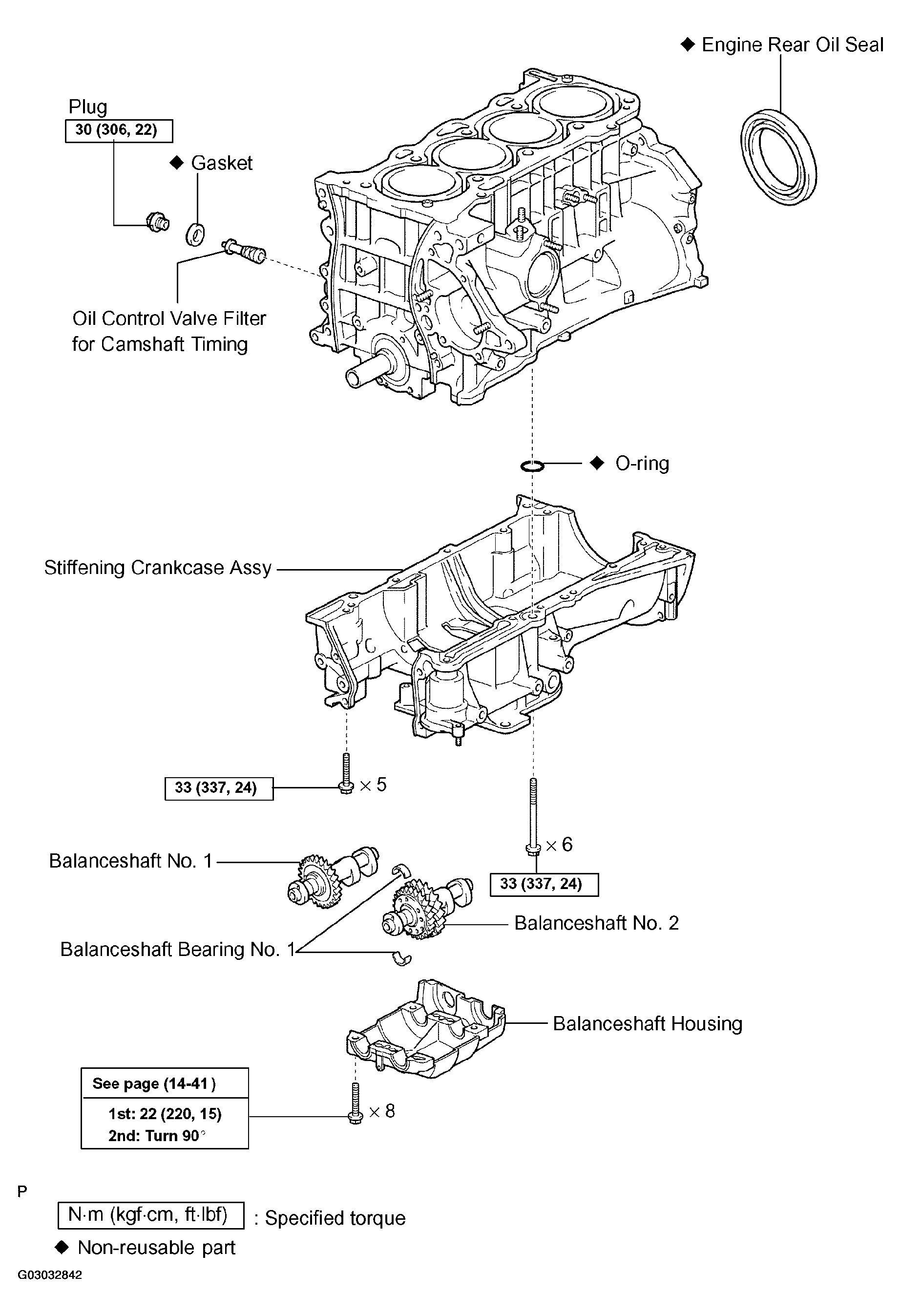

Fig 4: Identifying Partial Engine Assembly Components (2AZ-FE) (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

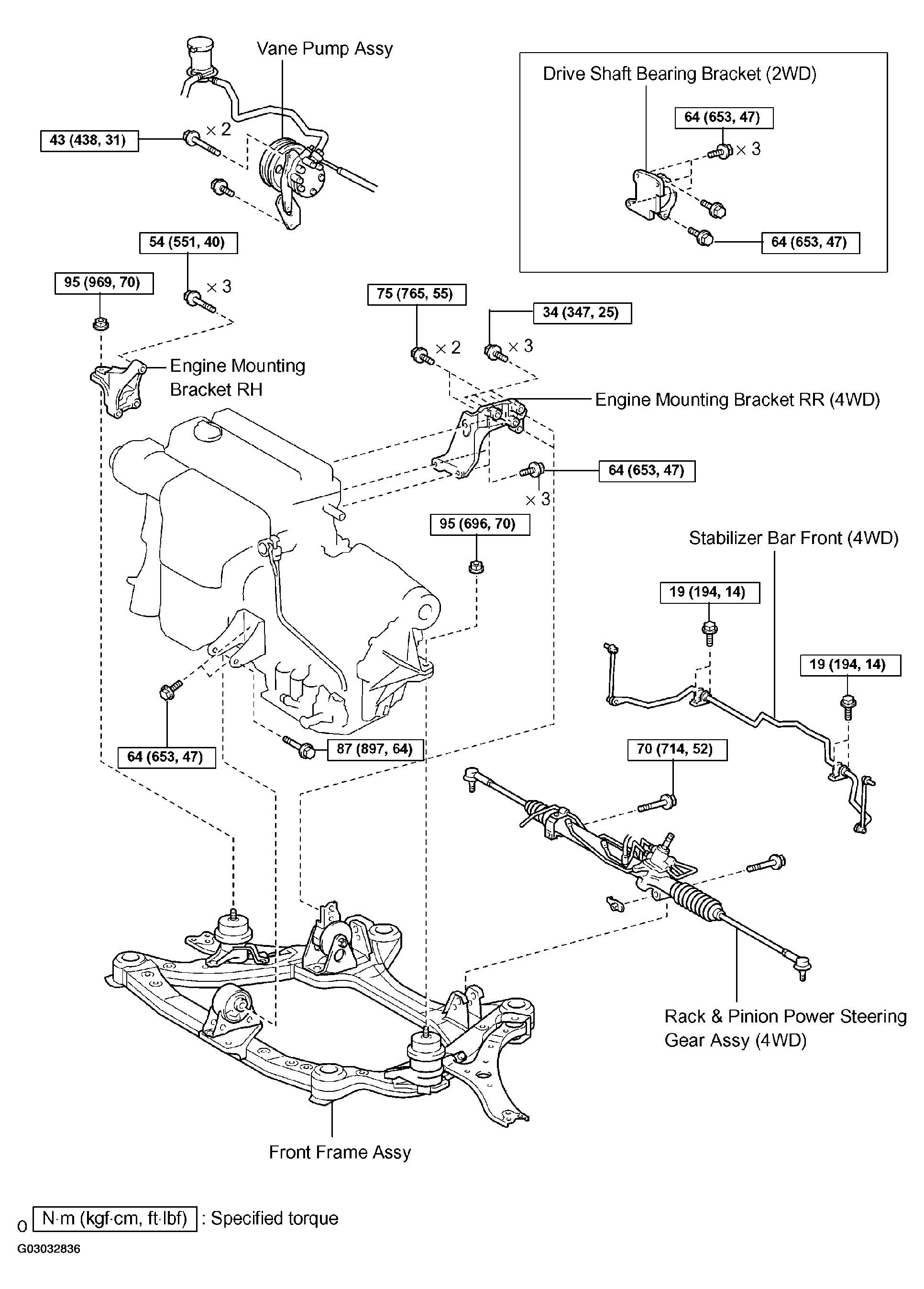

Fig 5: Identifying Partial Engine Assembly Components (2AZ-FE) (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

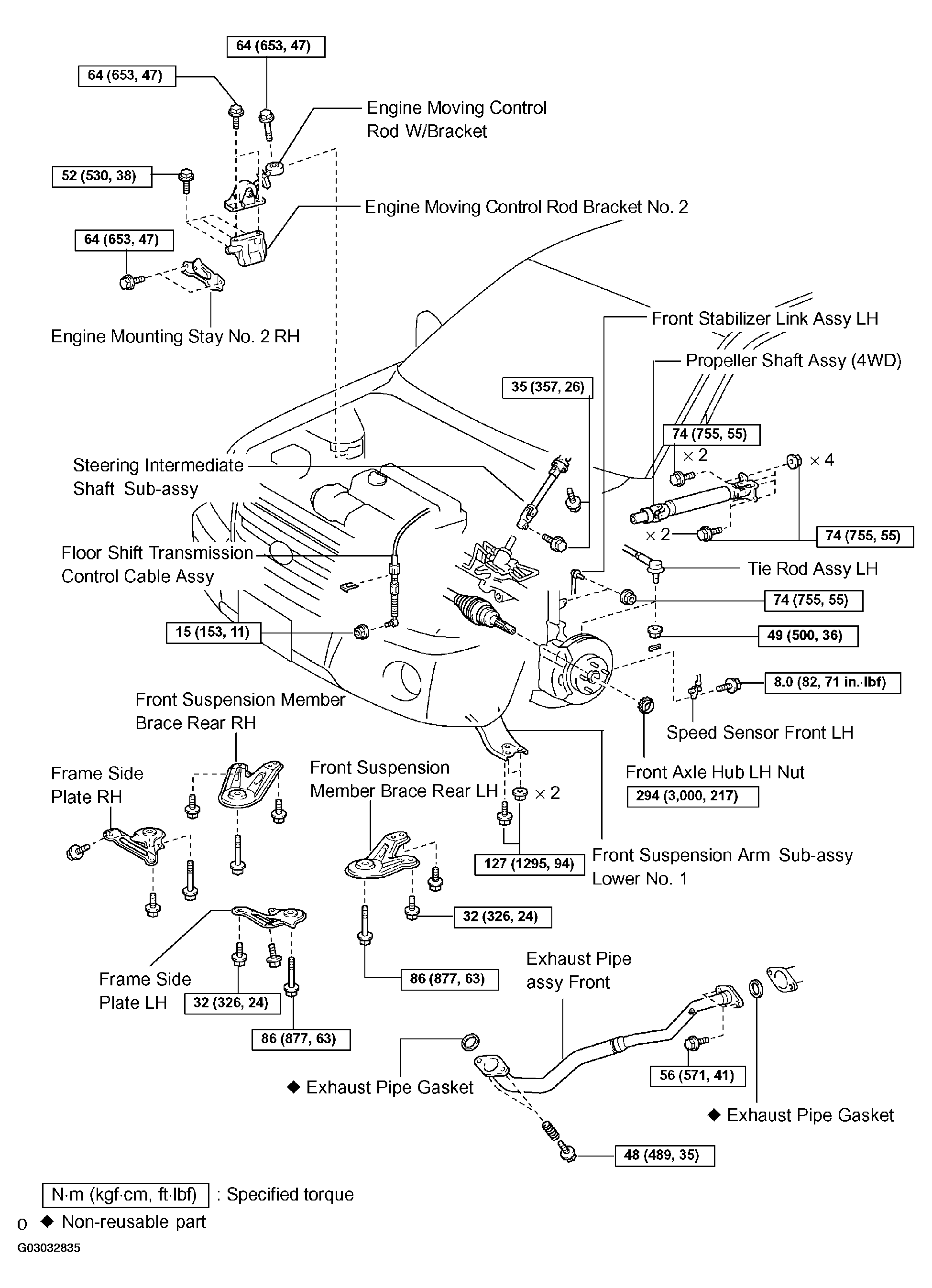

Fig 6: Identifying Partial Engine Assembly Components (2AZ-FE) (6 Of 9)

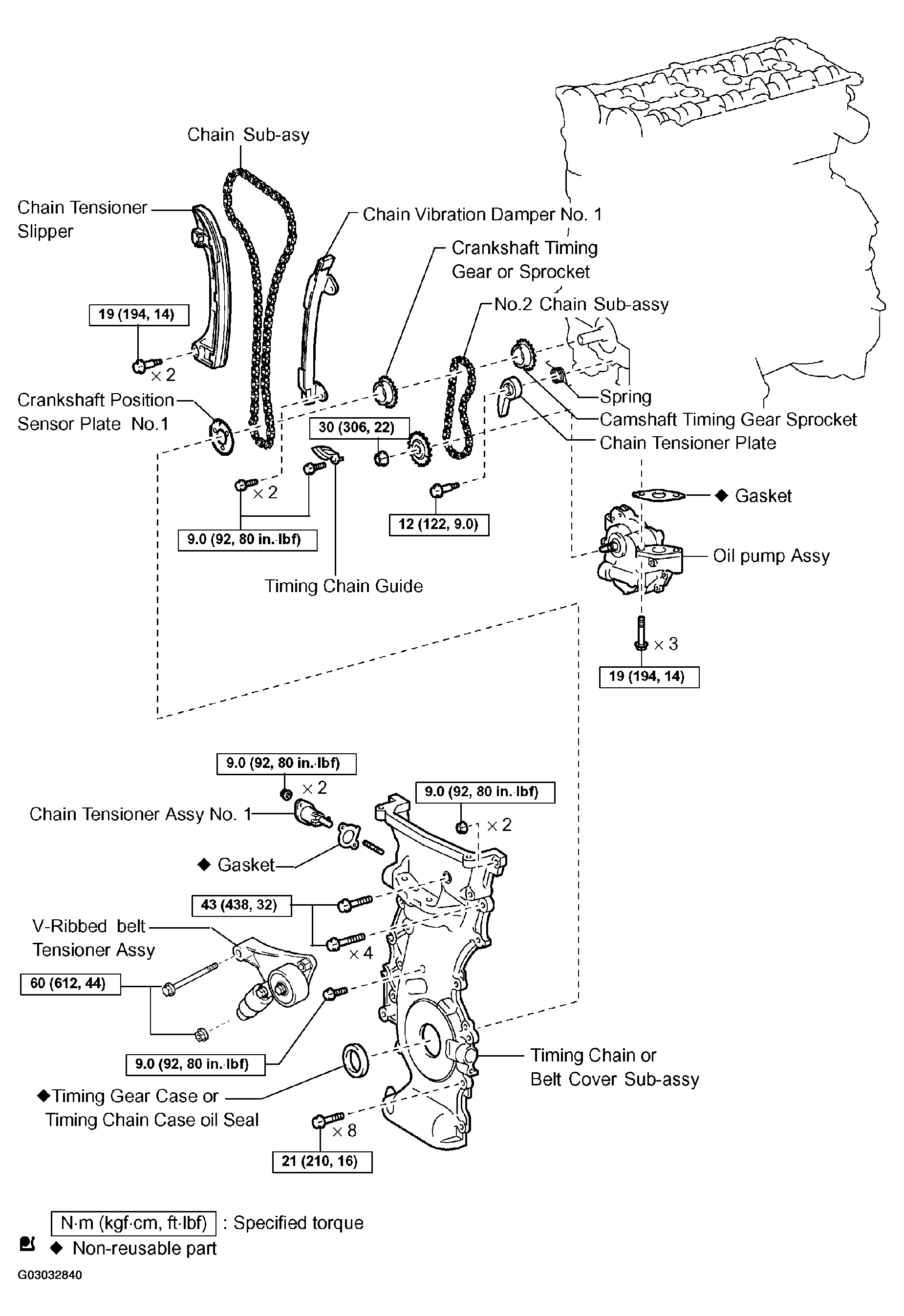

Fig 7: Identifying Partial Engine Assembly Components (2AZ-FE) (7 Of 9)

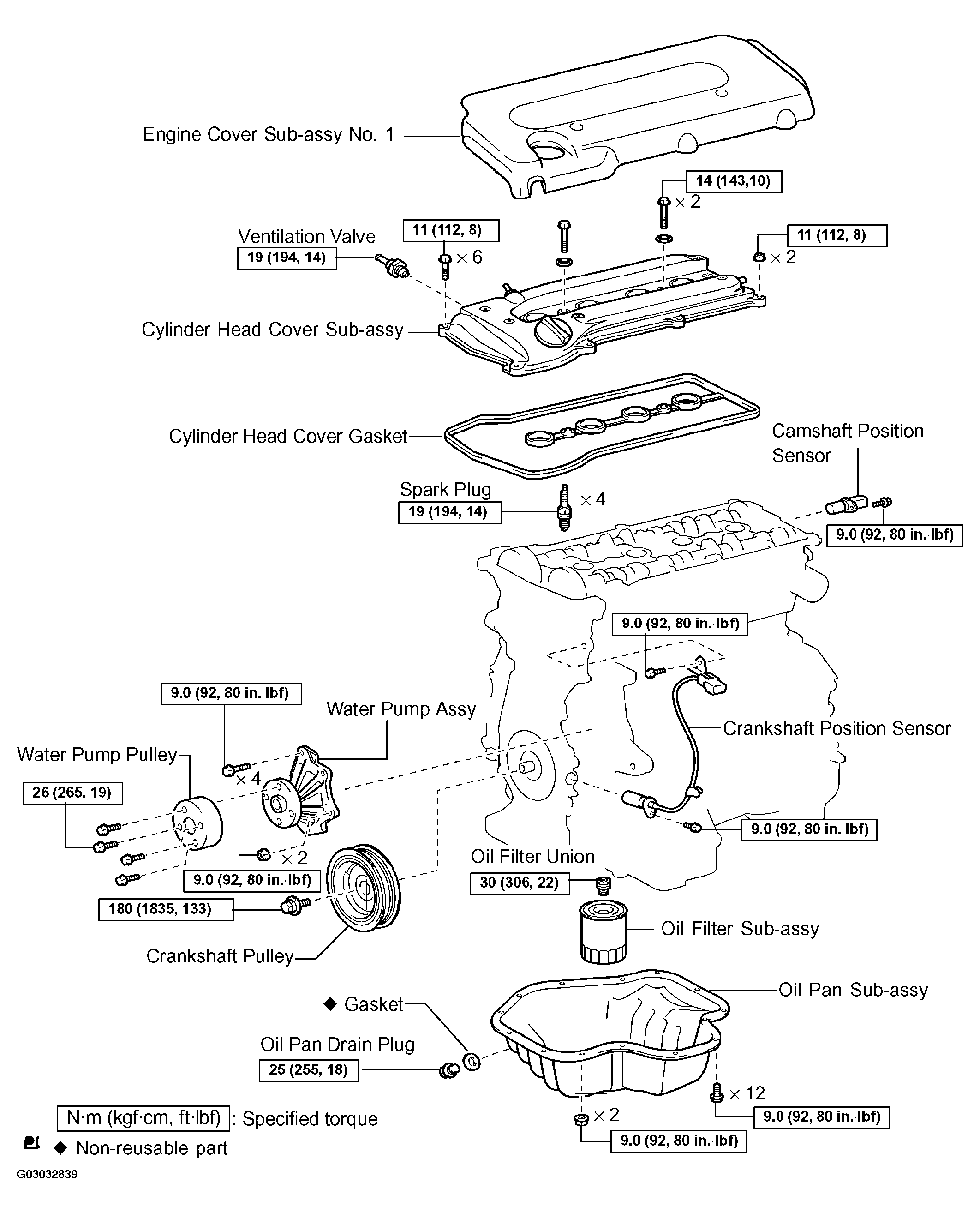

Fig 8: Identifying Partial Engine Assembly Components (2AZ-FE) (8 Of 9)

Fig 9: Identifying Partial Engine Assembly Components (2AZ-FE) (9 Of 9)
