Engine Rear Oil Seal (2AZ-FE): Replacement

HINT:

Remove and install the transaxle after removing the engine assy w/ transaxle.

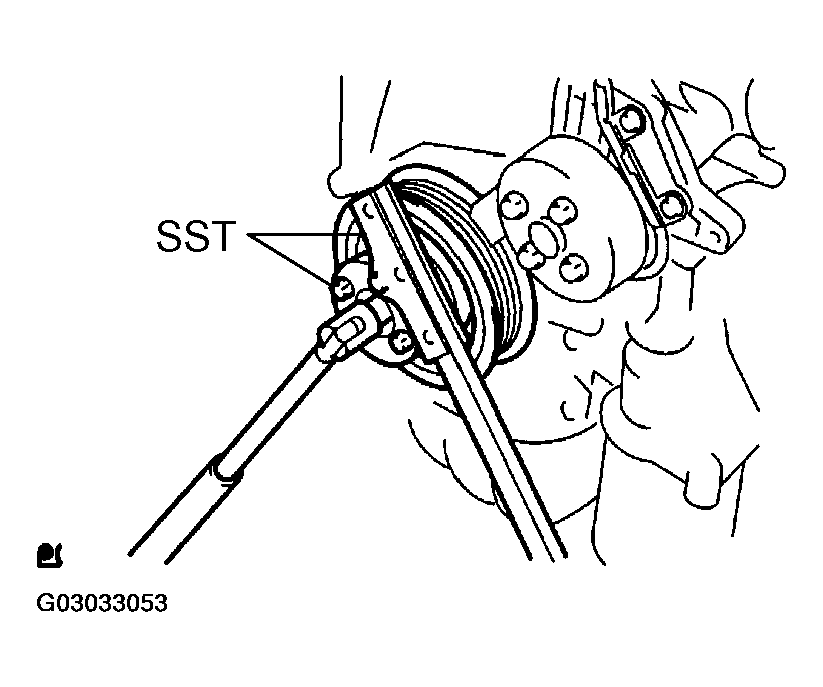

1. Using SST, fix the crankshaft.
   1. SST 09213-54015 (91651-60855), 09330-00021
   Fig 1: Fixing Crankshaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

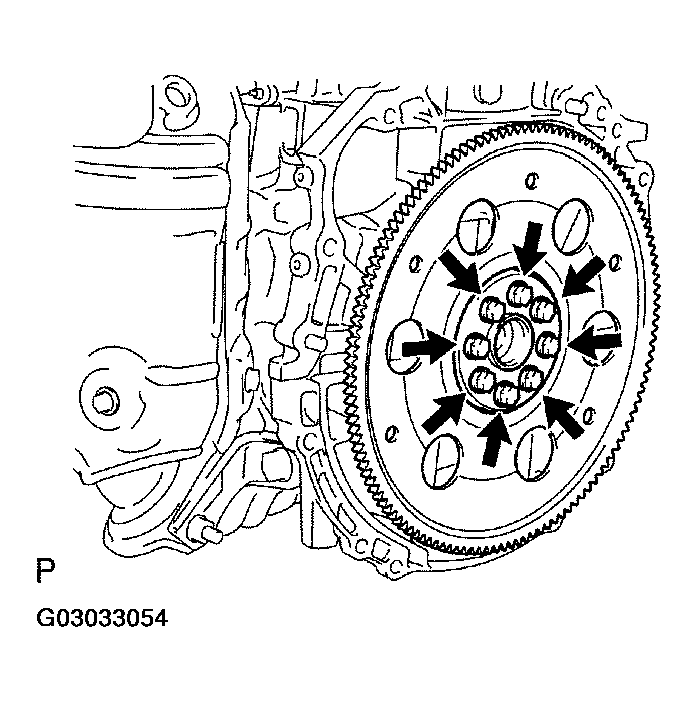

2. Remove the 8 bolts, rear spacer, drive plate and front spacer.

Fig 2: Removing Drive Plate & Ring Gear Sub-assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

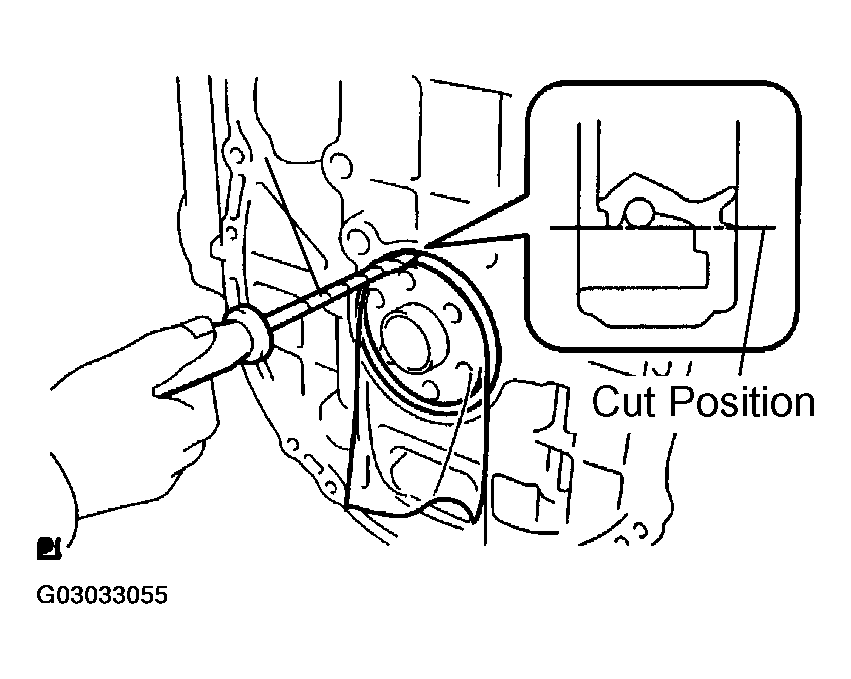

1. Using a knife, cut through the oil seal lip.
2. Using a screwdriver with its tip taped, pry out the oil seal.

Fig 3: Removing Engine Rear Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply MP grease to a new oil seal lip.
   NOTE: Keep the lip free from foreign matter.

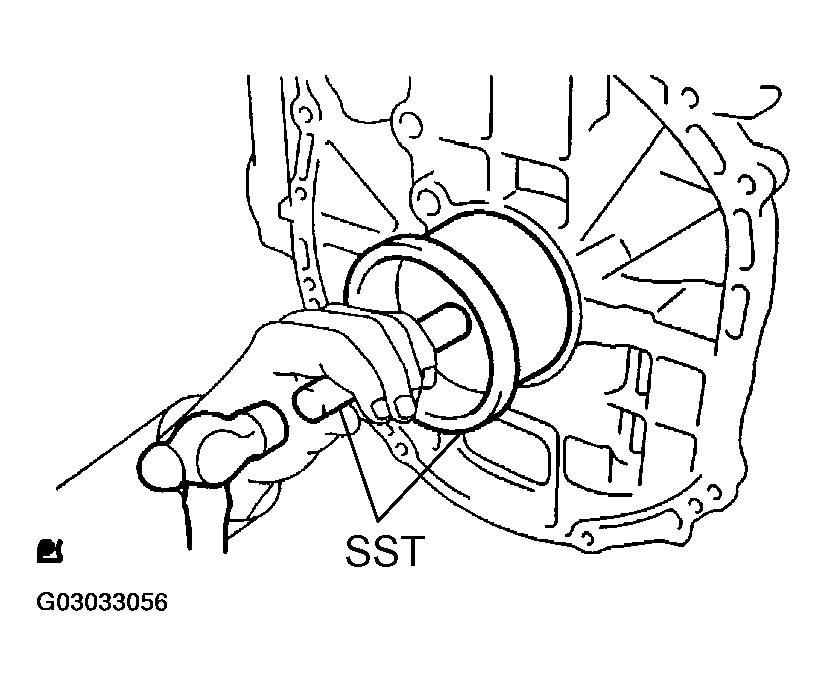

2. Using SST and a hammer, tap in the oil seal until its surface is flush with the rear oil seal retainer edge.

SST 09223-15030, 09950-70010 (09951-07100)

Fig 4: Installing Engine Rear Oil Seal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using SST, fix the crankshaft.

   SST 09213-54015 (91651-60855), 09330-00021

   Fig 5: Fixing Crankshaft

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clean the bolt and the bolt hole.
3. Apply adhesive to 2 or 3 threads of the bolt end.
   1. Adhesive:
   2. Part No. 08833-00070, THREE BOND or equivalent

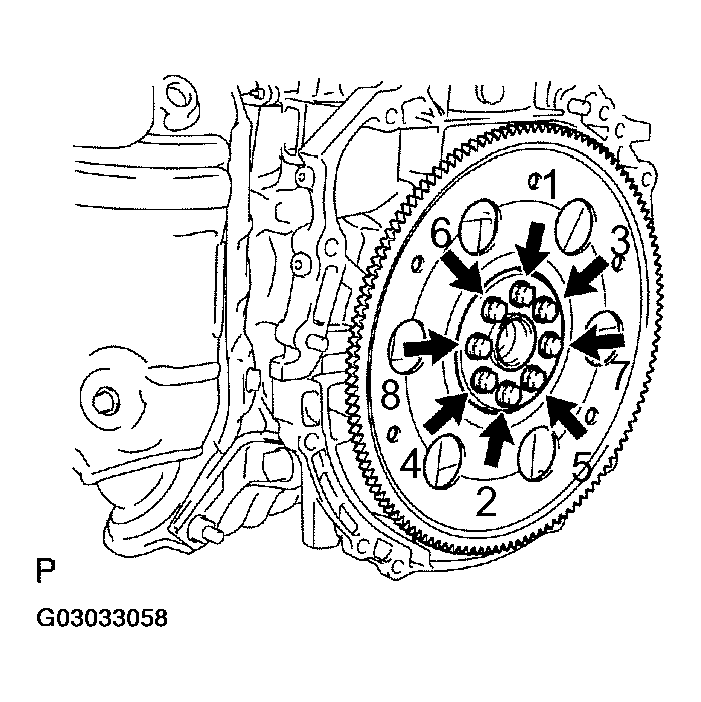

4. Install the front spacer, drive plate and rear spacer with the 8 bolts. Uniformly tighten the bolts in the sequence shown in the illustration.
   1. Torque: 98 N m (1,000 kgf cm, 72 ft Ibf)

Fig 6: Installing Drive Plate & Ring Gear Sub-assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
