Cylinder Block ASSY (2AZ-FE): Components

WARNING: This page is about a different variant/trim than selected.

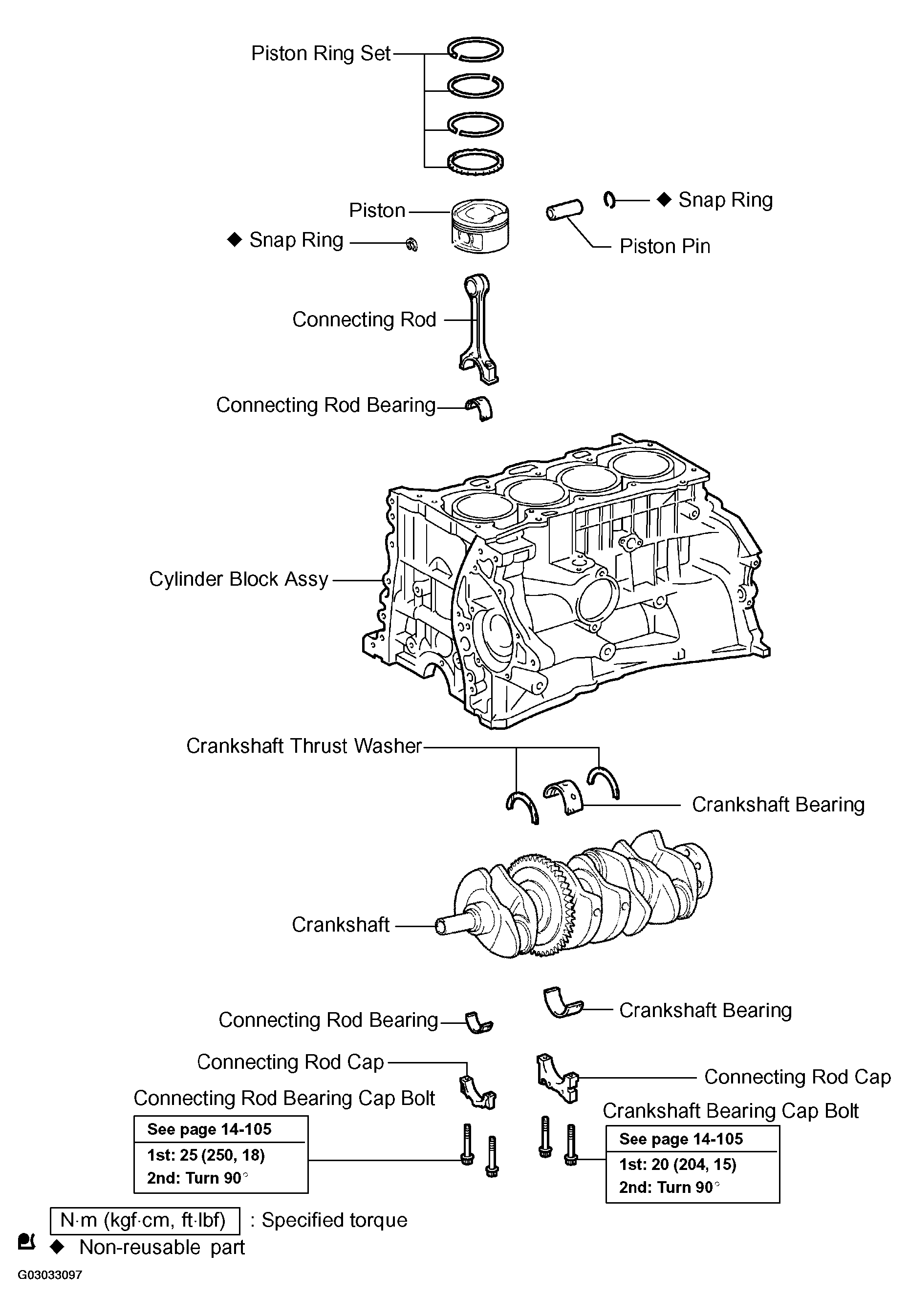

Fig 1: Identifying Cylinder Block Assy Components (2AZ-FE)
G03033097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
