System Diagram
WARNING: This page is about a different variant/trim than selected.

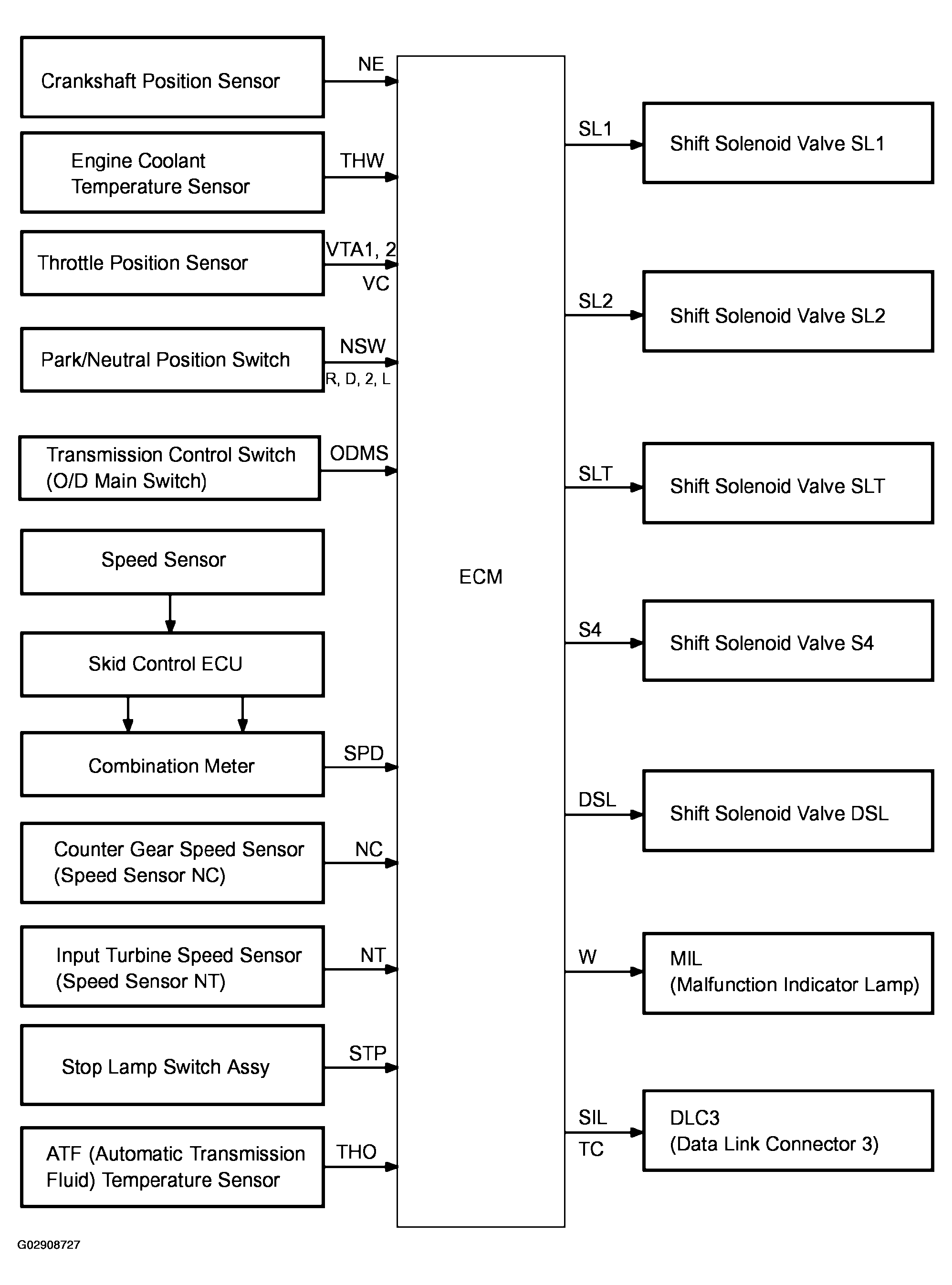

The configuration of the electronic control system in the U241E/U140F automatic transaxles is as shown in the following chart.
