Pattern Select Switch Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

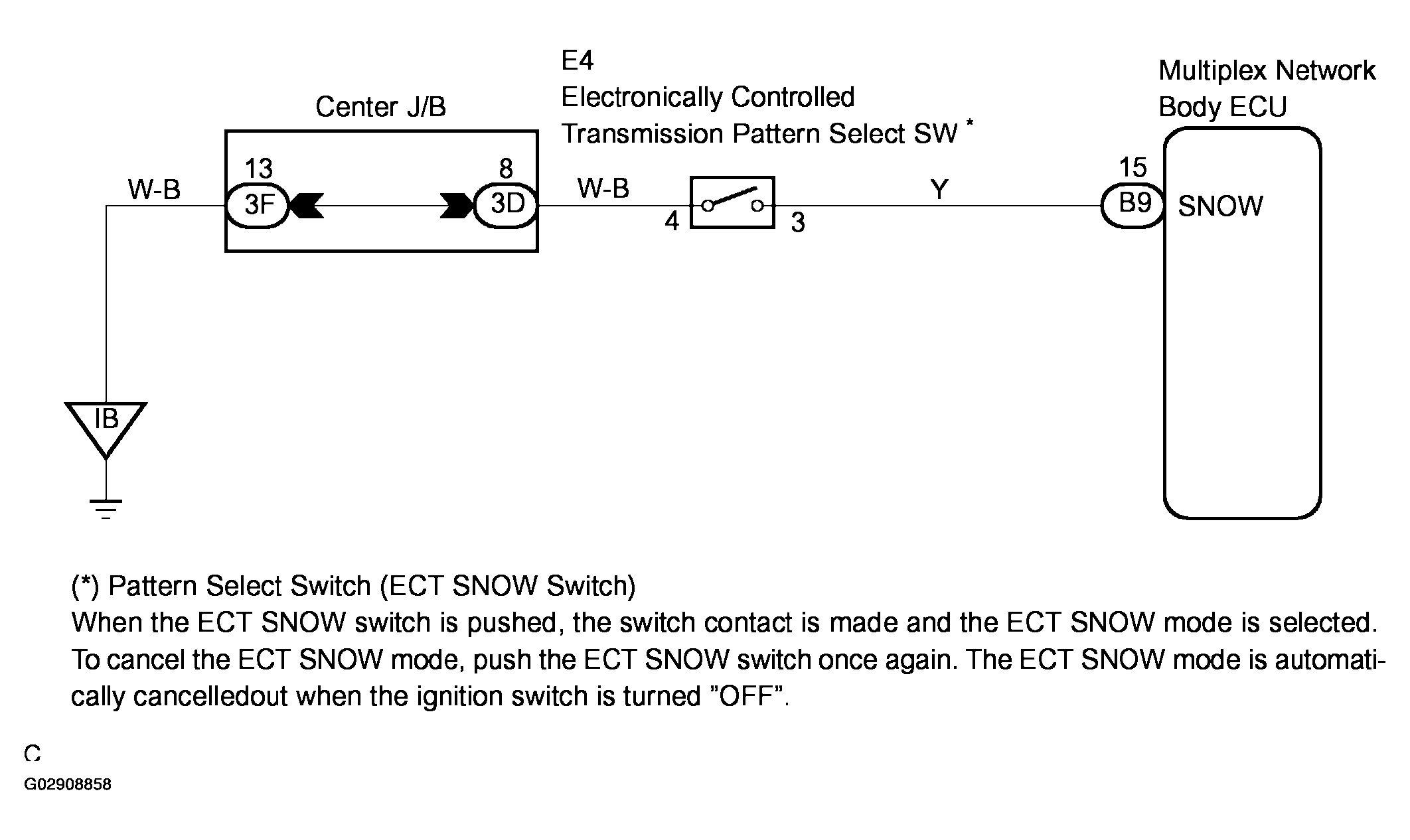

Fig 1: Pattern Select Switch Circuit Wiring Diagram
G02908858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
