Manual Shifting Test

HINT:

By this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transaxle.

1. Disconnect the transmission wire connector.
2. Inspect the manual driving operation.

   Check that the shift and gear positions correspond to the table below.

   While driving, shift through the L, 2 and D positions. Check that the gear change corresponds to the shift position.

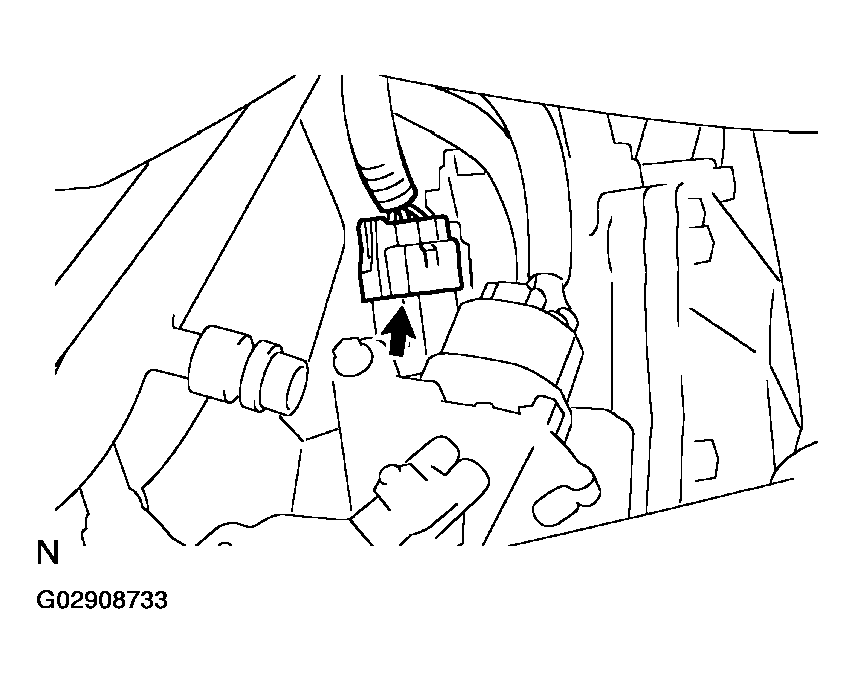

   Fig 1: Disconnecting Transmission Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TRANSMISSION WIRE CONNECTOR



   Shift Position	Gear Position
   D	3rd
   2	3rd
   L	3rd
   R	Reverse
   P	Pawl Lock

   HINT:

   If the gear positions of the L, 2 and D are difficult to distinguish, do the following road test (see ROAD TEST ).

   If any abnormality is found in the above test, the problem is in the transaxle itself.

3. Connect the transmission wire connector.
4. Clear the DTC (see DTC CHECK/CLEAR ).
