List Of Disable A Monitor

WARNING: This page is about a different variant/trim than selected.

HINT:

This table indicates ECM monitoring status for the items in the upper columns if the DTCs in each line on the left are being set.

As for the "X" mark, when the DTC on the left is stored, detection of the DTC in the upper column is not performed.

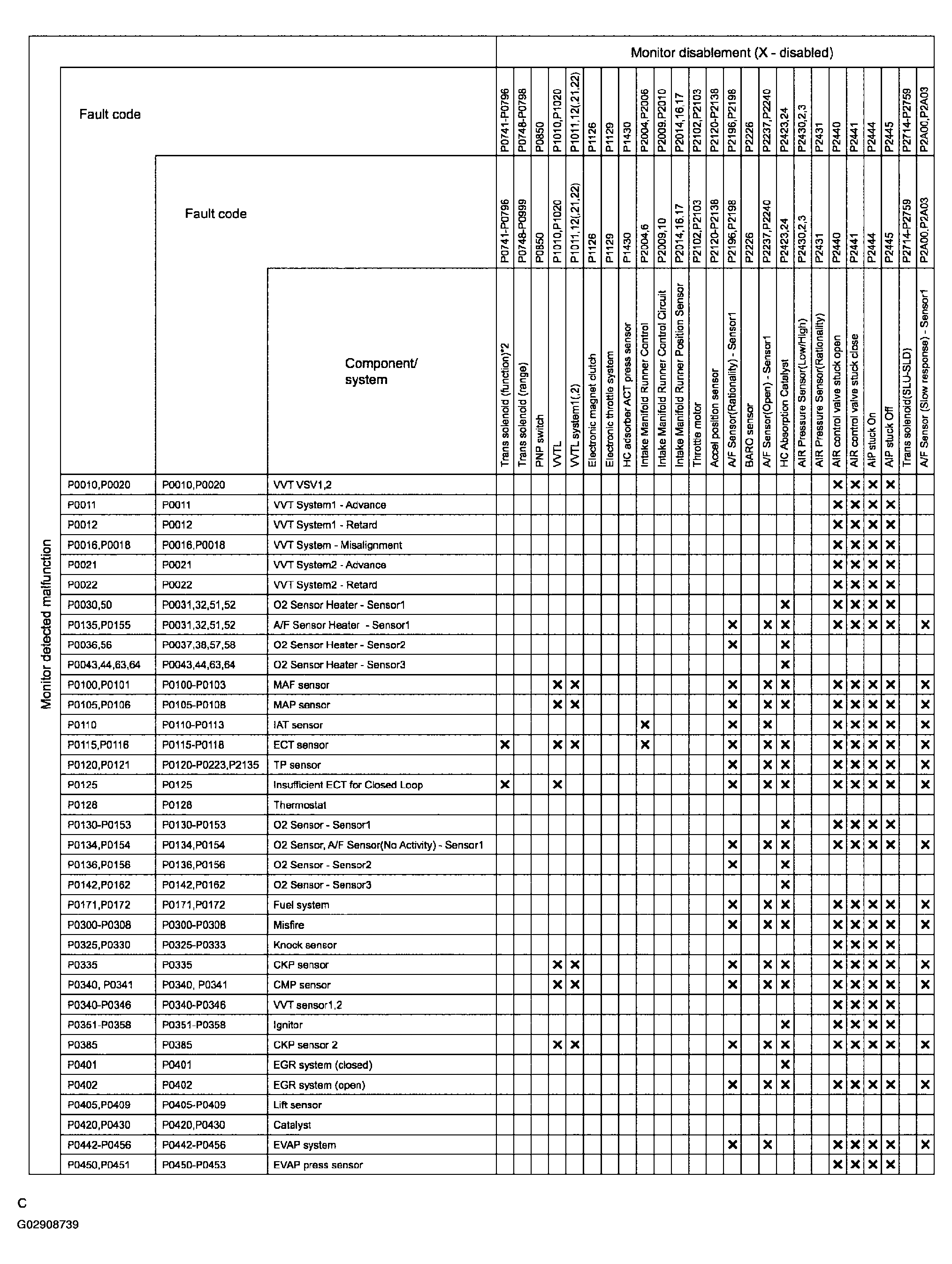

Fig 1: Disable Monitor List (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

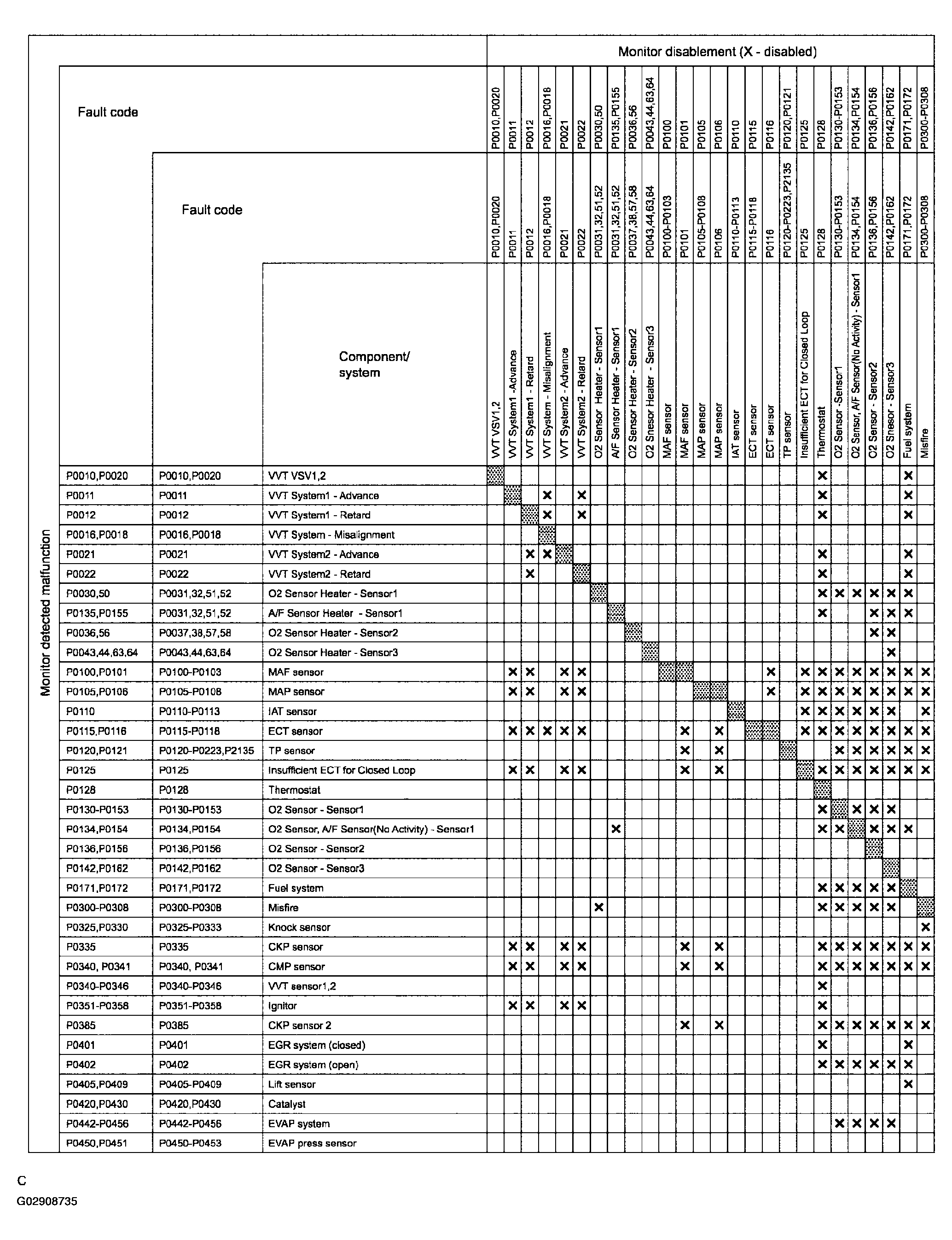

Fig 2: Disable Monitor List (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

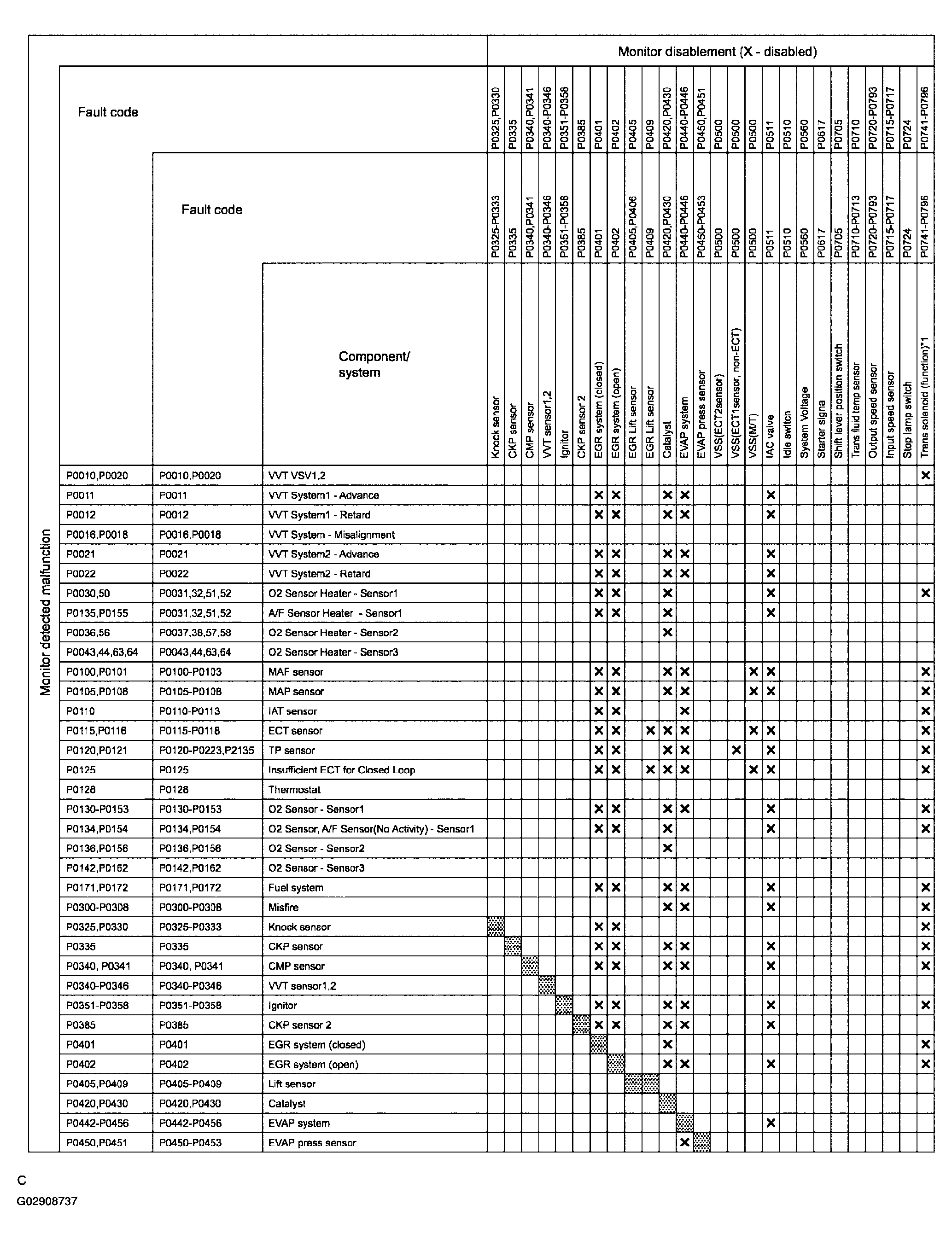

Fig 3: Disable Monitor List (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

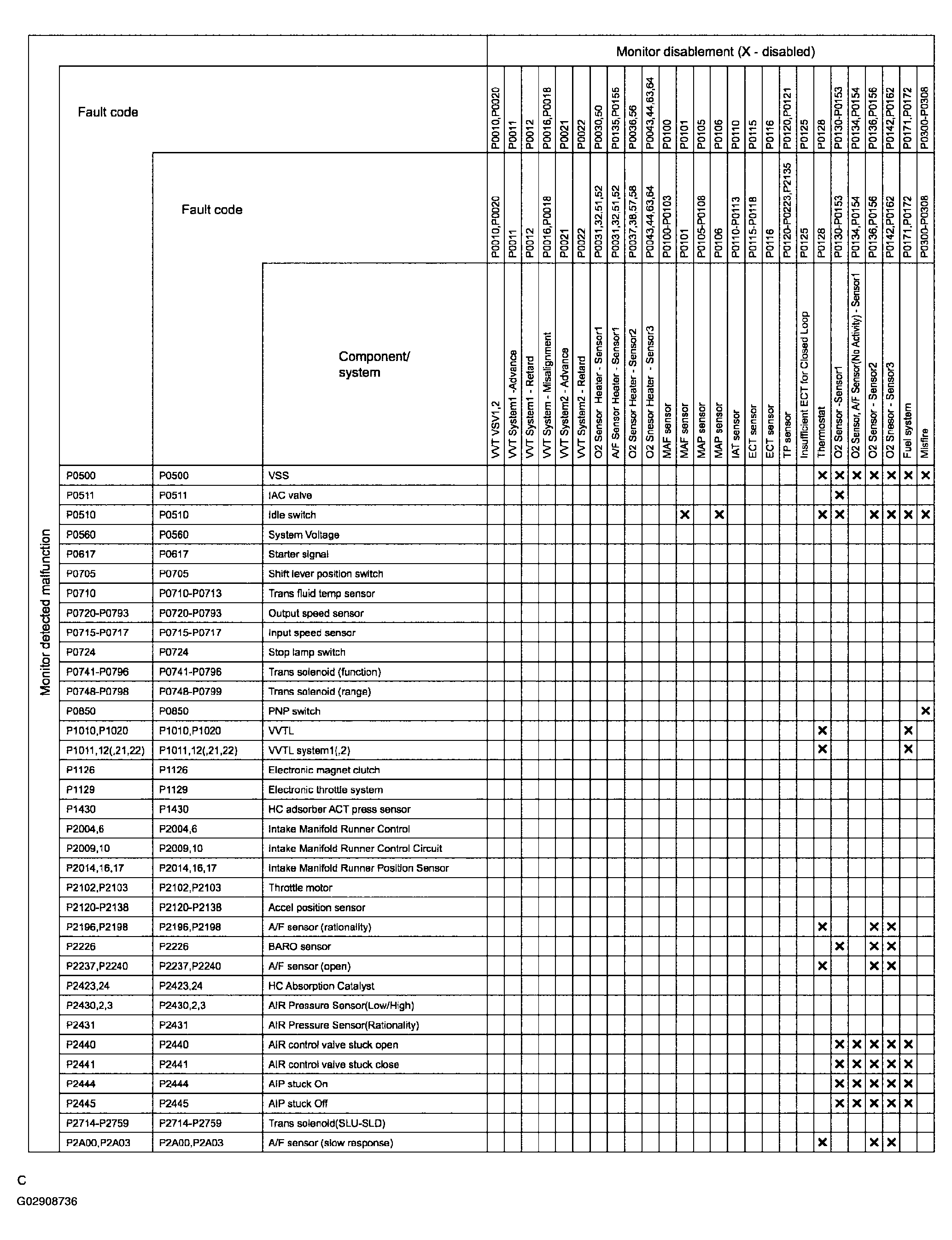

Fig 4: Disable Monitor List (4 Of 6)

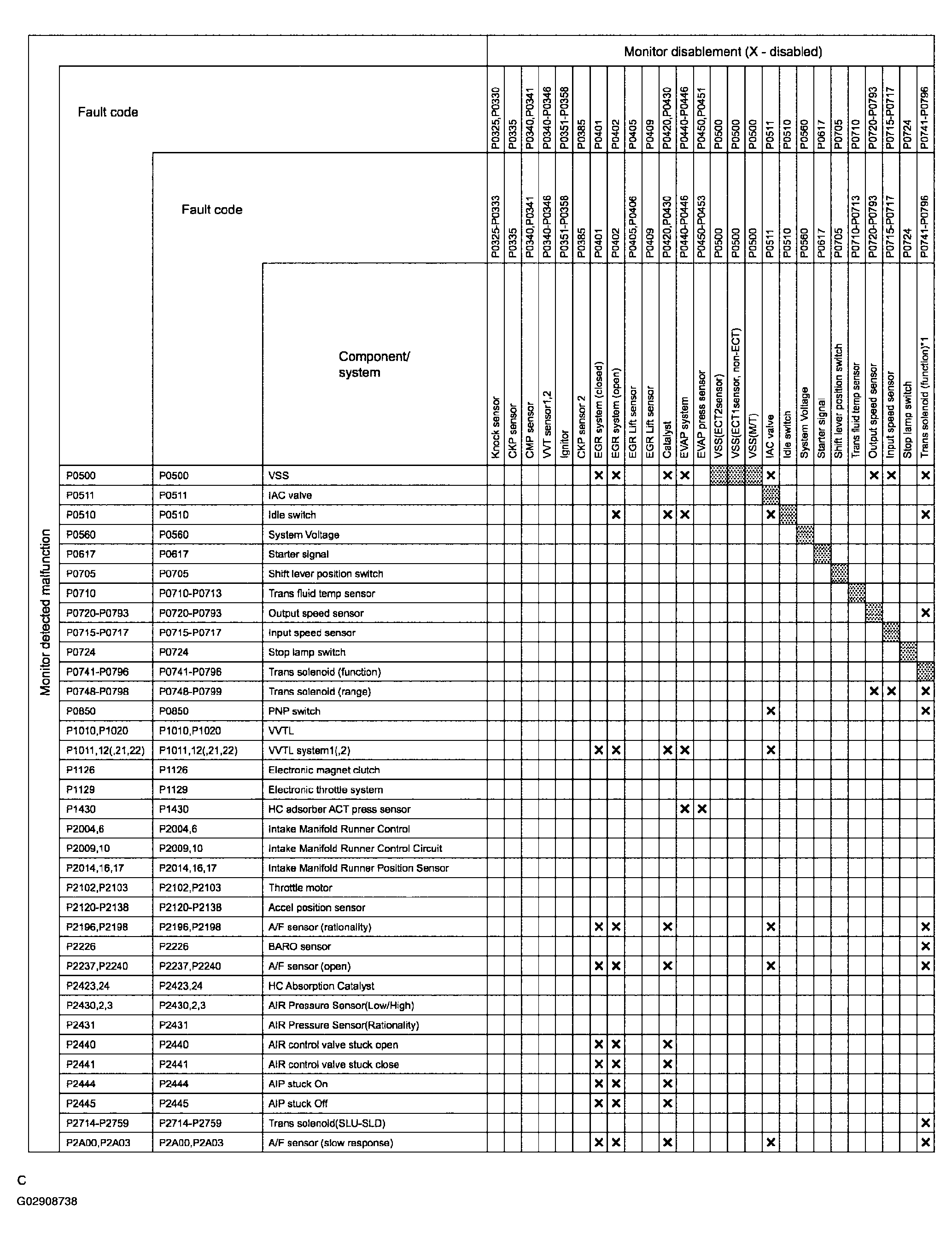

Fig 5: Disable Monitor List (5 Of 6)

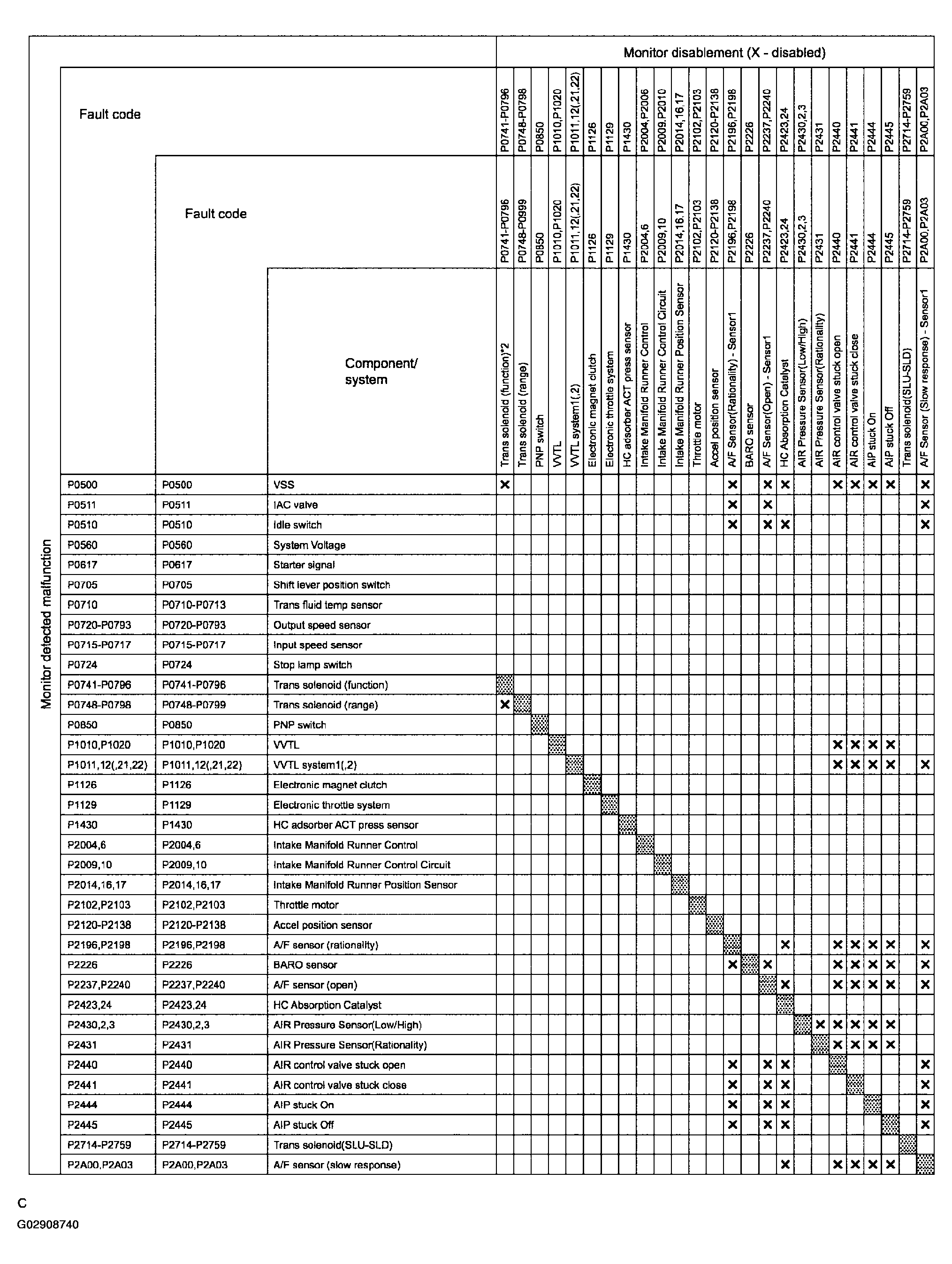

Fig 6: Disable Monitor List (6 Of 6)
