DTC P2769, P2770: Torque Converter Clutch Solenoid Circuit Low/High (Shift Solenoid Valve DSL): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

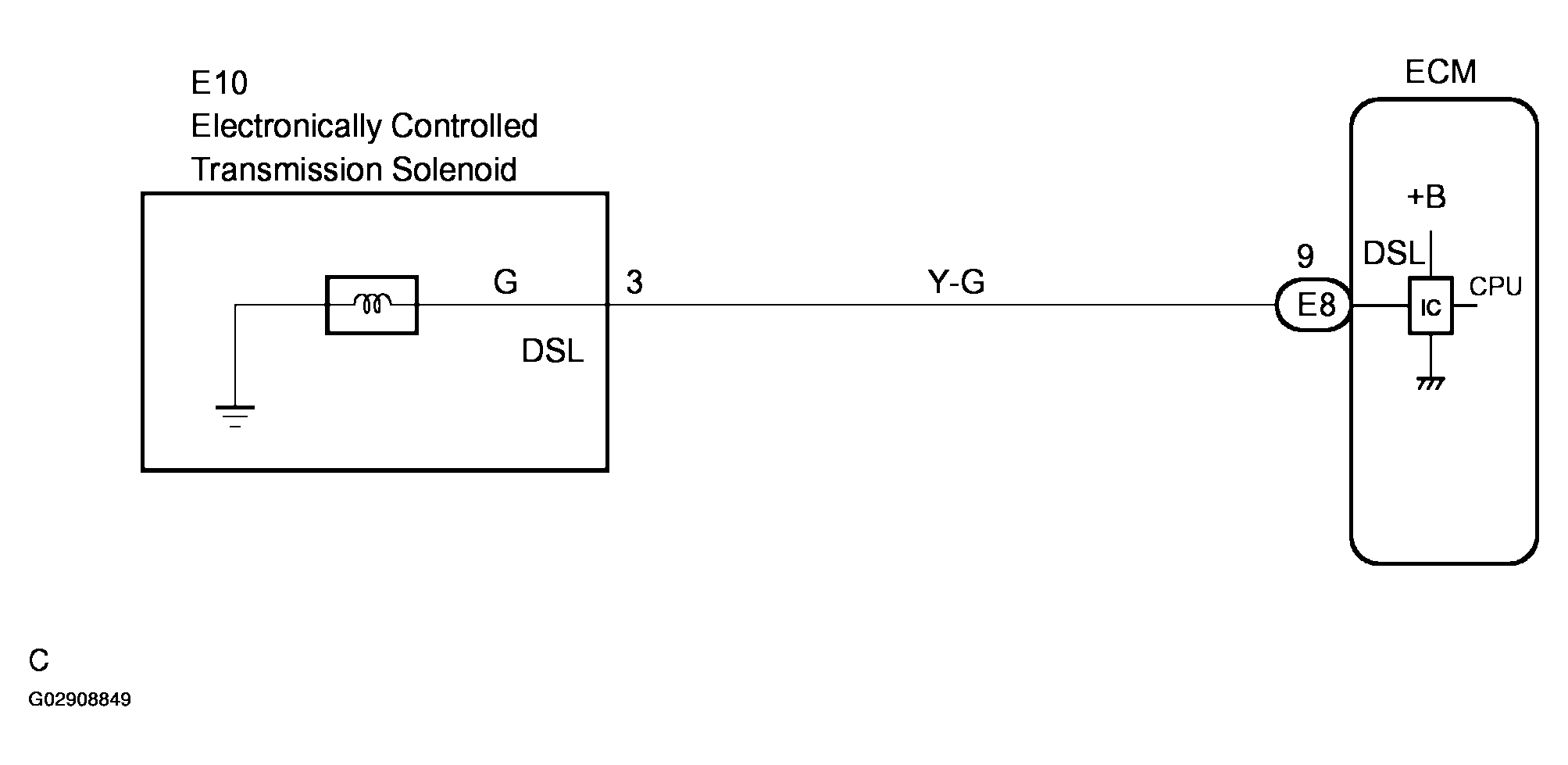

Fig 1: Identifying Wiring Diagram
G02908849Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
