Inspection Procedure
WARNING: This page is about a different variant/trim than selected.
- INSPECT TRANSMISSION WIRE (DSL)
- Disconnect the transmission wire connector from the transaxle.
- Measure the resistance according to the value (s) in the table below.
Standard:
SPECIFIED CONDITIONTester Connection Specified Condition 20°C (68°F) 3 - Body ground 11 to 13Ω
- NG: Go to step 3
- OK: GO TO NEXT STEP.
- CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)
- Connect the transmission wire connector.
- Disconnect the ECM connector.
- Measure the resistance according to the value (s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
SPECIFIED CONDITIONTester Connection Specified Condition 20°C (68°F) E8 - 9 (DSL) - Body ground 11 to 13ohm;
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
- OK: REPLACE ECM (See REPLACEMENT )
- INSPECT SHIFT SOLENOID VALVE (DSL)
- Remove the shift solenoid valve DSL.
- Measure the resistance according to the value (s) in the table below.
Standard:

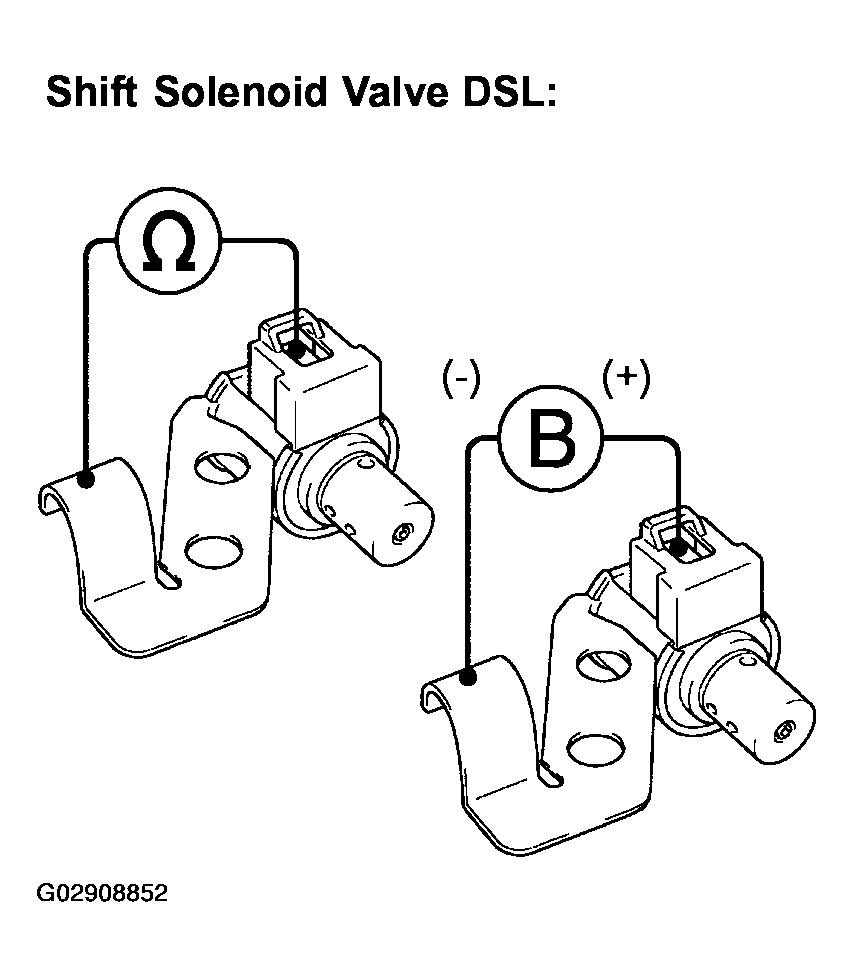

SPECIFIED CONDITIONTester Connection Specified Condition 20°C (68°F) Solenoid Connector (DSL) - Solenoid Body (DSL) 11 to 13Ω - Connect positive (+) lead to the terminal of solenoid connector, negative (-) lead to the solenoid body.
OK: The solenoid valve makes an operating noise.
- NG: REPLACE SHIFT SOLENOID VALVE (DSL)
- OK: REPAIR OR REPLACE TRANSMISSION WIRE (See REPLACEMENT )
