Circuit Description
WARNING: This page is about a different variant/trim than selected.

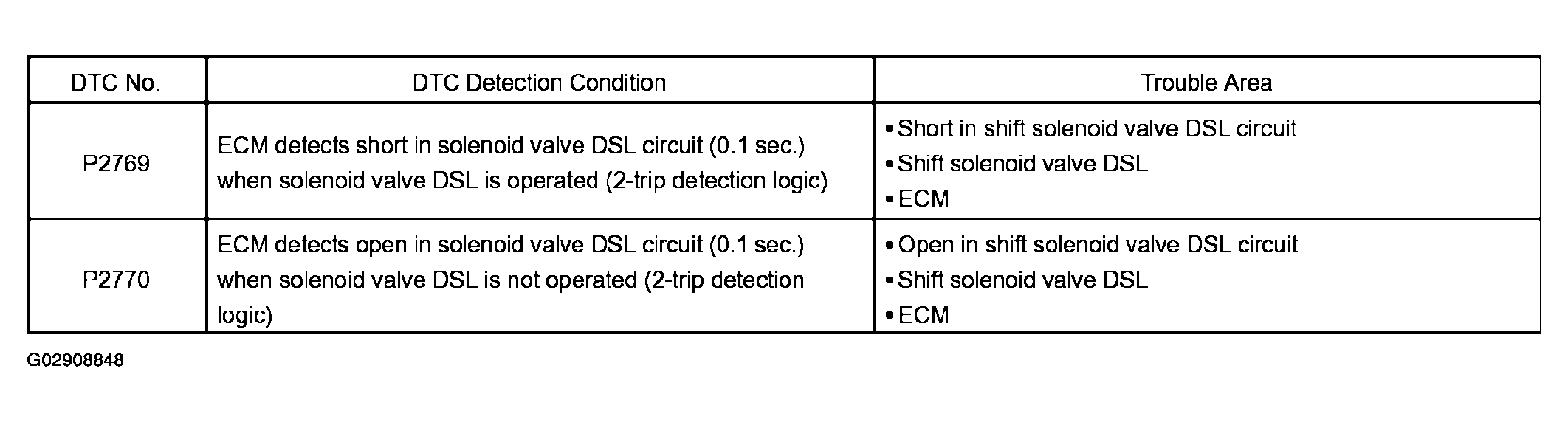

The shift solenoid valve DSL is turned "ON" and "OFF" by signals from the ECM in order to control the hydraulic pressure operation, the lock up relay valve, which then the controls operation of the lock up clutch.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
