DTC P2716: Pressure Control Solenoid "D" Electrical (Shift Solenoid SLT): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

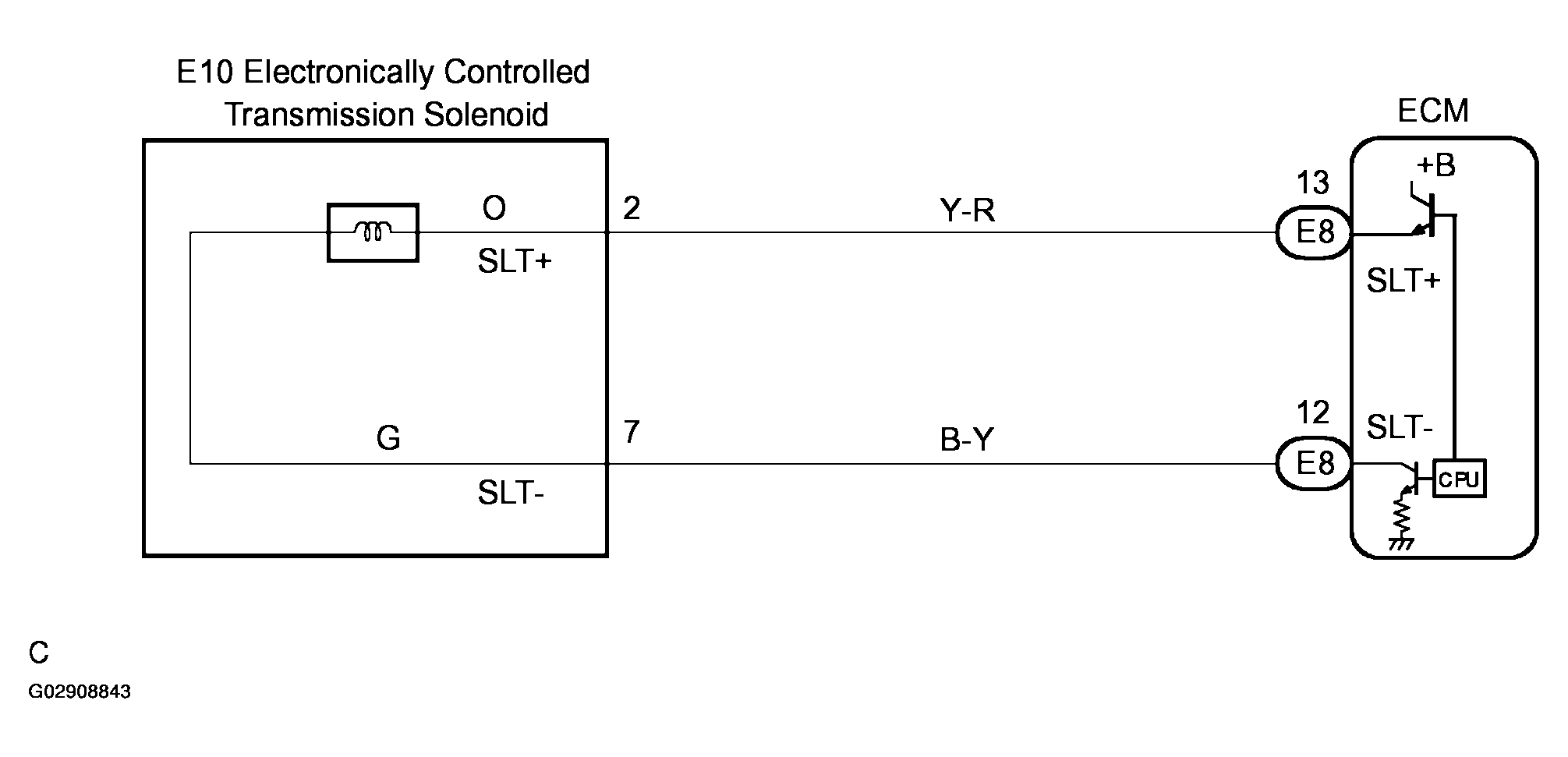

Fig 1: DTC P2716 Pressure Control Solenoid "D" Electrical (Shift Solenoid SLT) Wiring Diagram
G02908843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
