DTC P0793: Intermediate Shaft Speed Sensor "A": Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

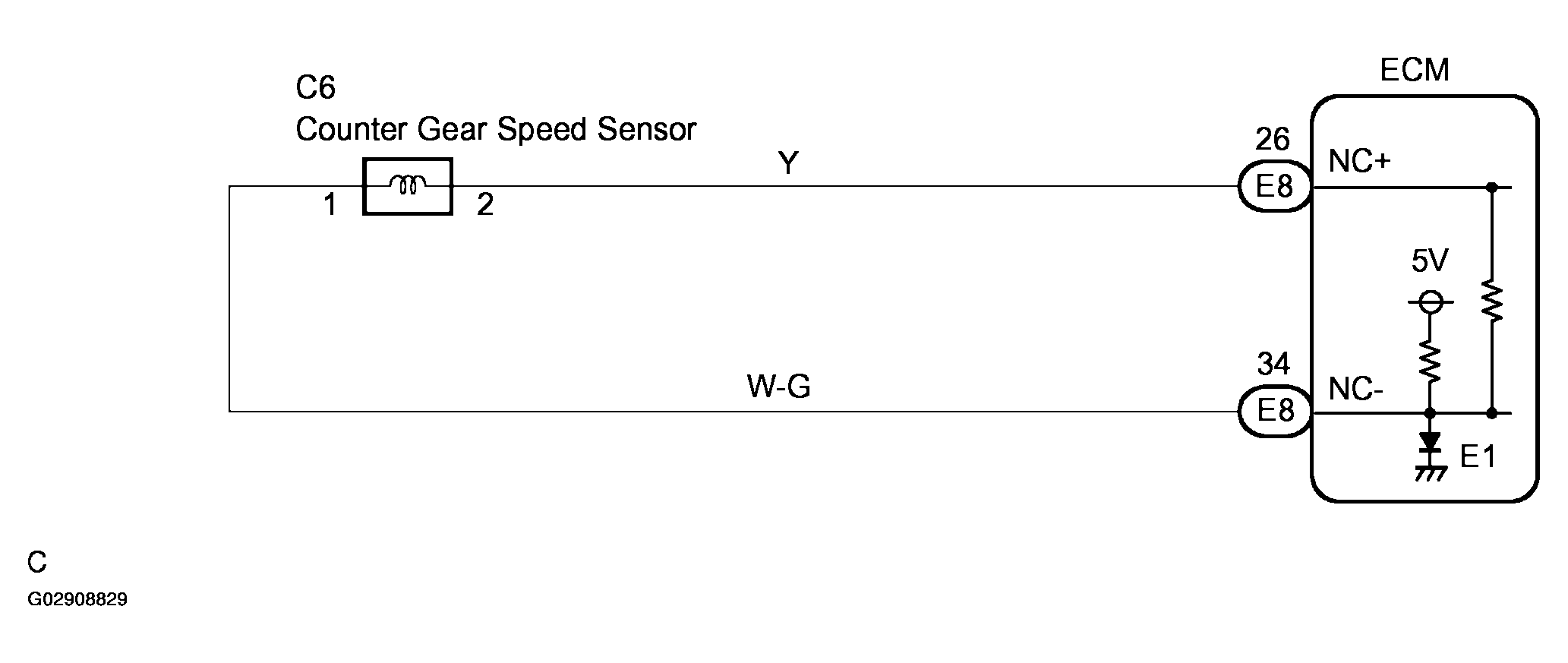

Fig 1: DTC P0793 Intermediate Shaft Speed Sensor "A" Wiring Diagram
G02908829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
