Circuit Description

This sensor detects the rotation speed of the counter gear. By comparing the counter gear speed signal (NC) with the direct clutch speed sensor signal (NT), the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure according to various conditions. Thus smooth gear shifting is performed.

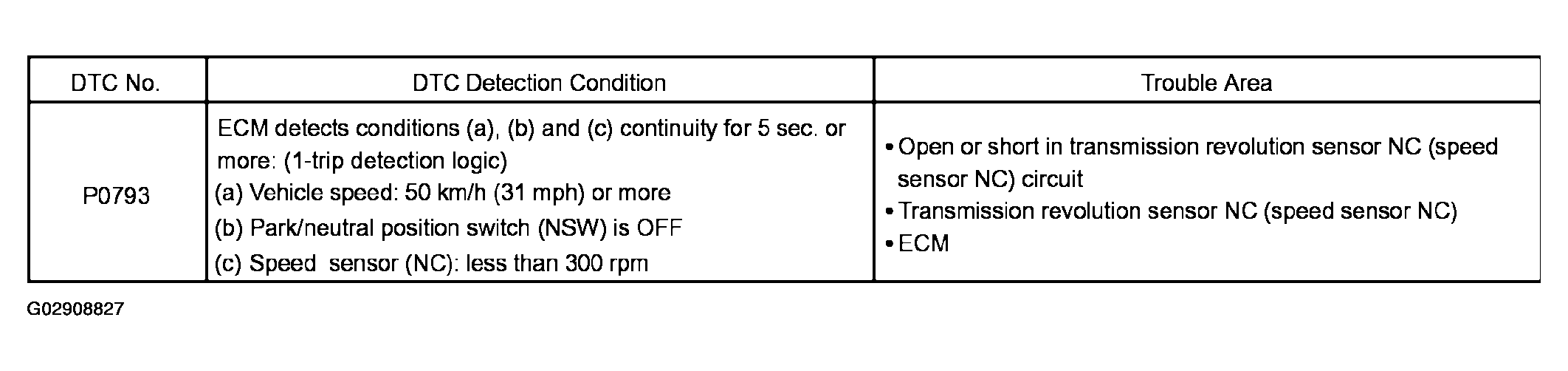

Fig 1: DTC Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference (Using an oscilloscope): Check the waveform between the terminals NC+ and NC- of the ECM connector.

Standard: Refer to the illustration.

Fig 2: Checking Waveform Between Terminals NC+ And NC- Of ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
