Section 2 (Automatic Transmission Electronic Controlled (ECT) - U241E/U140F - Diagnostics)
>>
DTC P0724: Brake Switch "B" Circuit High
>>
WARING Diagram
WARING Diagram
WARNING:
This page is about a different variant/trim than selected.

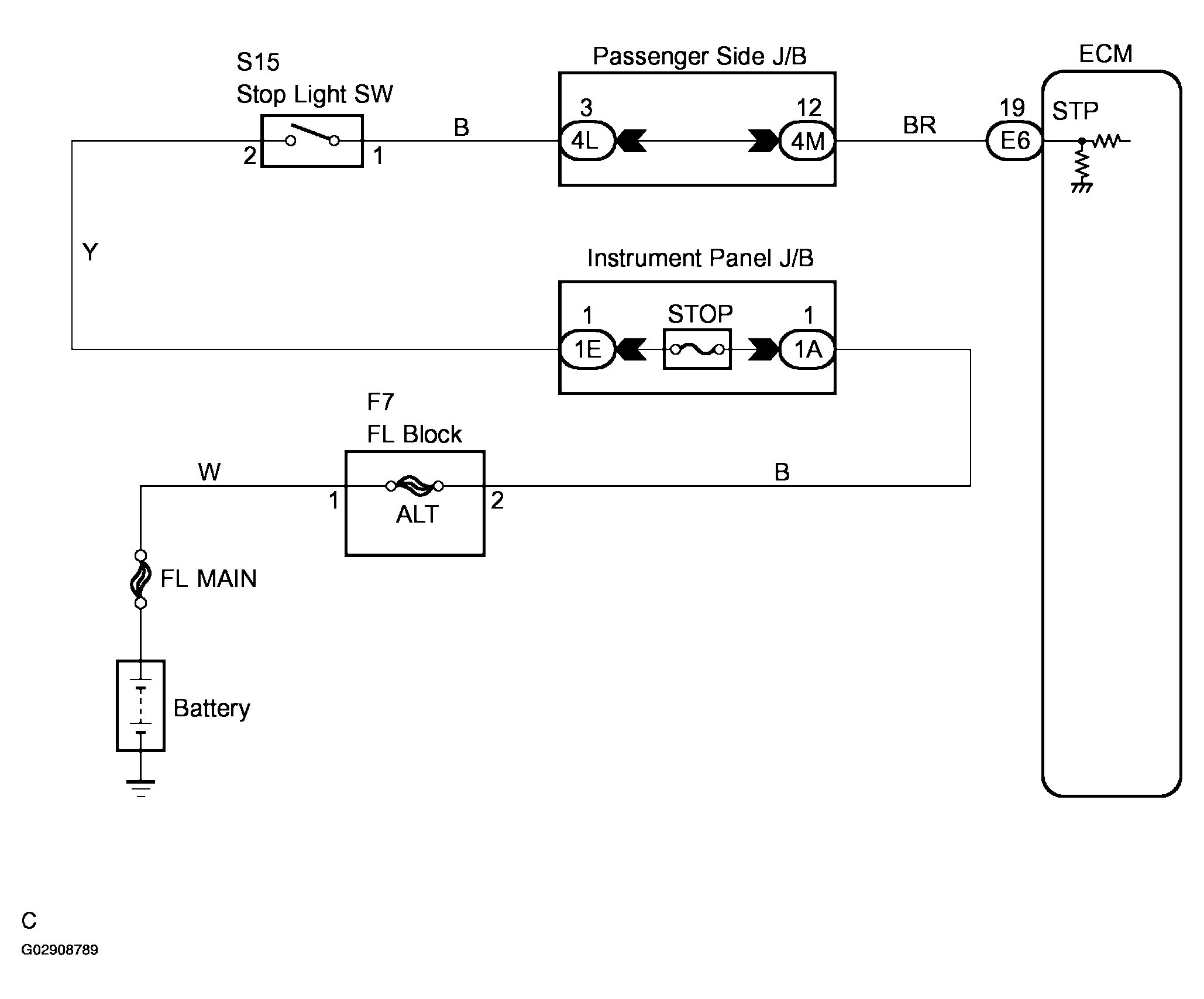

Fig 1: DTC P0724 Brake Switch "B" Circuit High Waring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
