DTC P0717: Turbine Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

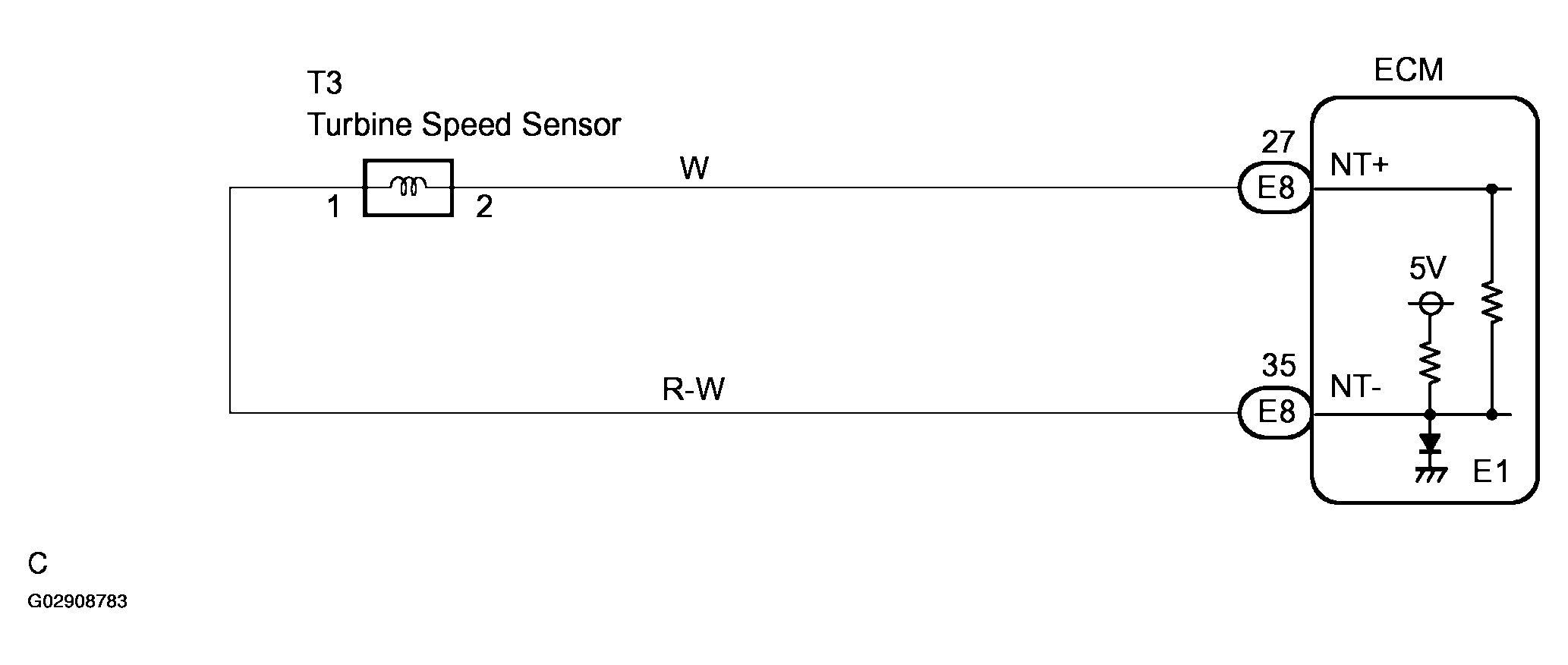

Fig 1: DTC P0717 Turbine Speed Sensor Circuit No Signal Wiring Diagram
G02908783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
