Circuit Description

This sensor detects the rotation speed of the input turbine. By comparing the input turbine speed signal (NT) with the counter gear speed sensor signal (NC), the ECM detects the shift timing of the gears and appropriately controls the engine torque and hydraulic pressure according to various conditions. Thus, providing smooth gear shift.

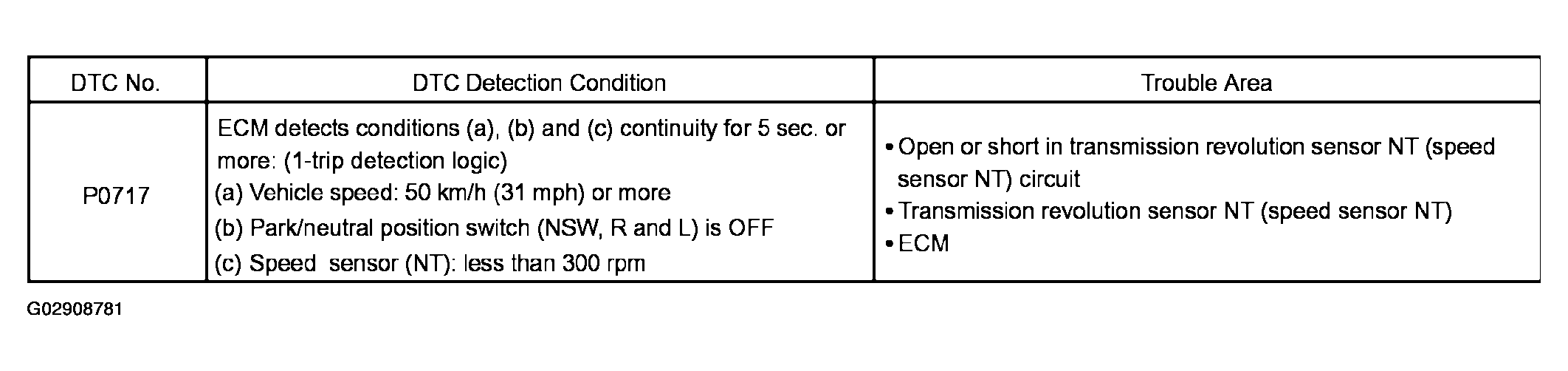

Fig 1: DTC Trouble Area Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Reference (Using an oscilloscope): Check the waveform between the terminals NT+ and NT - of the ECM connector.

Standard: Refer to the illustration.

Fig 2: Checking Waveform Between Terminals NT+ And NT - Of ECM Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
