DTC P0711: Transmission Fluid Temperature Sensor "A" Performance: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

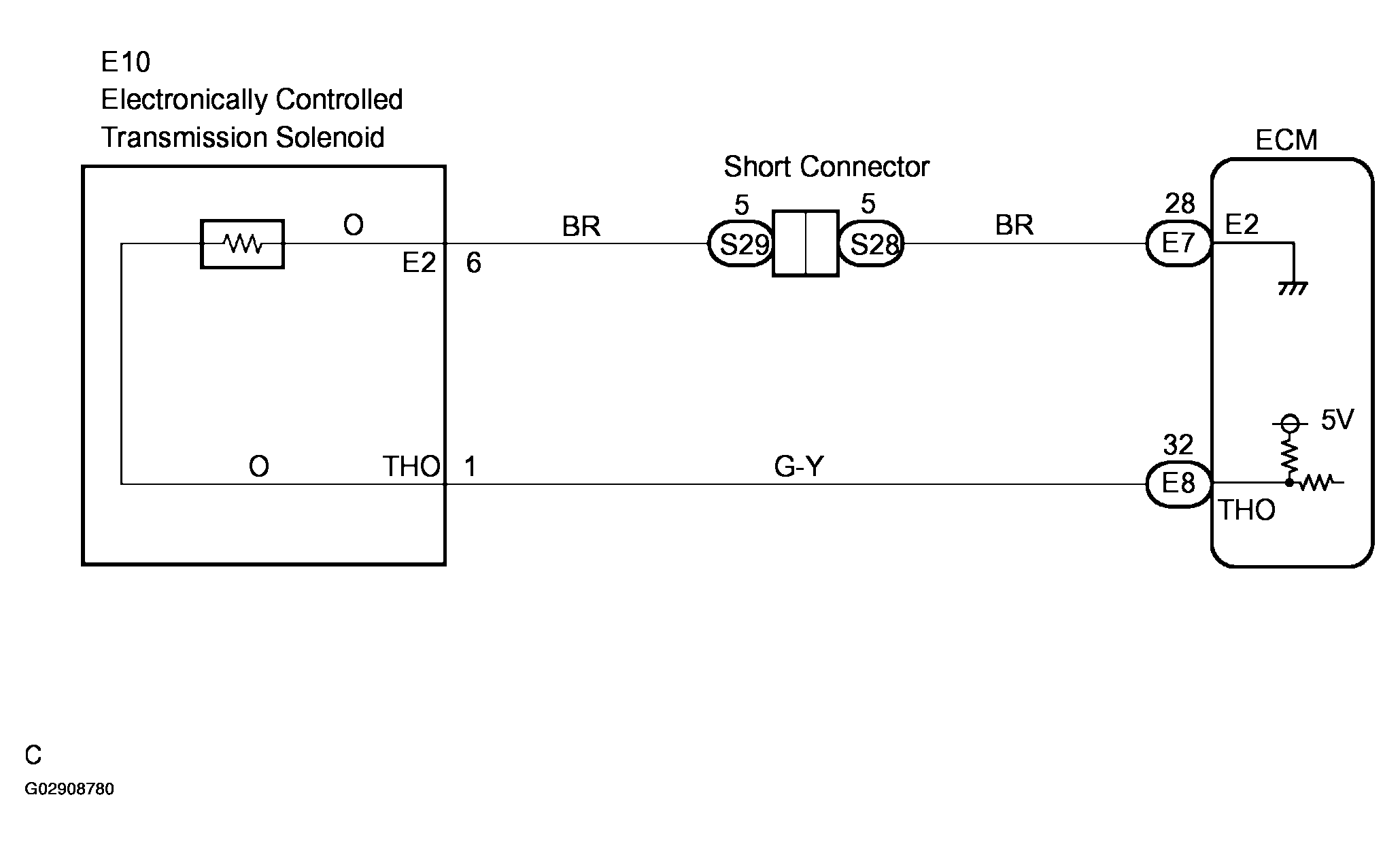

Fig 1: DTC P0711 Transmission Fluid Temperature Sensor Wiring Diagram
G02908780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
