Circuit Description
WARNING: This page is about a different variant/trim than selected.

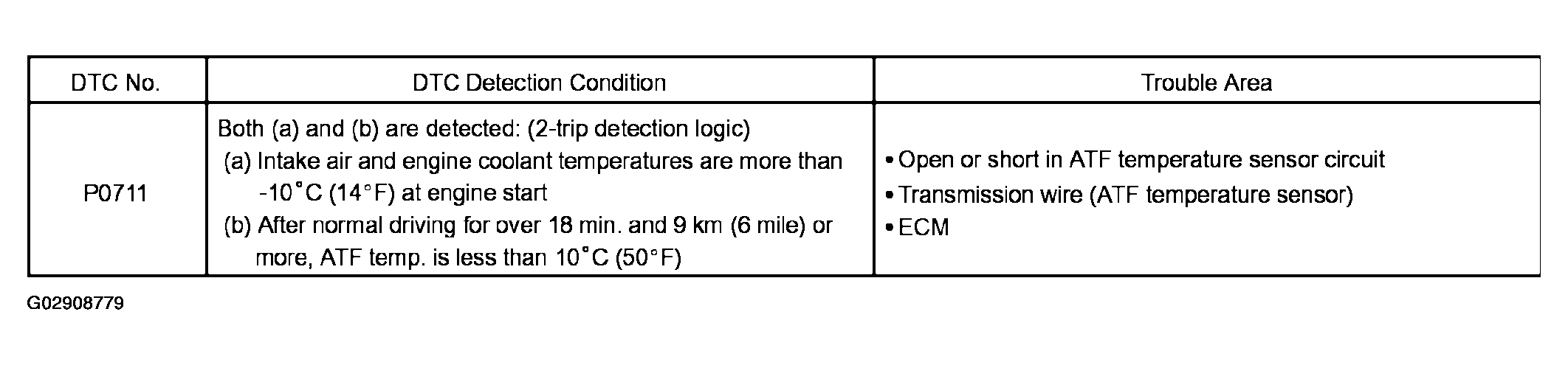

The ATF (Automatic Transmission Fluid) temperature sensor converts the fluid temperature into a resistance value which is input into the ECM.
